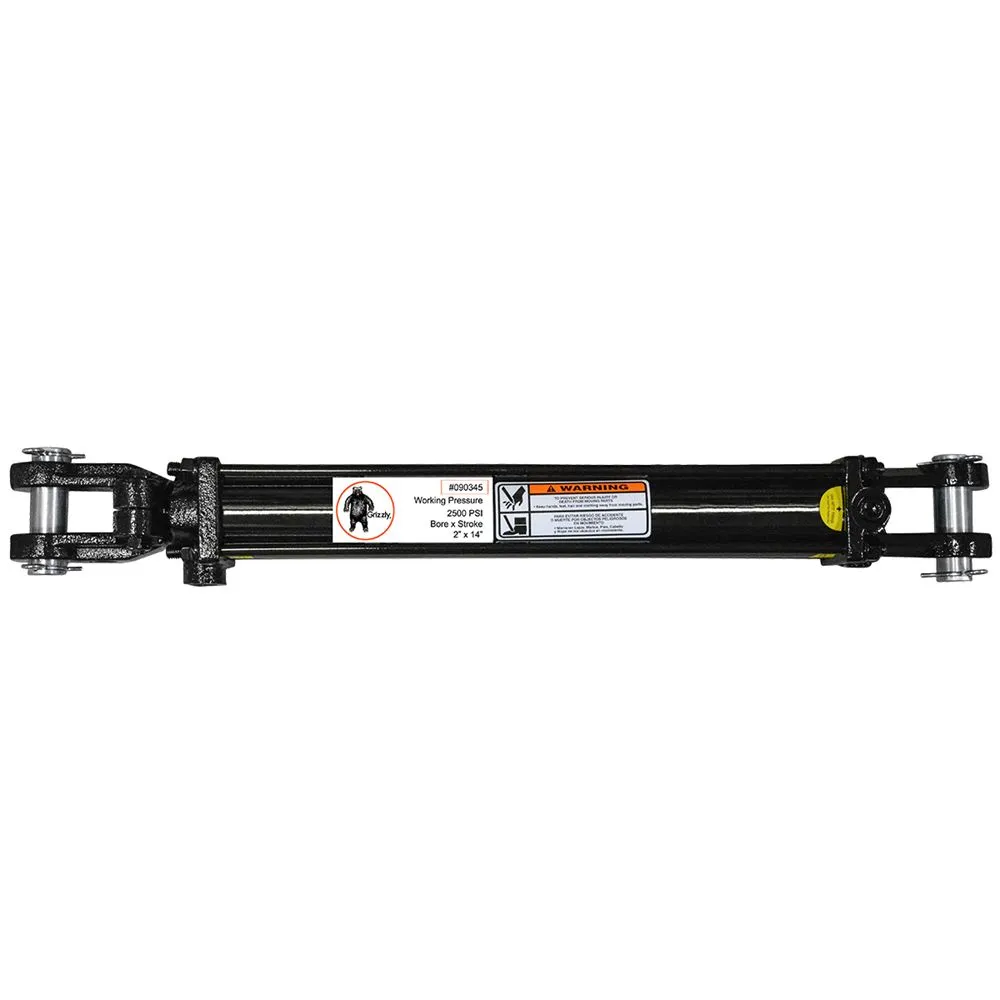

Grizzly® Hydraulic Cylinder, 2 In. Bore, 14 In. Stroke

#90345

$66.99 EA

This Grizzly® hydraulic cylinder can work as either a single or a double acting cylinder on agricultural applications. Measuring a 2 in. bore, 14 in. stroke, and 1-1/16 in. rod diameter. Other features include high tensile steel construction, grade 5 bolts and Nitrile seals.

-
+
Availability: In Stock -

Featuring rods manufactured from high tensile steel plated with zinc plating, and high tensile pins plated with hard chrome, these Grizzly® hydraulic cylinders will last for years. The retracted length of this hydraulic cylinder is 24-1/4" as measured from the center of one pin to the center of the other pin. The shaft measures 1-1/8 in., and the NPT ports are 3/8 in. Leaks are reduced using Nitrile seals on the wiper and piston, and a split back up ring protects the cylinder's O-ring. Grade 5 clevis bolts are used to provide additional strength. This tie rod hydraulic cylinder is independently tested by the American Society of Agricultural Engineers (ASAE) and certified independent labs, and meets or exceeds standards in many areas, including salt spray, burst, dimensional, and pressure tests. Specifications

  • Bore x Stroke: 2 in. x 14 in.
  • Rod Diameter: 1-1/16 in.
  • Retracted Length: 24-1/4 in.
  • Pin: 1 in.
  • Shaft: 1-1/8 in.
  • NPT ports: 3/8 in.
  • Nitrile piston seal
  • Split backup ring
  • Rod cap constructed from ductile iron
  • Color: Black
  • Rod cap constructed from ductile iron
  • PSI: 2500
