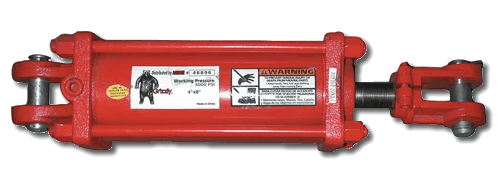

Grizzly Technical Page from Agri Supply®

grizzly

If the cylinder you want is not available below, please call us toll free at 800-345-0169 and one of our CSRs will gladly help you find what you are looking for!

Item # Bore X Stroke Rod Diameter Retracted Length Pin Diameter
57586 2” x 4” 1-1/16” 14-1/4” 1”
46863 2” x 6” 1-1/16” 16-1/4” 1”
46864 2” x 8” ASAE 1-1/16” 20-1/4” 1”
58047 2” x 8” 1-1/16” 18-1/4” 1”
46865 2” x 10” 1-1/16” 20-1/4” 1”
46866 2” x 12” 1-1/16” 22-1/4” 1”
58048 2” x 14” 1-1/16” 24-1/4” 1”
46879 2” x 16” 1-1/16” 26-1/4” 1”
55426 2” x 20” 1-1/16” 30-1/4” 1”
55427 2” x 24” 1-1/16” 34-1/4” 1”
55876 2” x 30” 1-1/16” 40-1/4” 1”
46880 2.5” x 8” ASAE 1-1/16” 20-1/4” 1”
46882 2.5” x 10” 1-1/16” 20-1/4” 1”
55428 2.5” x 12” 1-1/16” 22-1/4” 1”
59375 2.5” x 14” 1-1/16” 24-1/4” 1”
46883 2.5” x 16” 1-1/16” 26-1/4” 1”
57587 2.5” x 20” 1-1/16” 30-1/4” 1”
61576 2.5” x 24” 1-1/4” 34-1/4” 1”
58050 3” x 6” 1-1/4” 16-1/4” 1”
46884 3” x 8” ASAE 1-1/4” 20-1/4” 1”
58051 3” x 8” 1-1/4” 18-1/4” 1”
46885 3” x 10” 1-1/4” 20-1/4” 1”
46886 3” x 12” 1-1/4” 22-1/4” 1”
59376 3” x 14” 1-1/4” 24-1/4” 1”
46887 3” x 16” 1-1/4” 26-1/4” 1”
57588 3” x 16” ASAE 1-1/4” 31-1/2” 1-1/4”
58052 3” x 18” 1-1/4” 28-1/4” 1”
55429 3” x 20” 1-1/4” 30-1/4” 1”
57590 3” x 24” 1-1/2” 34-1/4” 1”
57589 3” x 30” 1-1/2” 40-1/4&rdquo
