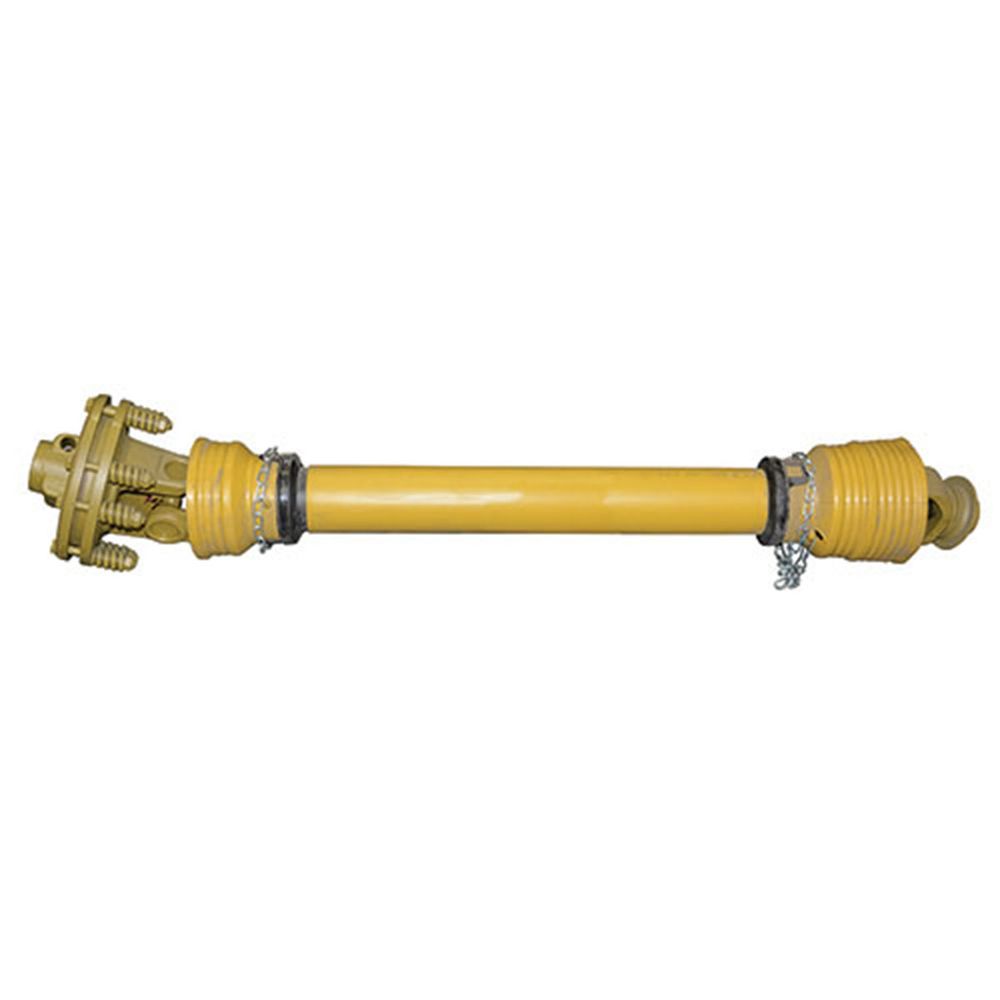

PTO Shaft, Series 6, 1-3/8" x 6 Spline and 1-3/4" x 20 Spline

Item #34240
Transfer high amounts of energy between large machinery with a PTO shaft. This series 6 PTO shaft assembly contains a yoke that measures 1-3/8 - 6 spline end x 1-3/4 - 20 spline.
Due to product size and/or weight, this product ships via Motor Freight Truck only. Liftgate service may not be available. Please be prepared to remove large items from the truck.
Product Overview

Specifications

  • PTO Shaft
  • Part Number: 8256193
  • 8256193 Ax6 49" 1-3
  • Ax6 series shaft
  • 60-1/2" fully closed with a FD4 heavy duty slip clutch
  • 1-3/8" x 6 spline / 1-3/4 x 20 spline
  • Closed length: 60.7"
  • Safe extended length: 87.4"
  • 62 HP at 540 RPM
  • 98 HP at 1000 RPM
  • Slip Clutch Implement End Yoke

    Assembly DescriptionSeries SizeLength OverallI.E. = Implement End T.E. = Tractor End
    AX61240FD4/MC661"FD4 slip clutch 1 3/4-20 I.E. / 1 3/8-6 MC yoke T.E.
