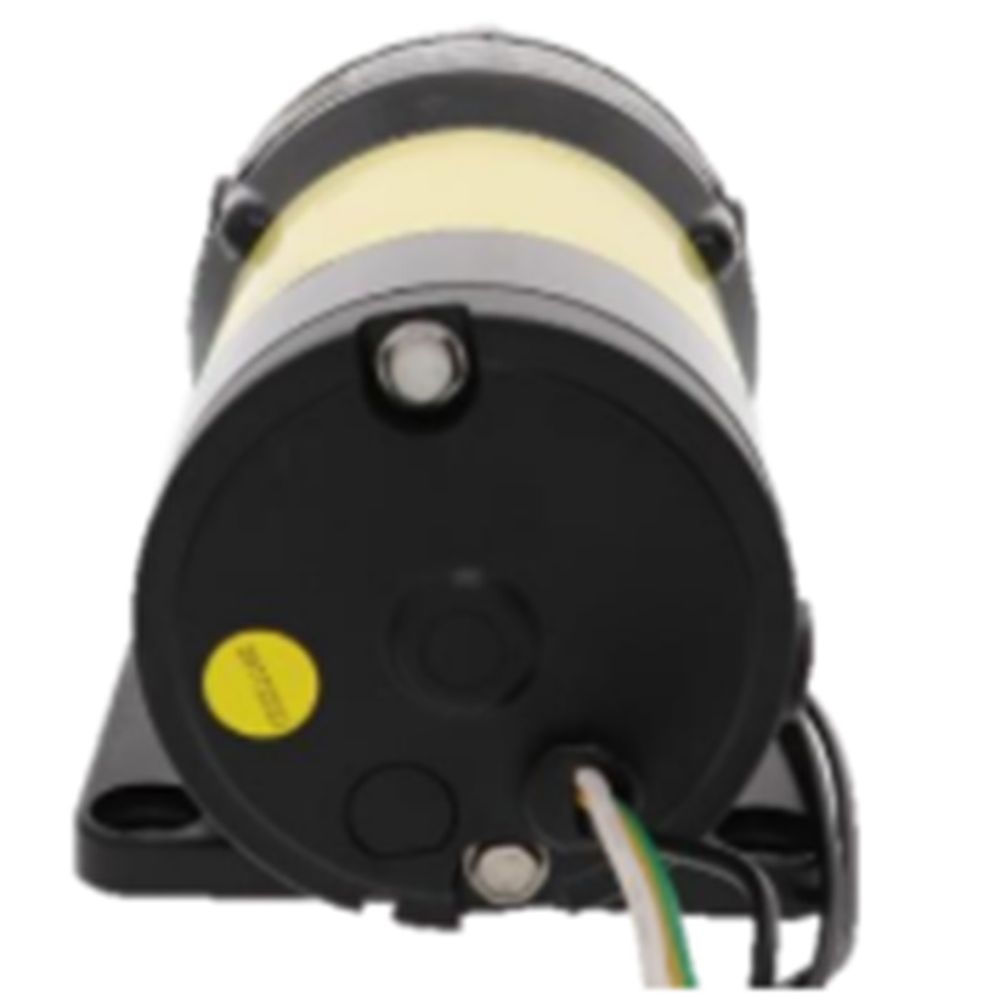

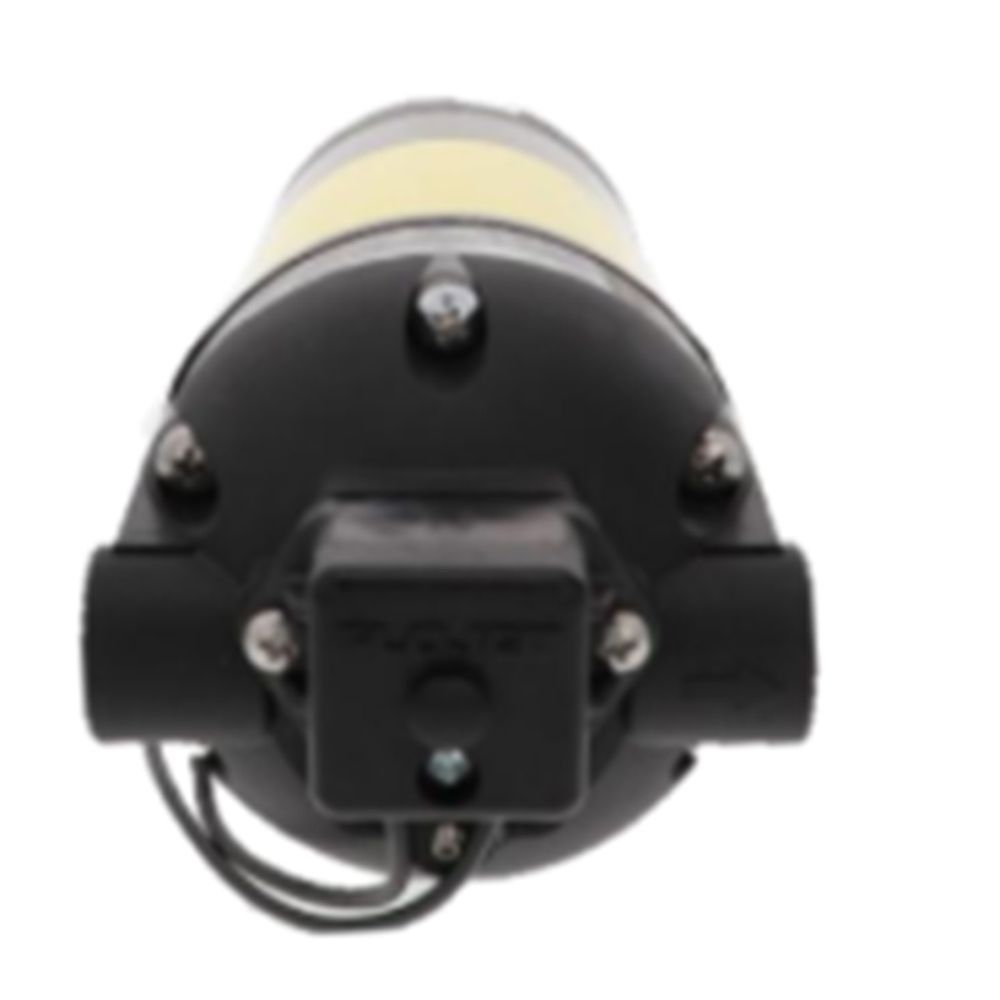

FlowJet Xylem Triplex Series Industrial Diaphragm Pump

Engineered to surpass the legacy Duplex line, the Flojet T20FF-318S-1P marks a significant leap forward in the Triplex Series lineup. This 115 VAC industrial powerhouse moves away from traditional designs in favor of an advanced three-chamber diaphragm architecture, which significantly smooths out flow pulsations and enhances overall mechanical durability. Whether you are managing high-precision fluid transfer or high-demand industrial spray applications, this pump is built to serve as the reliable backbone of your fluid handling system.

• FlowJet Xylem
• Part Number: T20FF-318S-1P
• Robust design with a permanent magnet motor
• Long-life co-injection mold diaphragm
• Efficient, quiet
• Self-priming up to 8 ft. (2.4m)
• Runs dry without damage
• Open Flowrate: 2GPM open flow (7.6 LPM)
• Pressure switch cut-off: 60 PSI (4.1 BAR)
• Max Opening Pressure: 60 PSI (4.1 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Internal Bypass: Yes
• Fluid Temperature Range: 40°F - 140°F (4°C - 60°C)
• Self-Priming Capability: Up to 8 ft. (2.4m) dry prime
• Run-dry Capable: Yes
• Nominal Voltage: 115 VAC
• Voltage Range: 104 VDC -126 VDC
• Max Current Draw: 0.9 Amps @ 60 PSI (4.1 BAR)
• Fuse Size: 1.2 Amps (required)
• Duty Cycle: Intermittent (see heat-raise chart)
• Leads: 12 in. (305mm), 18 AWG
• Wire Connection: Stripped wire
• 3-chamber Diaphragm
• 3/8 in. NPTF ports
• Noise-dampering baseline
• Thermal motor protection (TCO)
