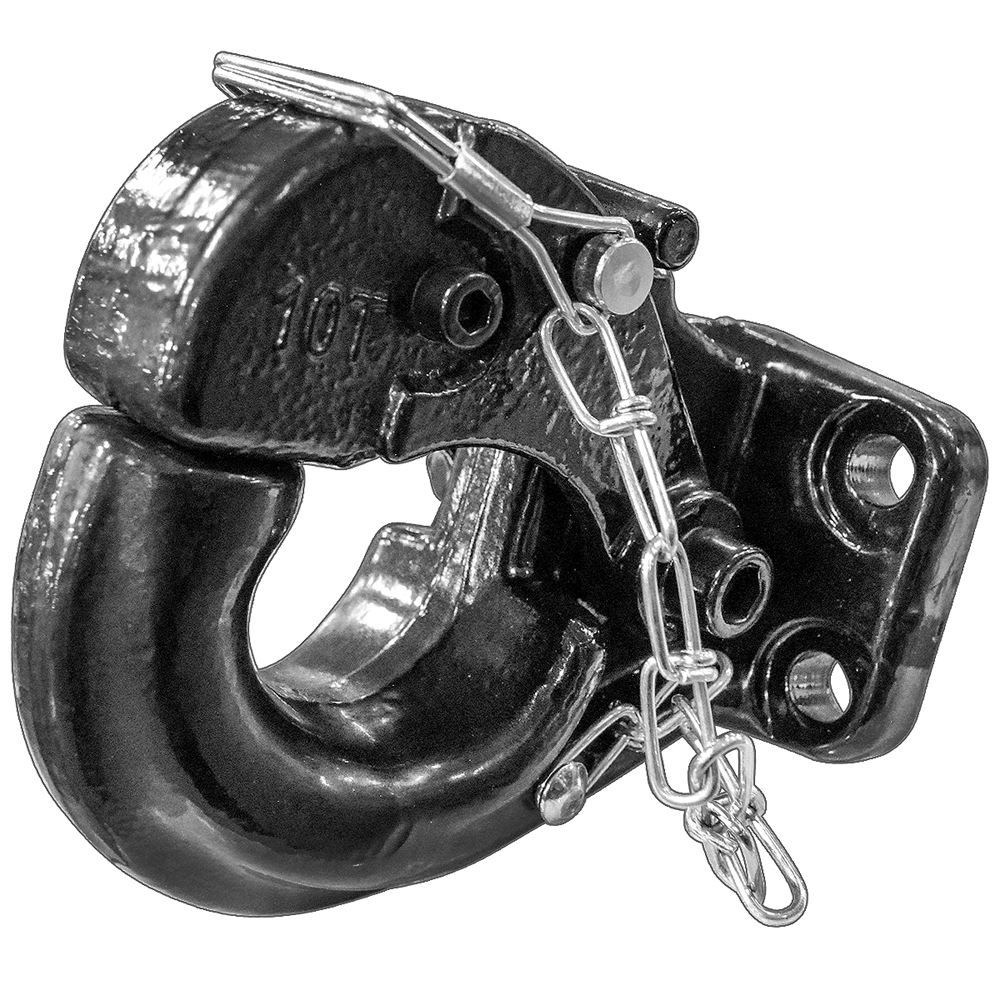

Pintle Hook, 10 Ton

Transport a high capacity of weight with this pintle hook, designed to support a load of 10 tons. This device can attach to most standard mounts, and features a locking arm and chain for additional security. This pintle hook receiver is for use with a tow ring.
Product Overview

Constructed from alloy steel then continued through a drop forging process to shape the steel accordingly, this 10 ton pintle hook has excellent strength. In addition to pulling a horizontal capacity of 10 tons, it can perform a vertical load lift of up to 4,000 lbs. The drawbar eye adjusts and measures between 2-1/2 to 3 inches. It features a locking arm and bolted chain for more protection when in use. This pintle hook hitch also has a powder coated exterior for further durability.

  • Pintle hook
  • Horizontal load capacity: 10 tons
  • Maximum vertical load: 4,000 lbs.
  • Maximum gross trailer weight: 20,000 lbs.
  • Construction: alloy steel, drop forged
  • Drawbar eye dimensions: 2-1/2" to 3"
  • Locking arm
  • Chain
  • For use with tow ring
  • Powder coated finish
  • Imported
