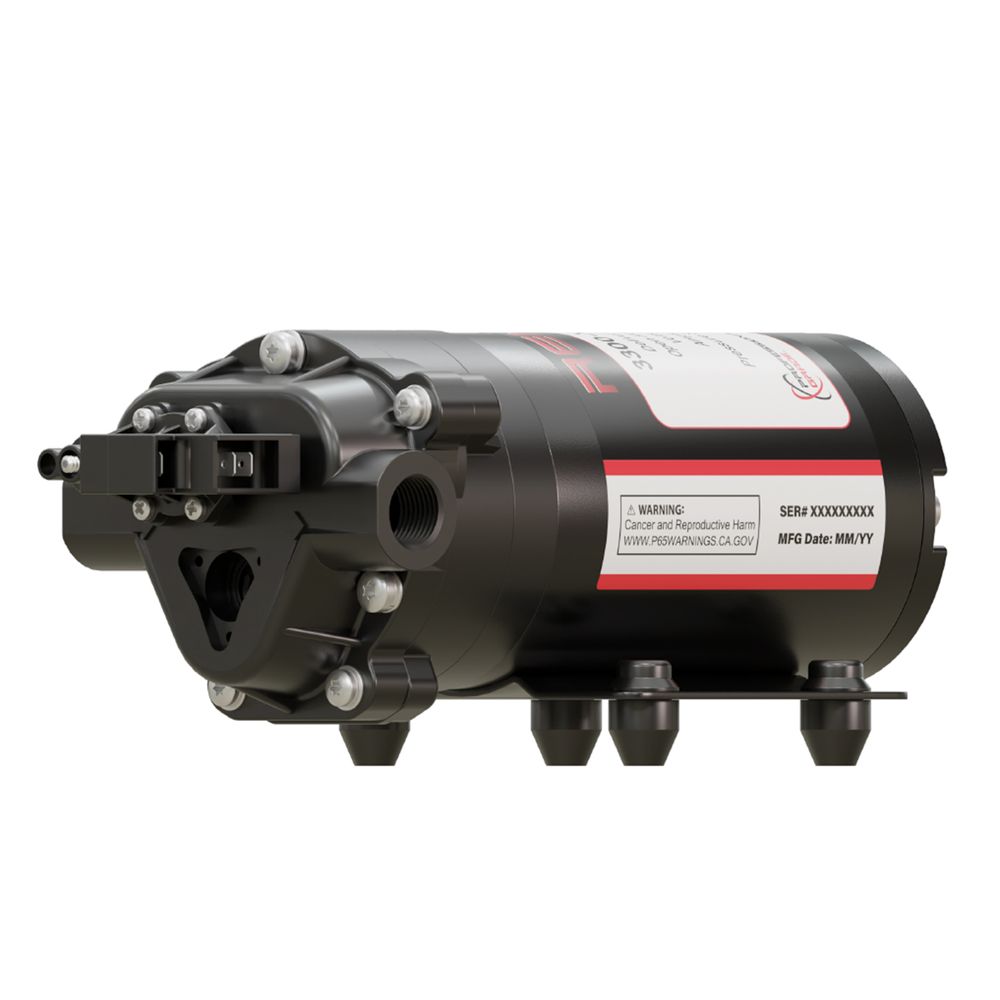

Remco™ 3300 Series 12 V 2.2 GPM 3/8 in. Ports Pump

Perfect for agricultural and chemical spraying application intermittent duty use. This pump is not listed for potable water use.

Specifications

• Remco™ 3300 Series Pump

• MFG # 9033231E182BSB
• Type: 3 chambers positive displacement diaphragm
• Maximum Flow: 2.2 GPM [7.6 LPM]
• Fluid Ports: 3/8 in. FNPT
• Liquid: 140 F [60 C] Max
• Dry Prime: 8 ft. [2.4 M]
• Run Dry: Yes
• Pressure Setting: 60 PSI [3.8 bar]
• Control: Pressure Switch
• Label: Remco™ Label, Part Number, Specs, Serial Number, MFG Date
• Motor: 12 VDC permanent magnet, intermittent duty
• Voltage Range: 11.5 VDC-14.5 VDC
• Max Amps: 8 Amps
• Leads: 14 AWG 6 in. [15 cm] 2 pin connector
• Fuse: 10 Amp recommended
• Control: Pressure Switch
• Max Temp: 180 F [82 C]
• IP Rating: IP65
• Pump head: Polypropylene
• Diaphragm: Santoprene
• Valves: Viton
• Valve Housing: Polypropylene
• Hardware: Zinc Plated Screws
