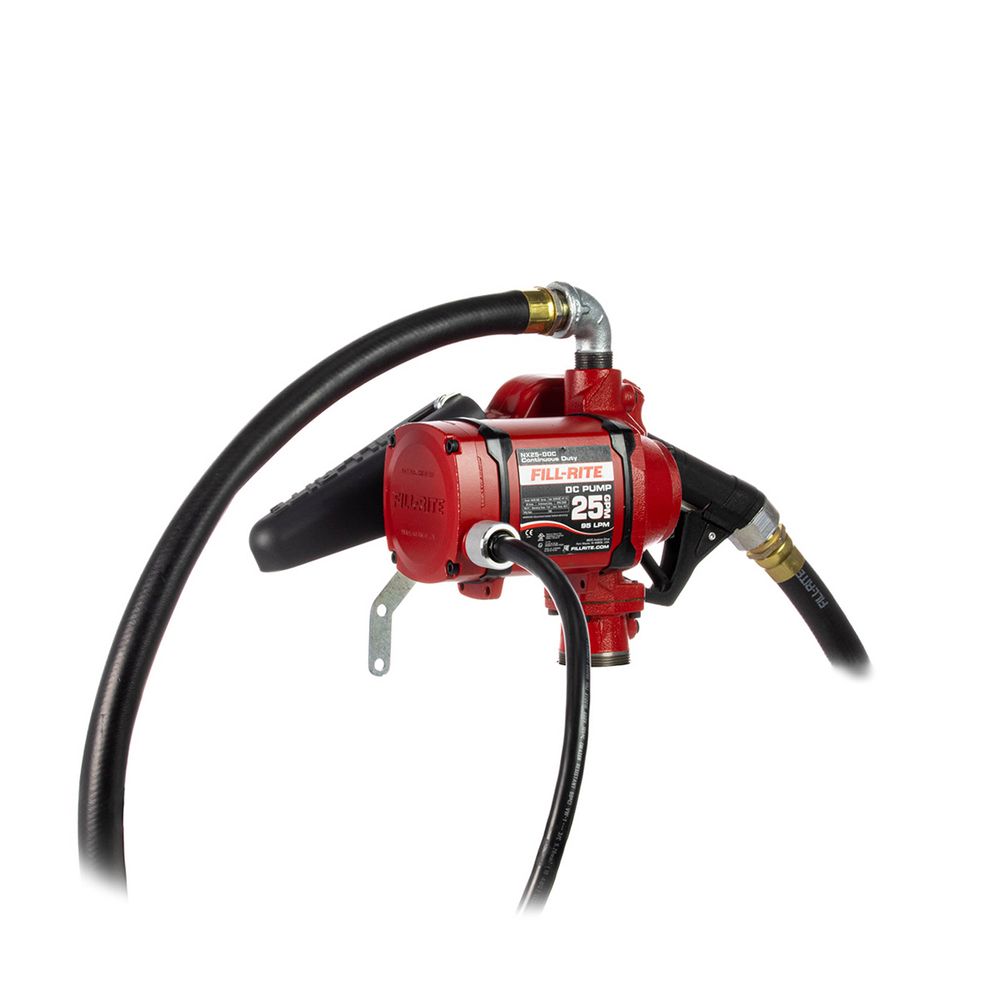

Fill-Rite® Fuel Transfer Pump, 12-24 Volt DC, 25 GPM

Item #108972
Designed to transfer liquid chemicals, this lightweight Fill-Rite® fuel transfer pump, is best suited for the outdoors. It has an explosion-proof motor that can move up to 25 gpm and is compatible with E15, gasoline, kerosene, diesel, and biodiesel up to B20. Can also regulate power internally from a range of 12 to 24 Volts.
Product Overview

Housed in cast iron, this 12-24 Volt DC fuel transfer pump, designed by Fill-Rite®, moves up to 25 gallons per minute. This pump can quickly mount onto any 2 in. NPT tank adapter. That equates to filling a 500 lb. tank in less than 20 minutes. Is compatible with gasoline, diesel, E15, biodiesel up to B20, and kerosene. Fuel pump also comes complete with a 18 foot hose, 1 foot ultra high flow nozzle and 20 foot removable power cord. Features intelligent tones to identify where or when attention is needed. There are 3 tones for application issues and 4 tones for motor or pump issues.

Specifications

  • Fill-Rite® brand
  • Product number: NX25DDCNBAA
  • 12-24 Volt DC 25 GPM Continuous Duty Fuel Transfer Pump with Ultra Hi-Flow Auto Nozzle
  • Continuous duty cycle
  • Transfer fuel all day with no downtime
  • High-flow fuel transfer rates at the nozzle
  • Lightweight
  • Easing installation
  • Auto power down after 20 minutes of inactivity, reducing energy cost
  • Lower amp draw
  • Perfect for Agriculture, Construction, Energy & Power, Fleet/Transportation, Logging, Municipalities
  • Fluid handling: Diesel, Gasoline, Mineral Spirits
  • 25 GPM / 95 lpm
  • Heavy duty cast iron construction
  • Comes complete with a hose, nozzle, and installation components.
  • Motor power: 1/3 HP
  • Mounting type: Bung Mount
  • Flow rate range (GPM): 0.25 GPM
  • Motor power (HP): 0.33
  • Max discharge pressure (PSI): 21
  • Max operating pressure (PSI): 25
  • Current range (A): 30 amps
  • Compatible with diesel, gasoline, biodiesel up to B20, E15, kerosene
  • Inlet/outlet: 1-1/4"-1" NPT
  • Amp draw: 29 amps
  • Adjustable nozzle boot
  • Heavy duty power switch
  • Locking bar
  • Intelligent tones, 3 tones for application issues, 4 tones for motor or pump issues
  • 2" bung mount
  • Lighter design, great for mobile tanks
  • Auto power down after 20 minutes of inactivity
  • Fuel transfer pump includes:
    • 18 foot hose
    • Pump
    • 1 foot ultra high flow nozzle
    • 20 foot removable power cord
