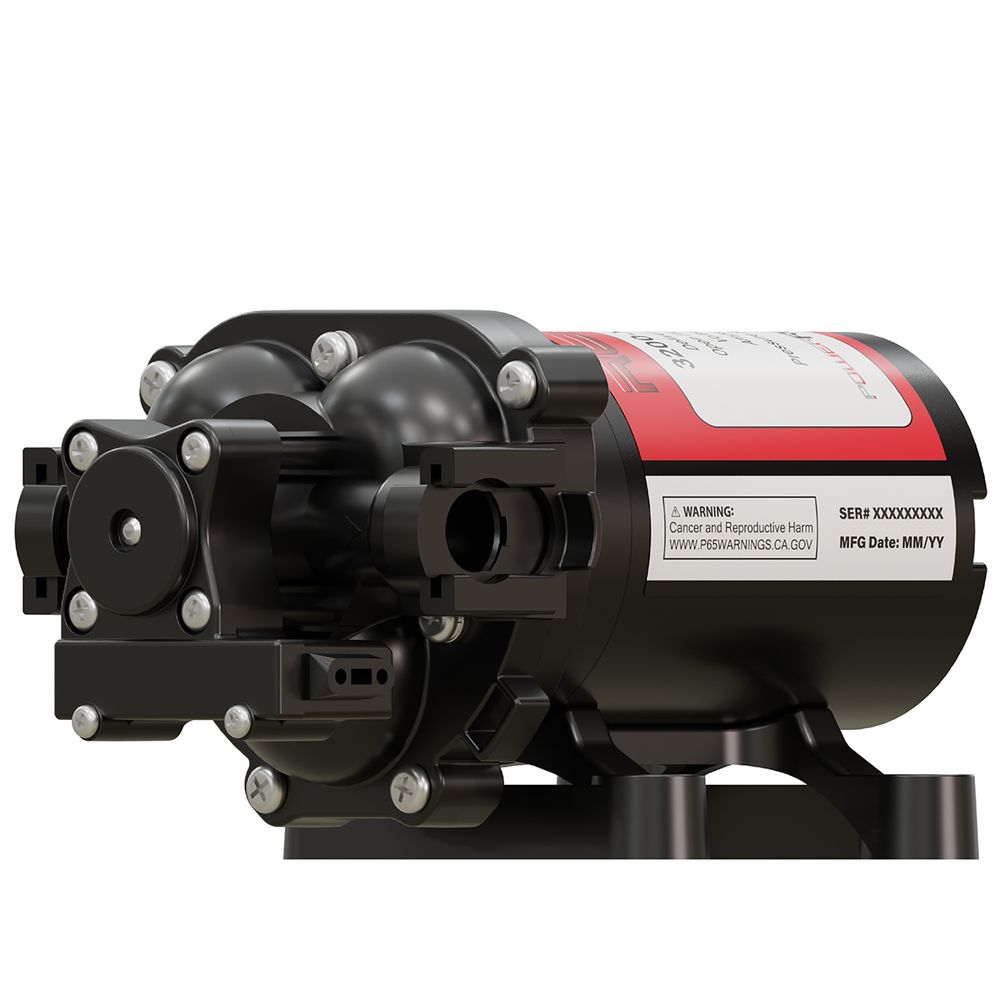

Remcore™ 3200 Series 12 V 3.5 GPM 3/4 in. QA Port Pump

Perfect for agricultural and industrial spraying intermittent duty only. This pump is not listed for potable water use.

Specifications

• Remcore™ 3200 Series Pump

• MFG # 9032141E182BSB
• Type: 3 Chamber Positive Displacement Diaphragm
• Maximum Flow: 3.5 GPM [13.25 LPM]
• Fluid Ports: 3/4 in. quick attach female
• Liquid: 140F [60 C] Max
• Dry Prime: 10 ft. [4.2 M]
• Run Dry: Yes
• Shut off Pressure: 60 PSI [4.1 Bar]
• Control: Pressure Switch
• Motor: 12 VDC Permanent Magnet, Intermittent Duty
• Voltage Range: 11.5 VDC-14.5 VDC
• Max Amps: 10 Amps
• Protection: Thermal Overload
• Leads: 14 AWG, 6 in. [15 cm]
• Fuse: 15 Amp recommended
• Control: Pressure Switch
• Max Temp: 180&degre; F [82 C]
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Base: Metal Base
• Hardware: Zinc Plated Steel
