Fill-Rite 12VDC 20GPM Heavy-Duty Fuel Transfer Pump

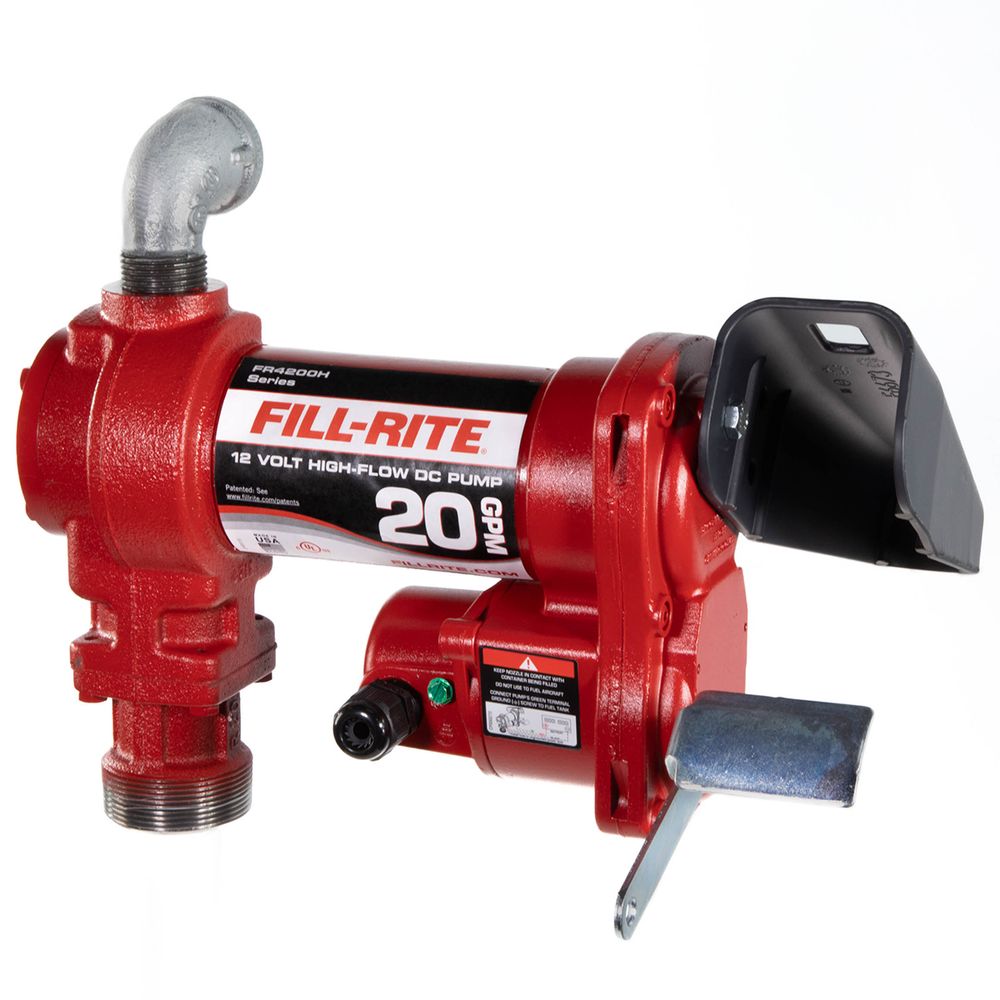

FR4204H Fill-Rite® 12 Volt 20GPM Pump Only

Item #131925
Write a Review
This FR4204H Fuel Transfer Pump from Fill-Rite® is a perfect choice if you already have the attachments and need the pump and motor assembly only.
100% Satisfaction Guaranteed
Product Overview

Fill-Rite has set the standard for fuel pumps and accessories for over 60 years. These pumps are constructed with heavy duty materials for reliability and long service in all types of climates and weather. Installation is easy due to an electrical junction box that rotates 180 degrees. You work hard, and so should your fuel pump. Fill-Rite has you covered.

Specifications

  • 12 Volt DC
  • Pump, Motor, and Nozzle Bracket Only
  • Flowrate 0 to 20 gallons per minute
  • For gasoline up to E15, diesel, kerosene, biodiesel up to B20, mineral spirits
  • 1 inch inlet and outlet
  • 8 foot suction
  • Max operating pressure 16 PSI
  • Includes 1 inch NPT street elbow, ground wire, 2 wire nuts, PTFE tape roll
  • Hoses or suction pipes not included
  • 1/4 HP motor
  • Assembled dimensions 8.4 inches long by 13.7 inches wide by 6.5 inches height
  • Weight 20.7 pounds
  • Excellent for agriculture, construction, or vehicle maintenance
  • Can be mounted on mobile or stationary tanks
