12" Electric Brake Assembly, Left Hand, 7000 lb. Capacity

This electric brake assembly is 12 inch by 2 inch and is a left-hand assembly. Completely assembled, this 5 hole mount electric brake will let you stop with confidence. Paired with a right-hand brake assembly, this brake will work on trailers with up to 7000 pound axles. Due to the electrical wiring, this brake assembly should not be used with watercraft trailers.
Availability:
#36788A
Product Overview

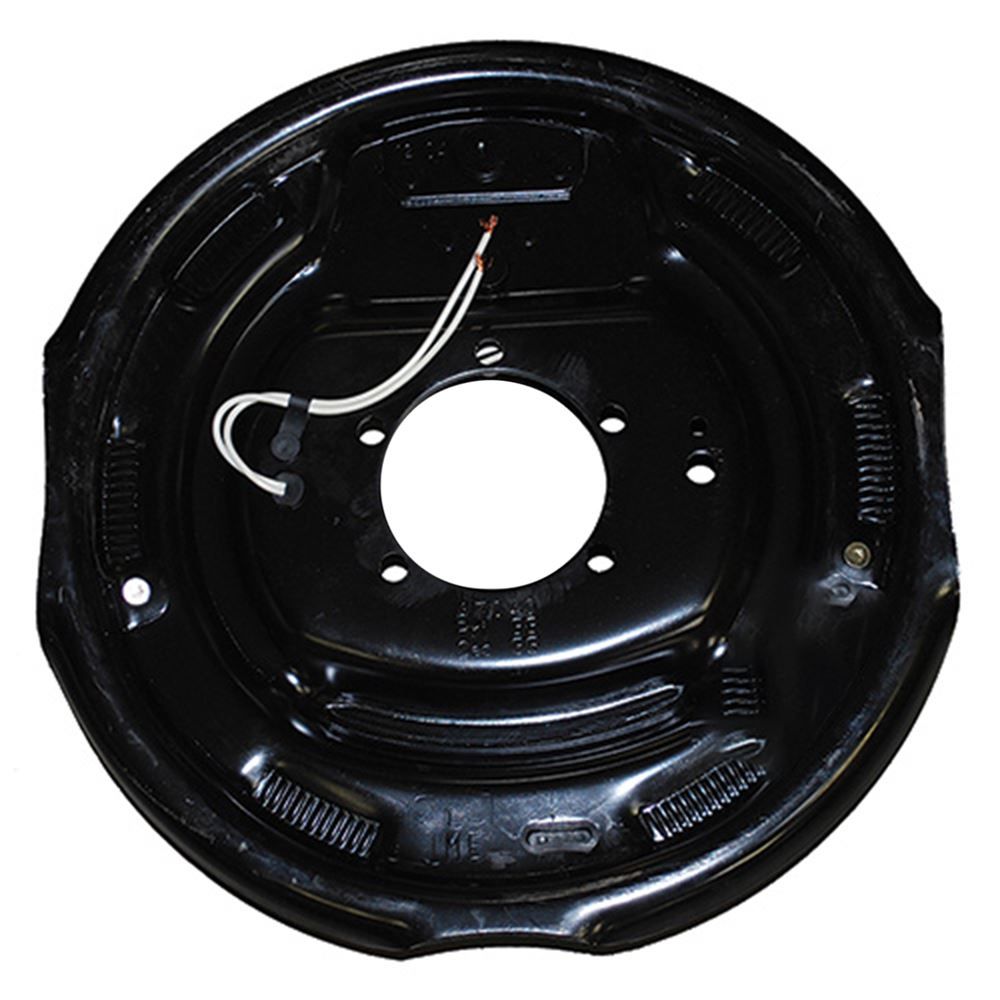

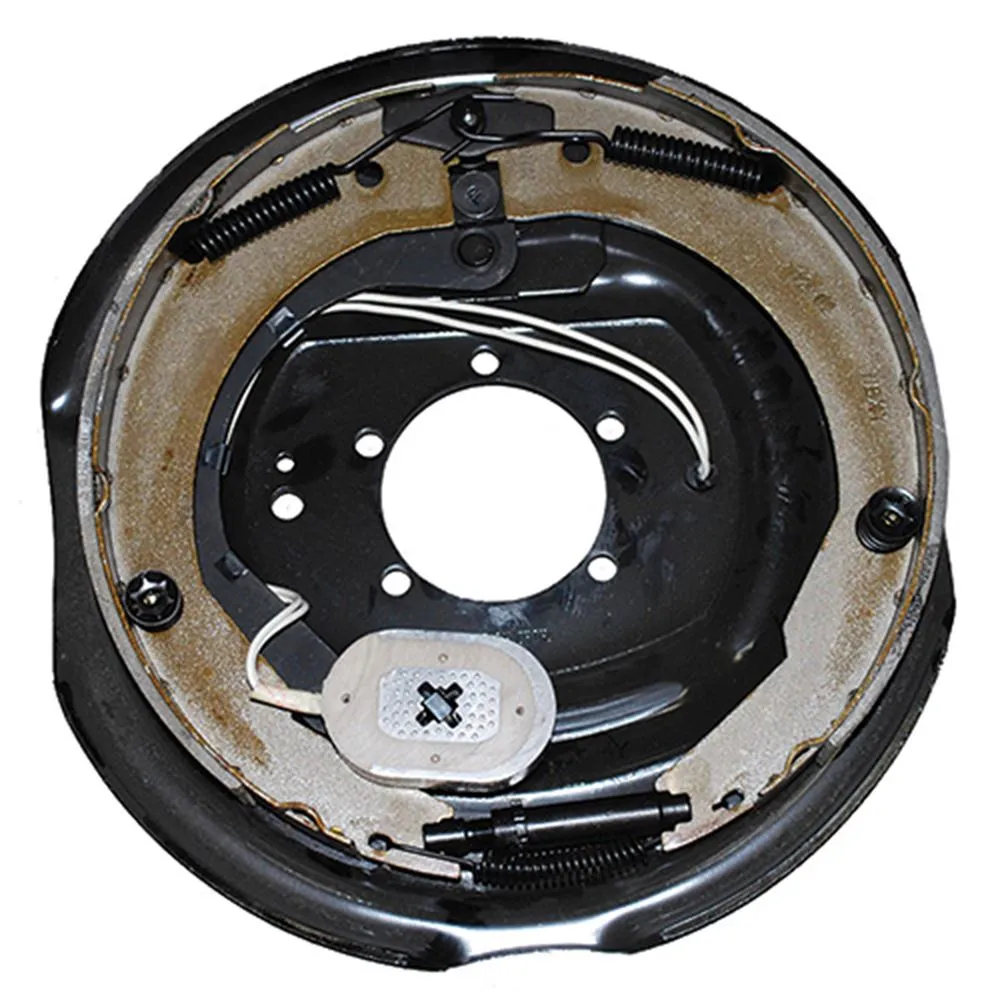

The left-hand electric brake assembly is 12 inches by 2 inches in size. The brake assembly comes complete with a backing plate, two brake shoes, upper double retracting springs, lower under-mount adjustment spring, magnet and wiring. Paired with a right-hand brake assembly, ASC #36787, this brake assembly can handle trailers up to 7000 lb. capacity.


The engineered design of this left hand break assembly is superior. The uniquely designed magnet generates a substantially higher pulling power than other electric brakes at the same amperage. Both wires to the magnet are hot so connecting to the power and ground wires is not a problem. Due to the electrical wiring, this brake assembly should not be used with watercraft trailers.


Specifications

  • Electric Brake Assembly, Left Hand
  • 12 inches x 2 inches
  • Number of holes: 5
  • Capacity: 7000 Lbs.
  • Fully assembled, includes backing plate, brake shoes, magnet with wiring, springs and under-mount adjustment spring
  • For use with non watercraft trailers
  • Both wire leads are hot
  • Unique magnet design for greater pulling power
  • Left-hand driver side electric brake assembly

After stopping with confidence, and once you need replacement brake shoes, Agri Supply® has the replacement parts that you need.

  • 12 inch x 2 inch shoe and lining kit, ASC #45593
  • Spring kit replacement, ASC #66377
  • Magnet Kit, ASC # 36789
  • Brake mount hex nut, ASC #60792
  • Mounting bolt, ASC #60791
  • Replacement flange, ASC #67879
