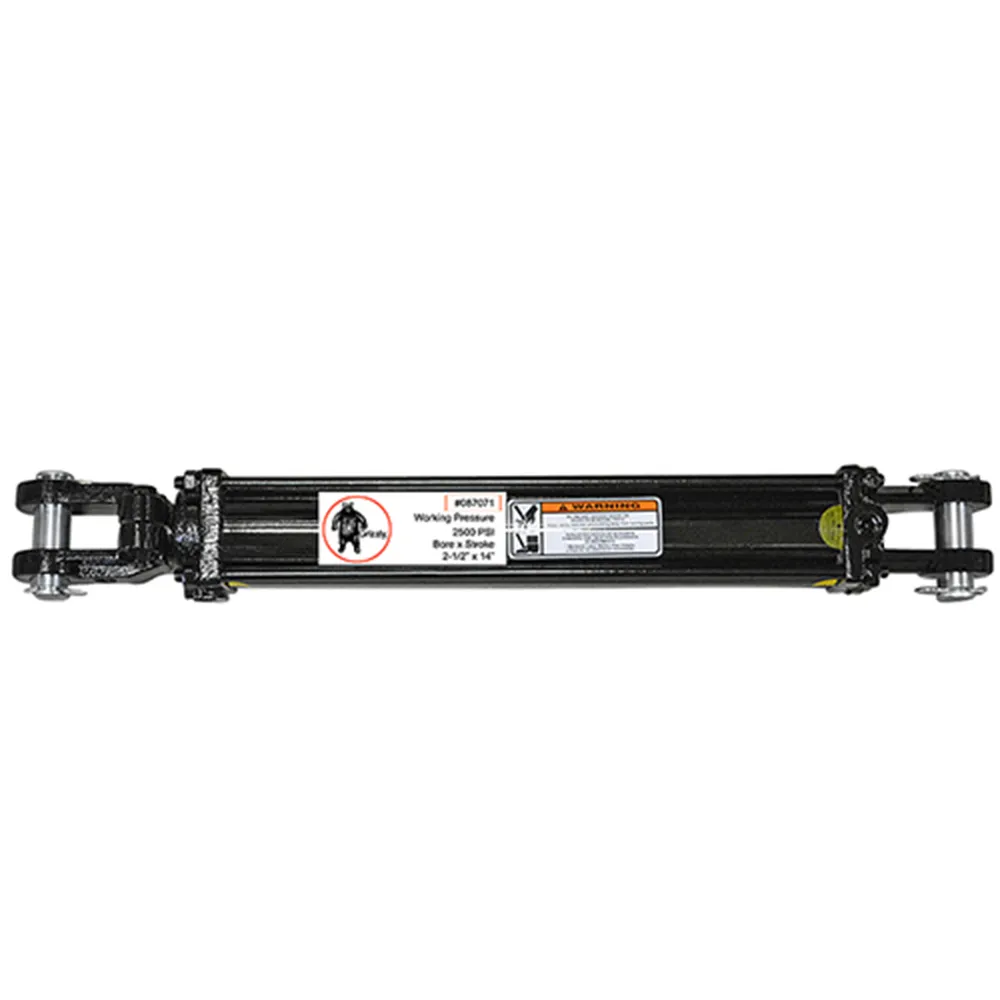

Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore 14 In. Stroke
Item #87071A
Use this Grizzly® hydraulic cylinder for agricultural applications with a working pressure of 2500 PSI. Designed for high quality performance, this cylinder has a 2-1/2 in. bore and an 14 in. stroke with a retracted length of 24-1/4 in.
Product Overview
Specifications
- Grizzly® Hydraulic Cylinder
- Bore x Stroke: 2-1/2 in. x 14 in.
- Rod Diameter: 1-1/8 in.
- Retracted Length: 24-1/4 in.
- Pin: 1 in.
- PSI: 2500
- Color: Black
- Push lbs.: 12,272
- Pull lbs.: 9,787
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC # 117380
