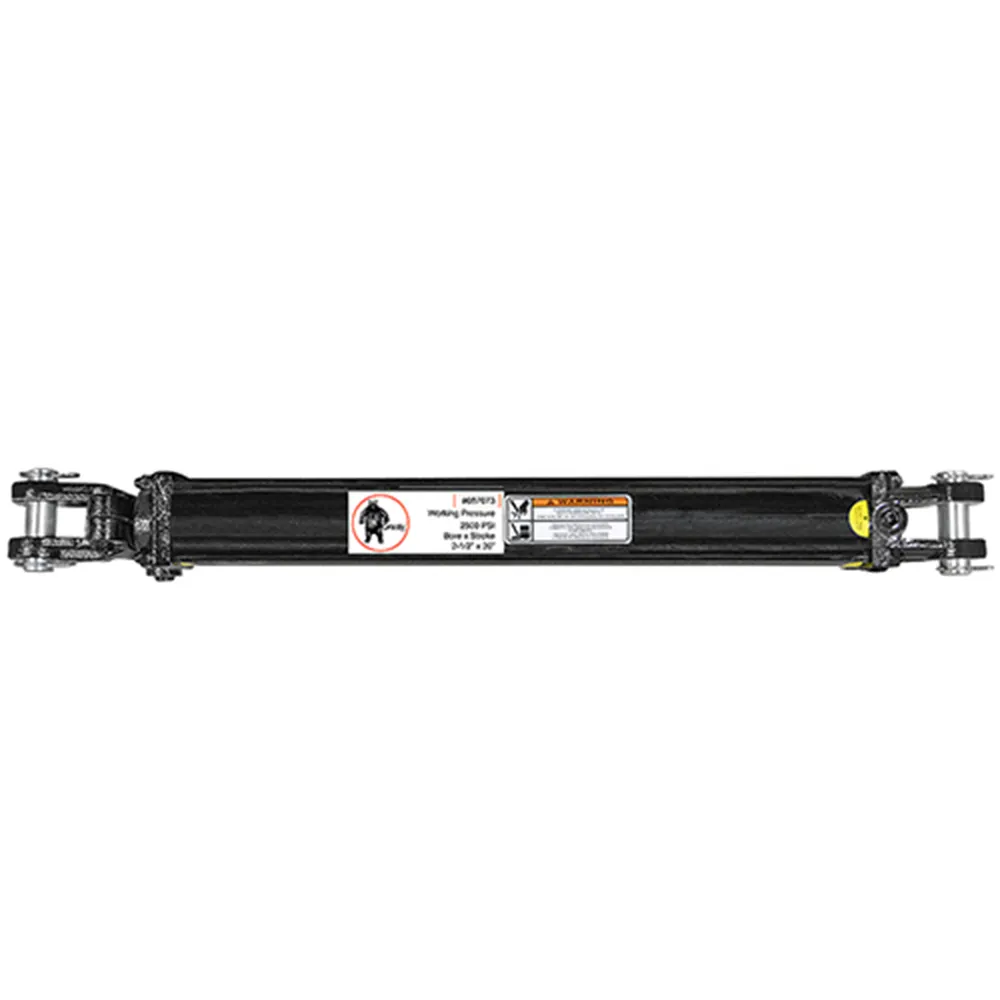

Grizzly® Hydraulic Cylinder 2-1/2 x 20
Item #87073A
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high quality performance. With a 2-1/2 in. bore and a 20 in. stroke, this cylinder has a retracted length of 30-1/4 in.
Product Overview
Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 2-1/2" inch bore with a 20" inch stroke and has a 1" inch pin.
- Specifications:
- Grizzly® Brand
- Bore: 2-1/2"
- Stroke: 20"
- Rod Diameter: 1-1/4"
- Retracted Length: 30-1/4"
- Extended Length: 50-1/4"
- Pin Diameter: 1"
- Port Size: 3/8" NPTF
- PSI: 2500
- Push lbs.: 12,272
- Pull lbs.: 9,204
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC # 123743
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
