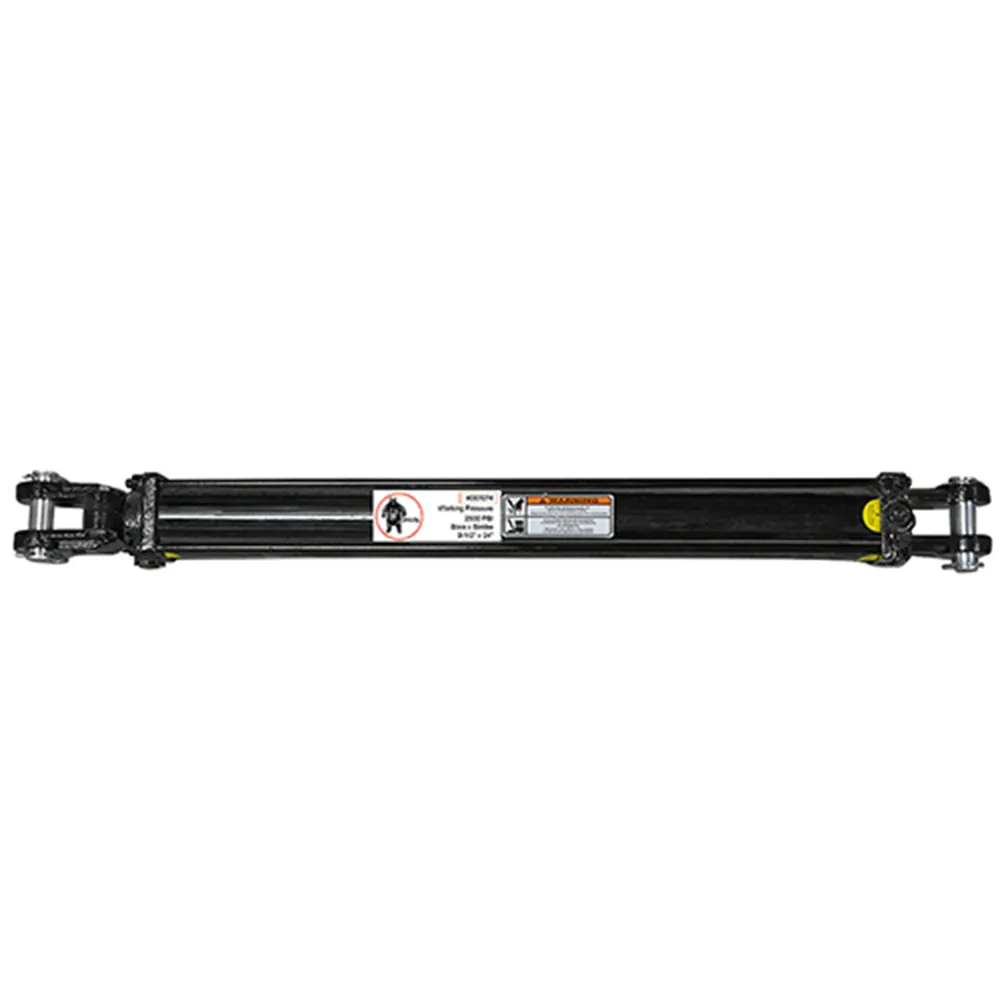

Grizzly® Hydraulic Cylinder 2-1/2 x 24

Grizzly® Hydraulic Cylinder 2-1/2 x 24

Item #87074A
Write a Review
Use this Grizzly® hydraulic cylinder for agricultural applications with a working pressure of 2500 PSI. Designed for high quality performance, this cylinder has a 2-1/2 in. bore and a 24 in. stroke with a retracted length of 34-1/4 in.
100% Satisfaction Guaranteed
Product Overview

This Grizzly® hydraulic cylinder has a 2-1/2" inch bore and a 24" stroke with a retraced length of 34-1/4 inches and an extended length of 58-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for the tough conditions on the job or farm.

Specifications:

  • Grizzly® Brand
  • Bore: 2-1/2"
  • Stroke: 24"
  • Rod Diameter: 1-1/4"
  • Retracted Length: 34-1/4"
  • Extended Length: 58-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Push lbs.: 12,272
  • Pull lbs.: 9,204
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 123743

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
