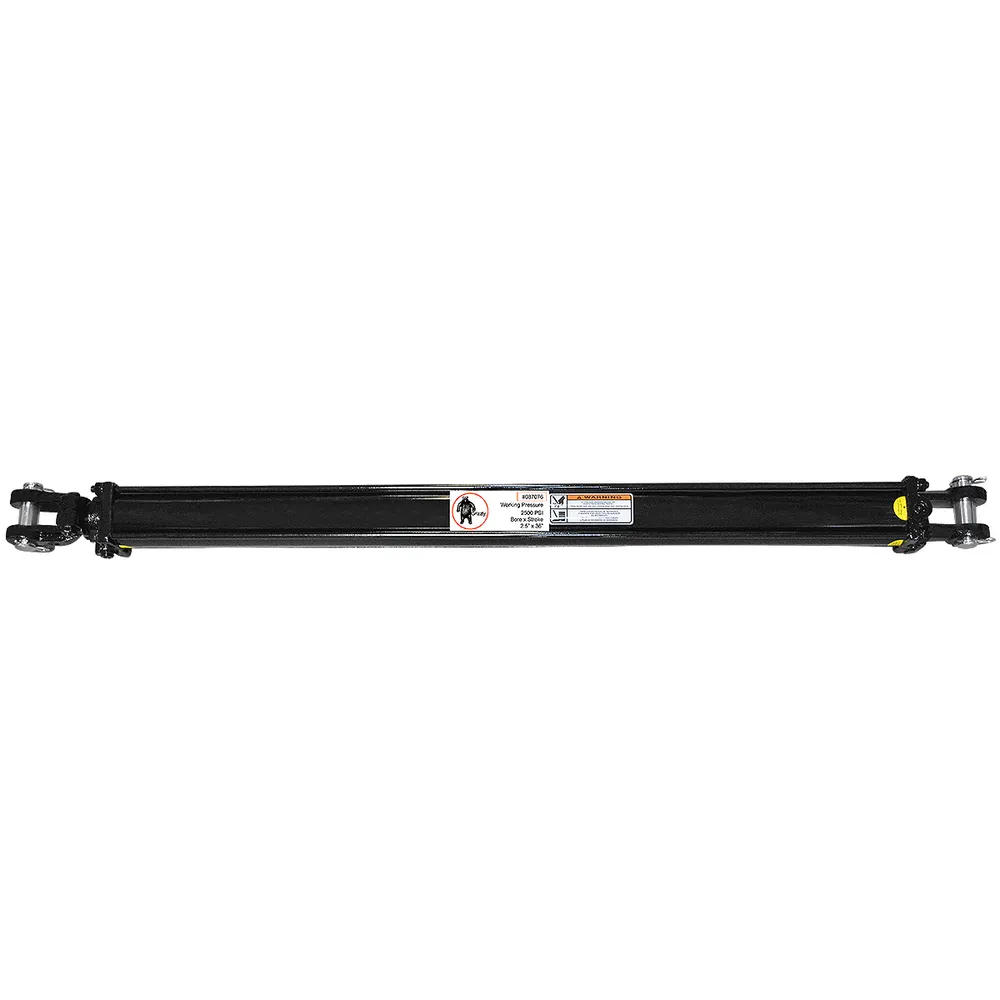

Grizzly® Hydraulic Cylinder 2-1/2 x 36

Grizzly® Hydraulic Cylinder 2-1/2 x 36

Item #87076A
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 2-1/2 in. bore and an 36 in. stroke. The retracted length is 58-1/4 in. and the rod diameter measures 1-1/4 in.
100% Satisfaction Guaranteed
Product Overview

Replace hydraulic cylinders to keep your equipment running. This 2-1/2" x 36" cylinder has a rod diameter of 1-1/4" and is constructed of high strength steel and includes tie rods to prevent high pressure failure.

Specifications:

  • Grizzly® Brand
  • Model number: T25253610
  • Bore: 2-1/2"
  • Stroke: 36"
  • Rod Diameter: 1-1/4"
  • Retracted Length: 58-1/4"
  • Extended Length: 94-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Push lbs.: 12,272
  • Pull lbs.: 9,204
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 123743

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
