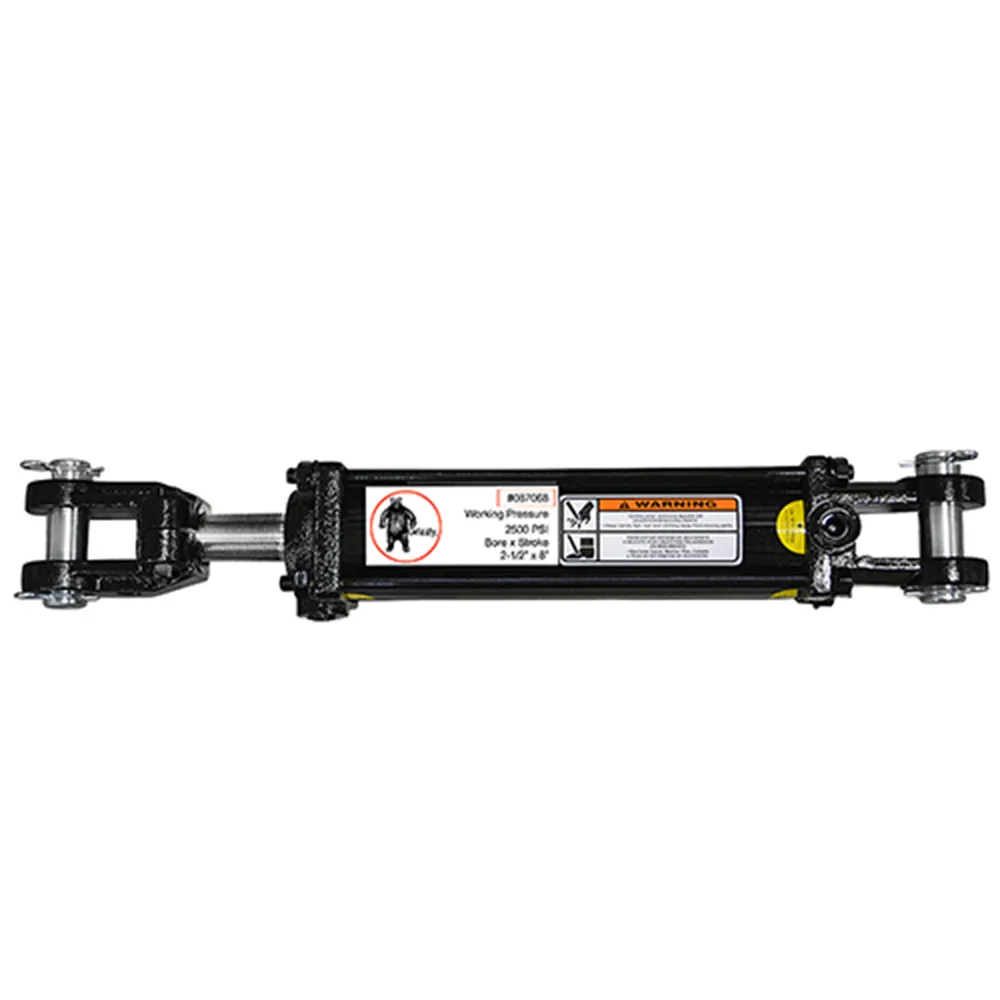

Grizzly® Hydraulic Cylinder 2-1/2 x 8 ASAE
Item #87068A
Use this Grizzly® hydraulic cylinder for agricultural applications with a working pressure of 2500 PSI. Designed for high quality performance, this cylinder has a 2-1/2 in. bore and an 8 in. stroke with a retracted length of 20-1/4 in.
Product Overview
Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 2 inch bore with a 4 inch stroke and has a 1" inch pin.
Specifications:
- Grizzly® Brand
- Bore: 2-1/2"
- Stroke: 8"
- Rod Diameter: 28-1/4"
- Retracted Length: 20-1/4"
- Extended Length: 28-1/4"
- Pin Diameter: 1"
- Port Size: 3/8" NPTF
- PSI: 2500
- Push lbs.: 12,272
- Pull lbs.: 9,787
- C95-2508
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC # 117380
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
