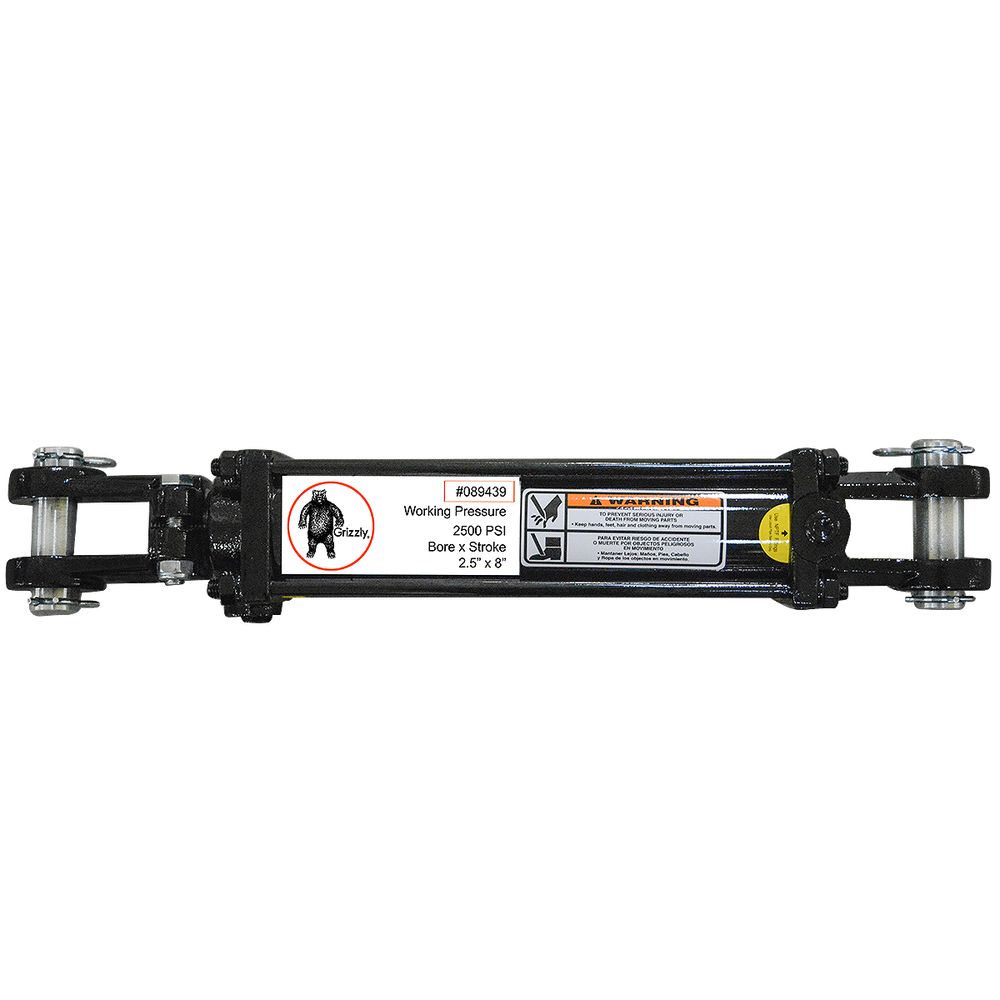

Grizzly® Hydraulic Cylinder 2-1/2 x 8

Grizzly® Hydraulic Cylinder 2-1/2 x 8

Item #89439A
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 2-1/2 in. bore and an 8 in. stroke. The retracted length is 18-1/4 in. and the rod diameter measures 1-1/8 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
100% Satisfaction Guaranteed
Product Overview

This Grizzly® hydraulic cylinder has a 2-1/2" inch bore and a 8" stroke with a retraced length of 18-1/4 inches and an extended length of 26-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for the tough conditions on the job or farm.

Specifications:

  • Grizzly® Brand
  • To fit The Granville Tobacco Stripper® and other ag equipment
  • Bore: 2-1/2"
  • Stroke: 8"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 18-1/4"
  • Extended Length: 26-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Push lbs.: 12,272
  • Pull lbs.: 9,787
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
