Grizzly® Hydraulic Cylinder 2 x 10

Grizzly® Hydraulic Cylinder 2 x 10

Item #87060A
Write a Review
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high quality performance.
100% Satisfaction Guaranteed
Product Overview

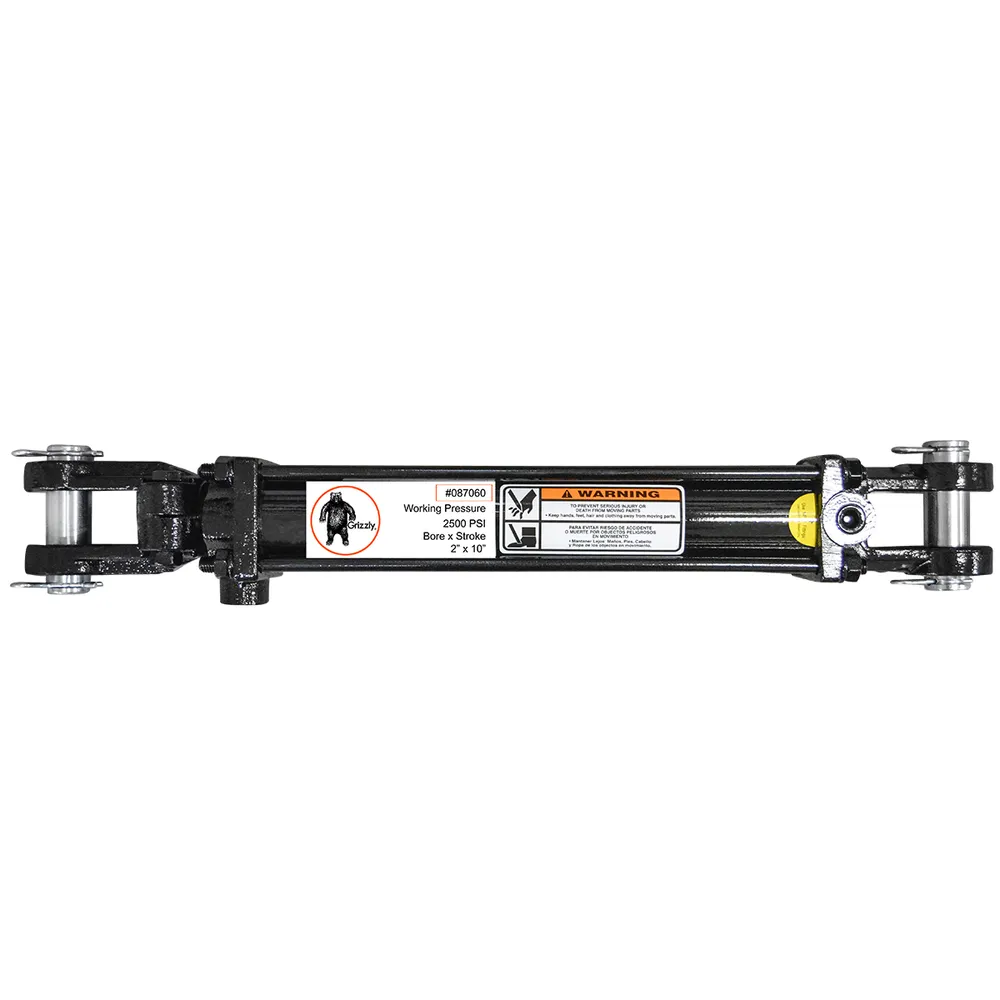

Replace hydraulic cylinders to keep your equipment running. This 2" x 10" cylinder has a rod diameter of 1-1/8" and is constructed of high strength steel and includes tie rods to prevent high pressure failure. With a 2 in. bore and a 10 in. stroke, this cylinder has a retracted length of 20-1/4 in.

Specifications

  • Hydraulic Cylinder
  • Grizzly® Brand
  • Bore: 2"
  • Stroke: 10"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 20-1/4"
  • Extended Length: 30-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Push lbs.: 7,584
  • Pull lbs.: 5,369
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For Seal Kit use ASC # 117380

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
