Grizzly Hydraulic Cylinder 2 x 6

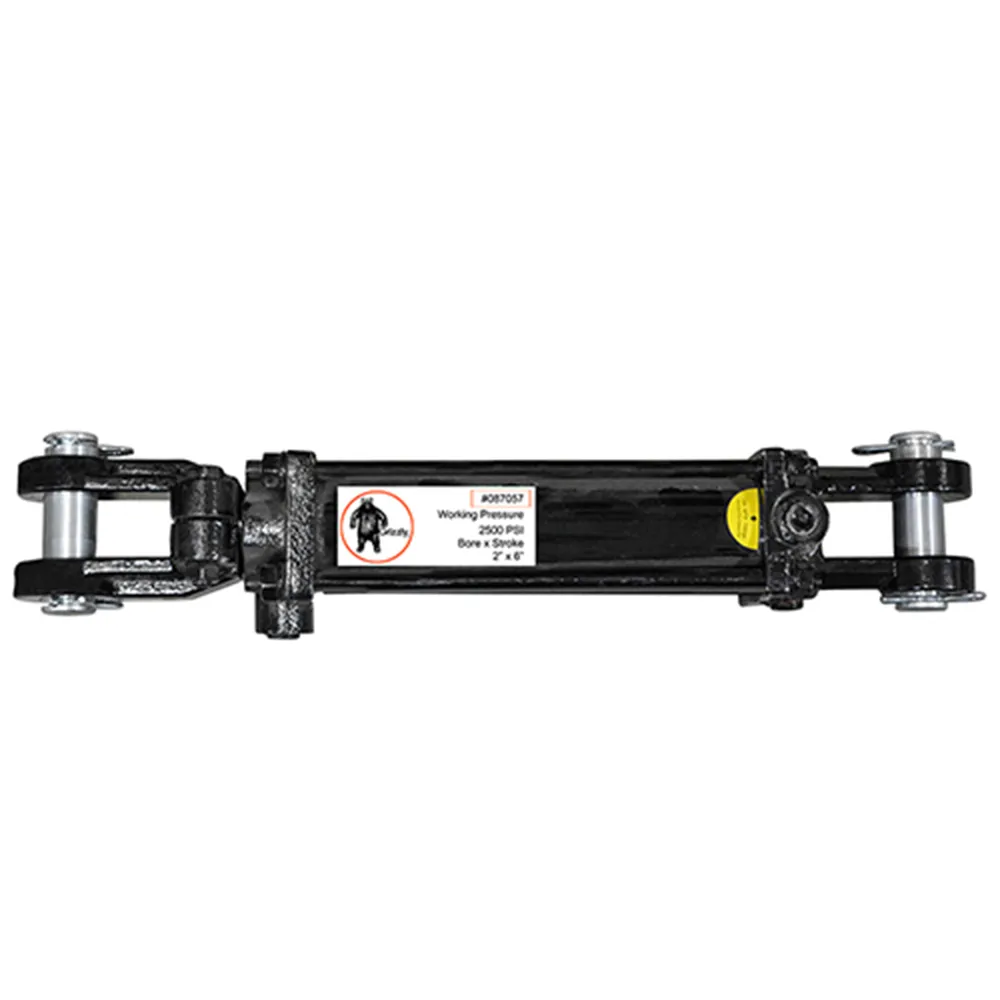

Grizzly® Hydraulic Cylinder 2 x 6

Item #87057A
Write a Review
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high quality performance.
100% Satisfaction Guaranteed
Product Overview

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high-pressure failure. This cylinder features a 2" inch bore with a 6" inch stroke and has a 1" inch pin.

Specifications

  • Grizzly® Brand
  • Bore: 2"
  • Stroke: 6"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 16-1/4"
  • Extended Length: 22-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • Push lbs.: 7,584
  • Pull lbs.: 5,369
  • For the seal kit use ASC # 117380

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
