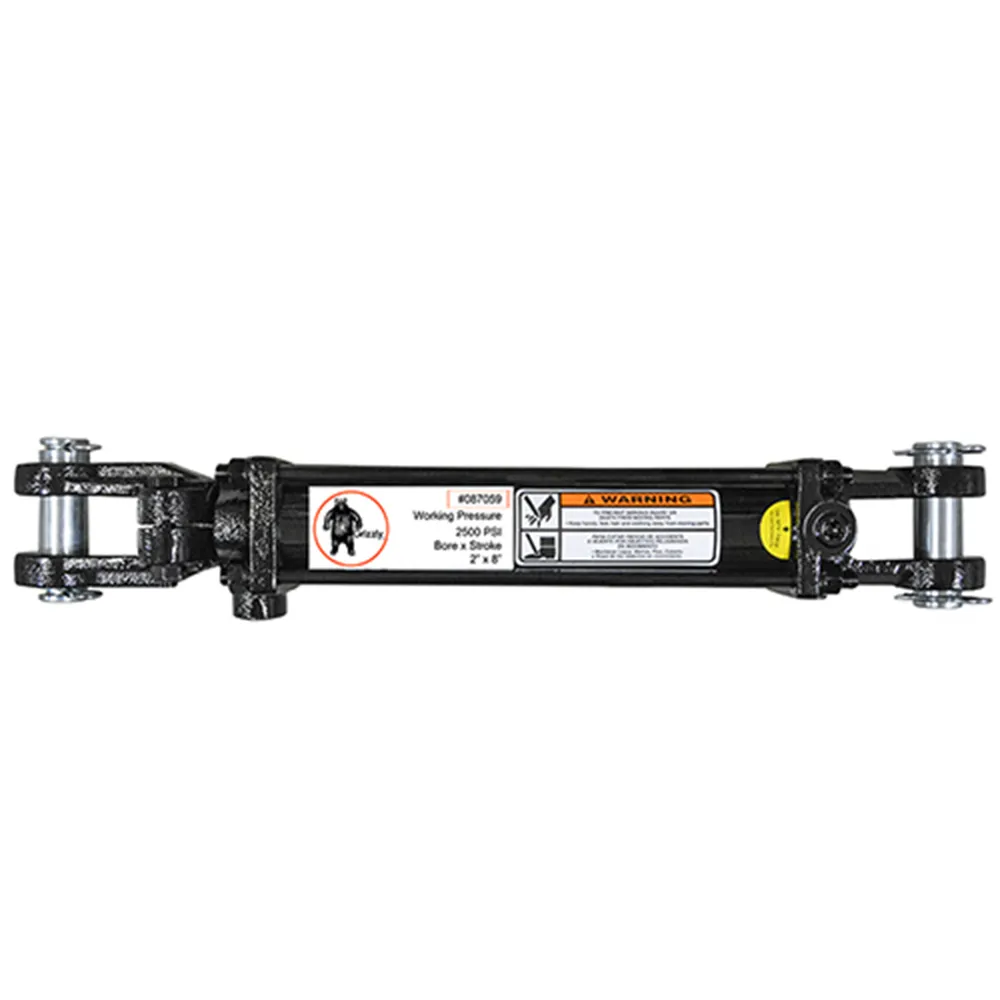

Grizzly® Hydraulic Cylinder 2 x 8

This Grizzly® hydraulic cylinder has a 2" inch bore and a 8" stroke with a retraced length of 18-1/4 inches and an extended length of 26-1/4 inches. Grizzly cylinders are contructed from high strength steel and zinc plated for the tough conditions on the job or farm.

Specifications

• Grizzly® Brand
• Bore: 2"
• Stroke: 8"
• Hydraulic Cylinder
• Rod Diameter: 1-1/8"
• Retracted Length: 18-1/4"
• Extended Length: 26-1/4"
• Pin Diameter: 1"
• Port Size: 3/8" NPTF
• PSI: 2500
• Push lbs.: 7,584
• Pull lbs.: 5,369
• Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
• For the seal kit use ASC # 117380

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
