24,000W PTO Driven Generator

#112268

$3299.99 EA

This PTO driven generator is perfect for an energy source on your farm or work site. With a 3-point hitch frame and included PTO, this generator has 7 receptacles to meet your needs. It is a single-phase PTO driven generator that is rated at 24,000 watts.

-
+
Availability: In Stock -
Due to product size and/or weight, this product must ship via Motor Freight Truck.

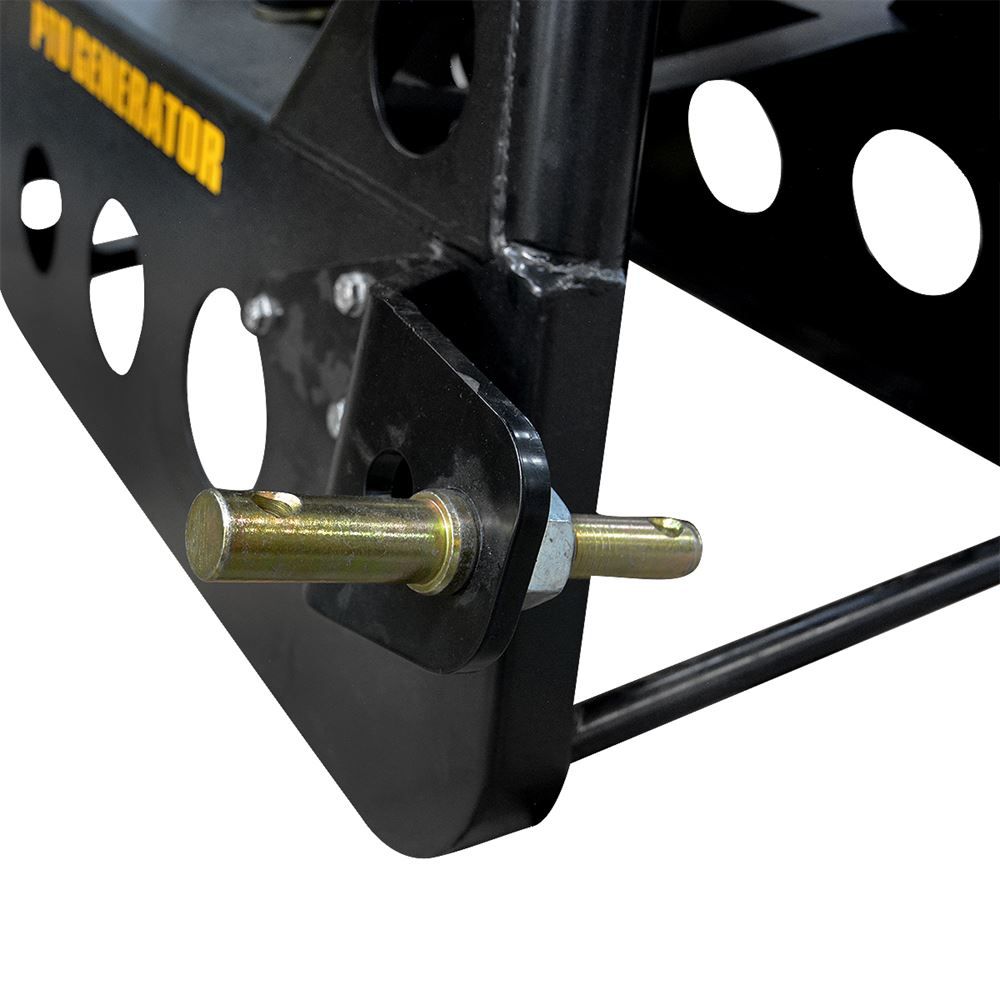

Use this PTO driven generator when you need a power source in remote areas of your farm. Built to run, this generator comes with a 1-3/8 in. 6-spline PTO shaft and a 3 point hitch frame to attach to your tractor. The generator requires 40 HP or more and 540 RPM and higher.

Specification

  • 24,000W PTO Driven Generator
  • Model number: 24KW-PTOG
  • 3-Point hitch frame included
  • Single-phase
  • Rated Watt: 24,000
  • Max Watt: 25,000
  • Power factor: 1.0
  • Rated AC Volts: 120/240
  • Rated Load Current: 200/100 amps
  • Rated Frequency: 60 Hz
  • Power needed: 40 HP or more
  • PTO Drive Speed: 540 RPM
  • PTO Shaft: 1-3/8" spline, 6-spline (included)
  • Gearbox Reduction: single-stageRatio PTO Shaft to Revolving Field Speed: 1 to 3.33
  • Recommended Gearbox Oil: SAE 901 gear lube oil
  • PTO Shaft Lubricant: lithium base grease
  • Length: 44 inches
  • Width: 29.5 inches
  • Height: 43.3 inches
  • Weight: 677 pounds
  • Digital meter readout
