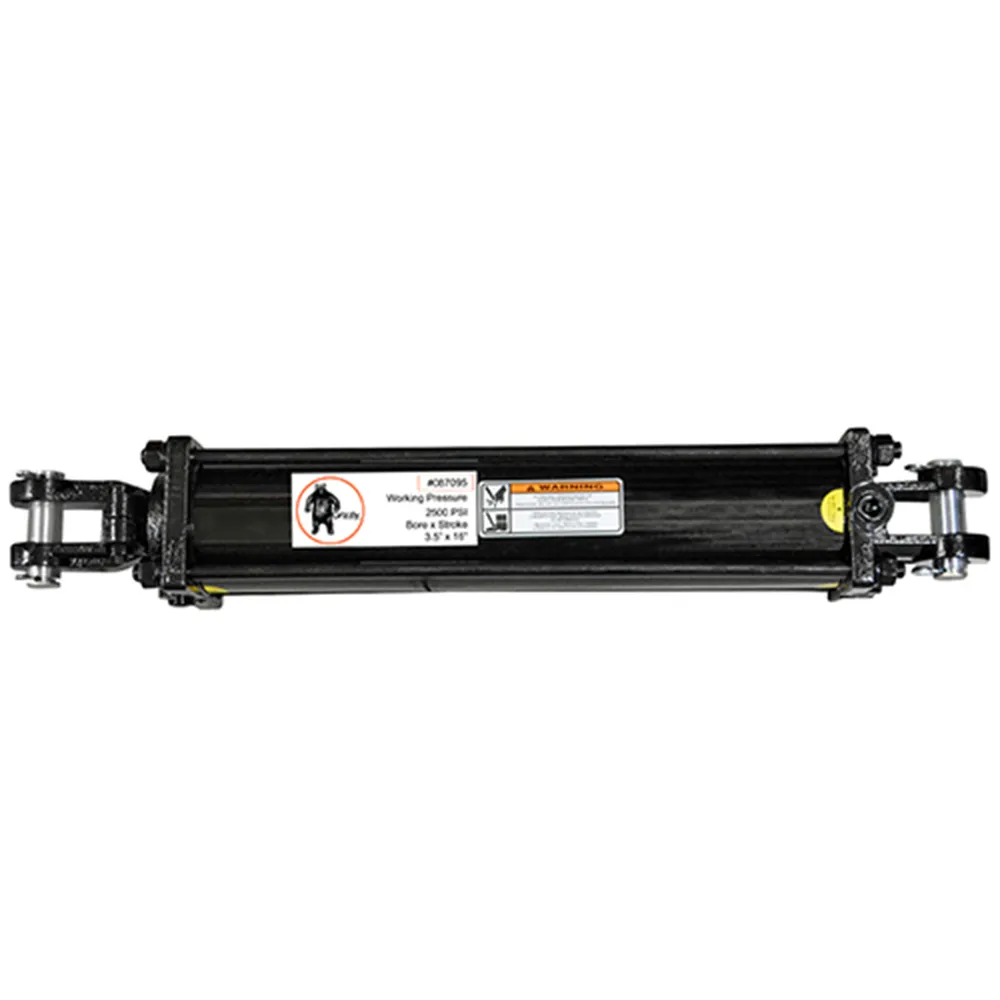

Grizzly® Hydraulic Cylinder 3-1/2 x 16

Grizzly® Hydraulic Cylinder 3-1/2 x 16

Item #87095A
Write a Review
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high-quality performance.
100% Satisfaction Guaranteed
Product Overview

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 3-1/2 in. bore,  a 16 in. stroke, and a retracted length of 26-1/4 in.

Specifications:

  • Grizzly® Brand
  • To fit KMC® Speed Wheel Rolling Cultivator and other equipment
  • Bore: 3-1/2"
  • Stroke: 16"
  • Rod Diameter: 1-1/4"
  • Retracted Length: 26-1/4"
  • Extended Length: 42-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 24,053
  • Pull lbs.: 20,985
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 117383
