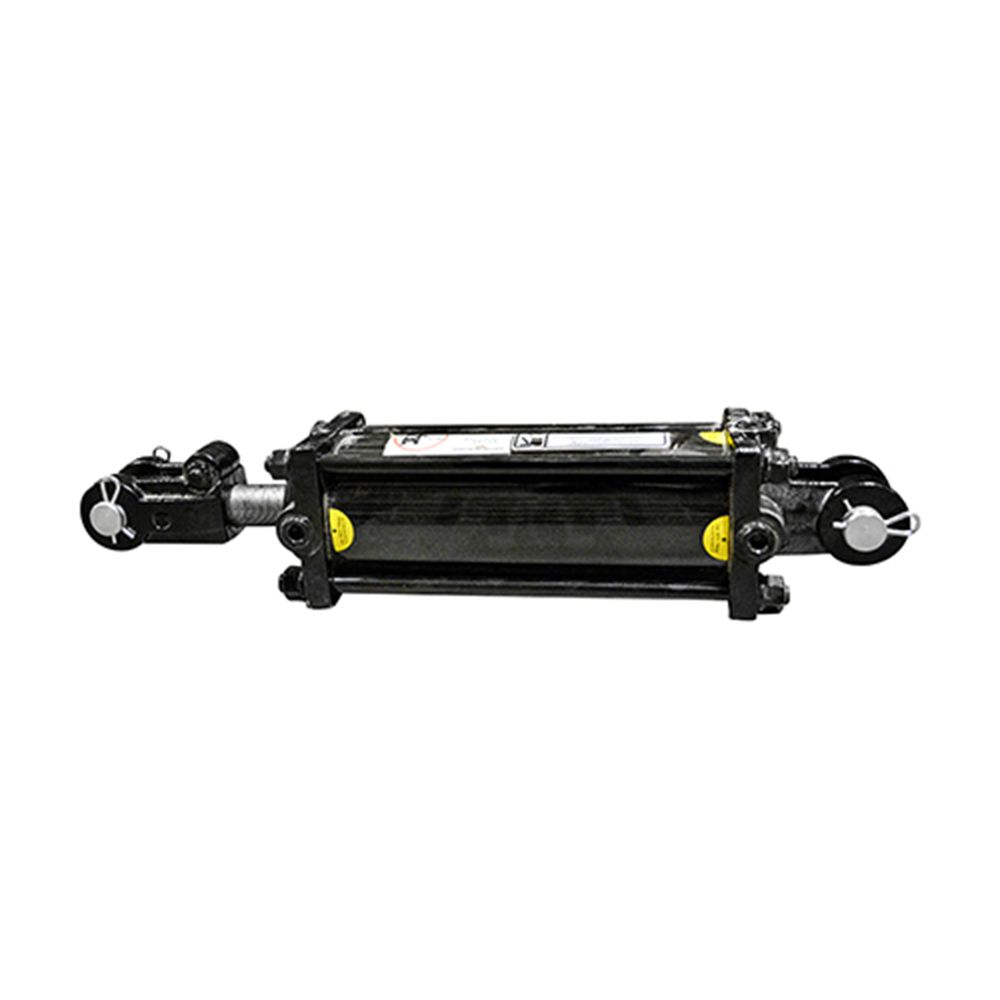

Hydraulic Cylinder 3-1/2 x 8 ASAE 1-1/4 Rod

Hydraulic Cylinder 3-1/2 x 8 ASAE 1-1/4 Rod

Item #87091A
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 3-1/2 in. bore and an 8 in. stroke. The retracted length is 20-1/4 in. and the rod diameter measures 1-1/4 in.
100% Satisfaction Guaranteed
Product Overview

Hydraulic cylinder are constructed of high-strength steel and include tie rods to prevent high pressure failure. This cylinder features a 3-1/2 inch bore with a 8 inch stroke and has a 1" inch pin.

Specifications

  • Hydraulic Cylinder
  • Model number: 87091A
  • Bore: 3-1/2"
  • Stroke: 8"
  • Rod Diameter: 1-1/4"
  • Retracted Length: 20-1/4"
  • Extended Length: 28-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 24,053
  • Pull lbs.: 20,985
  • C95-3508
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
