Grizzly® Hydraulic Cylinder 3-1/2" x 16 ASAE

Grizzly® Hydraulic Cylinder 3-1/2" x 16 ASAE

Item #87094A
Write a Review

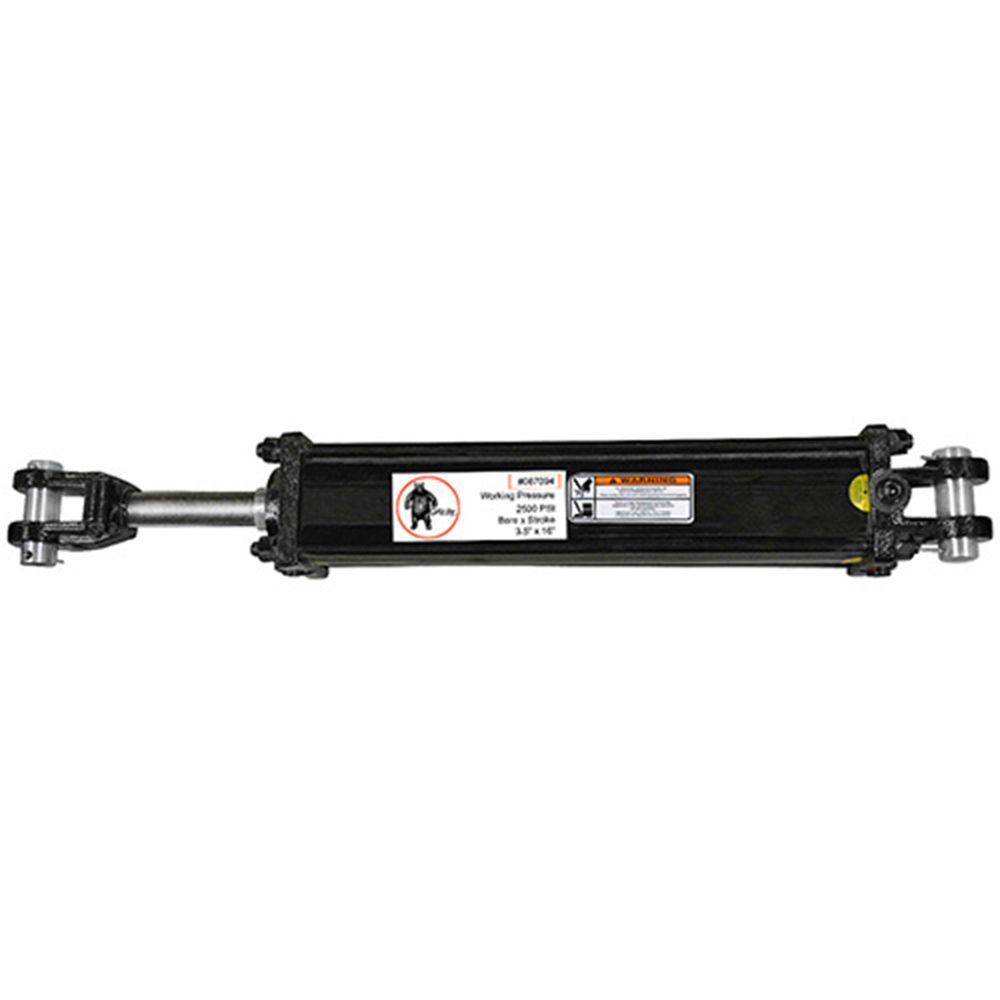

Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 3-1/2 in. bore and an 16 in. stroke. The retracted length is 31-1/2 in. and the rod diameter measures 1-1/2 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
100% Satisfaction Guaranteed
Product Overview

Replace hydraulic cylinders to keep your equipment running. This 3-1/2" x 16" ASAE cylinder has a rod diameter of 47-1/2" and is constructed of high strength steel and includes tie rods to prevent high pressure failure.

Specifications

  • Grizzly® Brand
  • Bore: 3-1/2"
  • Stroke: 16"
  • Rod Diameter: 1-1/2"
  • Retracted Length: 31-1/2"
  • Extended Length: 47-1/2"
  • Pin Diameter: 1-1/4"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 24,053
  • Pull lbs.: 19,635
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 123741

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
