3 Point Linkage Kit

Trivalent White 3 Point Linkage Kit to Fit Kubota / Iseki

Item #106050
Write a Review
Built for Kubota and Iseki tractors, this 3 point hitch linkage kit attaches to the rear. It is compatible with tractors that have a horsepower from 10 to 25. Used for a variety of towing applications, this 3 point kit has 10 pieces.
100% Satisfaction Guaranteed
Product Overview

Designed as a rear tractor 3 point hitch, this linkage kit contains 10 separate pieces. When assembled, this tractor implement is compatible with a horsepower range of 10 HP to 25 HP on most models of Kubota® or Iseki® tractors. This kit includes a pair of the following: leveling arms, lynch - pins with chains and chain stabilizers. It also includes single items, 1 top link with pin, 1 fixed stabilizer, 1 adjustable stabilizer and 1 rod with spacer. The exterior is coated in a paint that can withstand corrosion in outdoor conditions and all parts have been electroplated.

Specifications

  • 3 Pt. Linkage
  • Fits most models of Kubota® or Iseki® tractors that range in horsepower rating of 10 to 25 HP.
  • Trivalent white
  • Lift arm pins are Category 1
  • Kit includes:
    • (2) non-leveling arms
    • (2) lynch pins with chains
    • (2) chain stabilizers
    • (1) top link with pin
    • (1) fixed stabilizer
    • (1) adjustable stabilizer
    • (1) rod with spacer
  • Top link holes are 13" center to center closed
  • Lift arm holes are 20" center to center
  • Connecting Rod holes are 17-1/2" center to center
  • Stabilizer bars 10" center to center
  • Lifting arms holes are 17-12" center to center
  • Parts are electroplated
  • Resistance to corrosion
  • Material: mild steel
  • Weight: 36.2 lbs

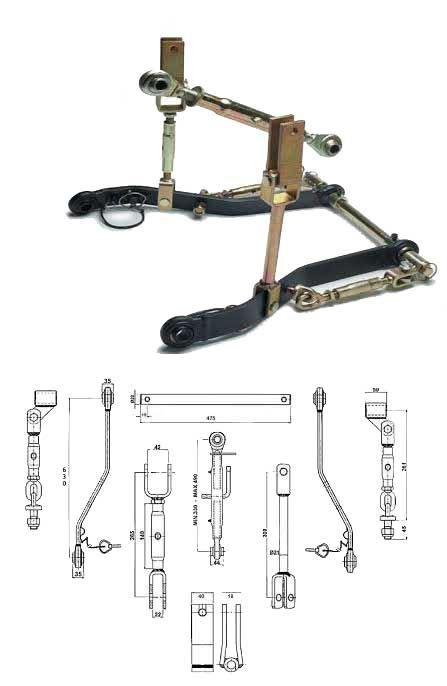

106050 Diagram
