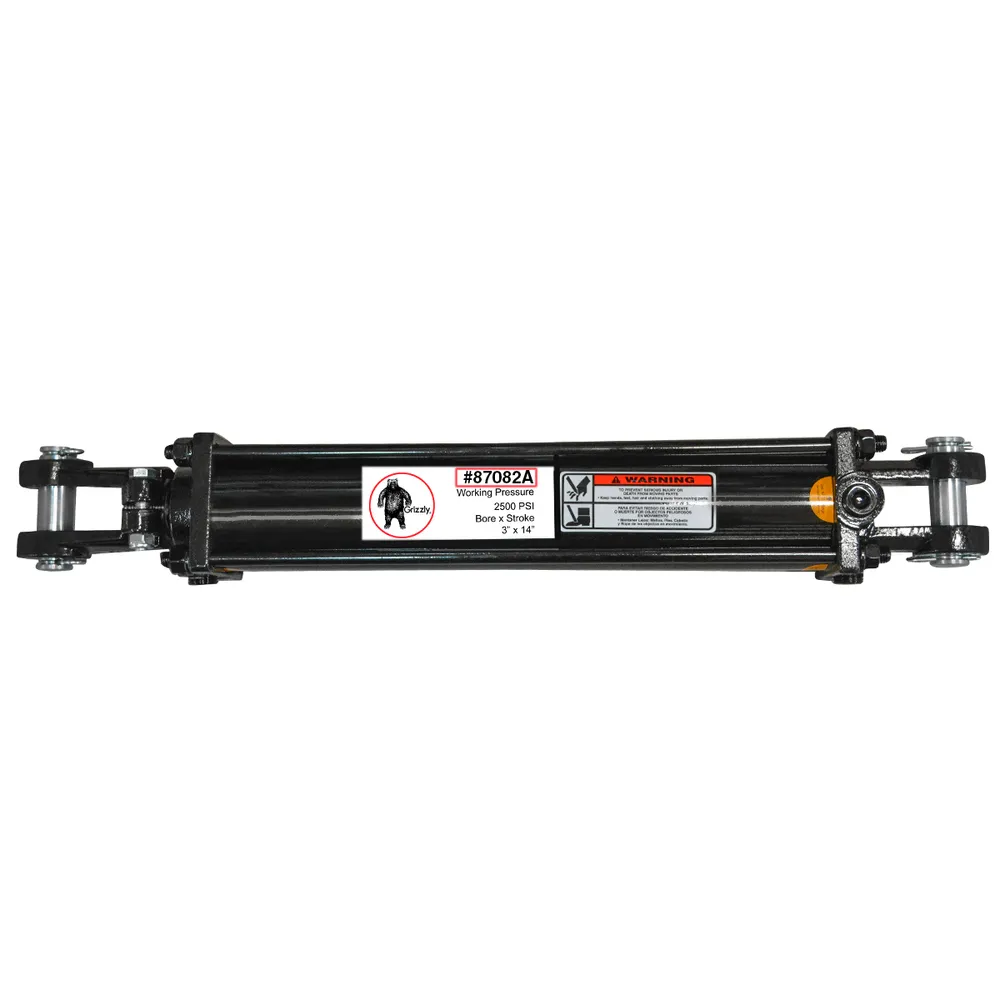

Grizzly® Hydraulic Cylinder 3 x 14

Replace hydraulic cylinders to keep your equipment running. This 3" x 14" cylinder has a rod diameter of 1-1/4" and is constructed of high strength steel and includes tie rods to prevent high pressure failure. With a 3 in. bore and a 14 in. stroke, this cylinder has a retracted length of 24-1/4 in.

Specifications:

• Grizzly® Brand
• Bore: 3"
• Stroke: 14"
• Rod Diameter: 1-1/4"
• Retracted Length: 24-1/4"
• Extended Length: 38-1/4"
• Pin Diameter: 1"
• Port Size: 1/2" NPTF
• PSI: 2500
• Push lbs.: 17,671
• Pull lbs.: 14,603
• Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
• For the seal kit use ASc # 117381

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
