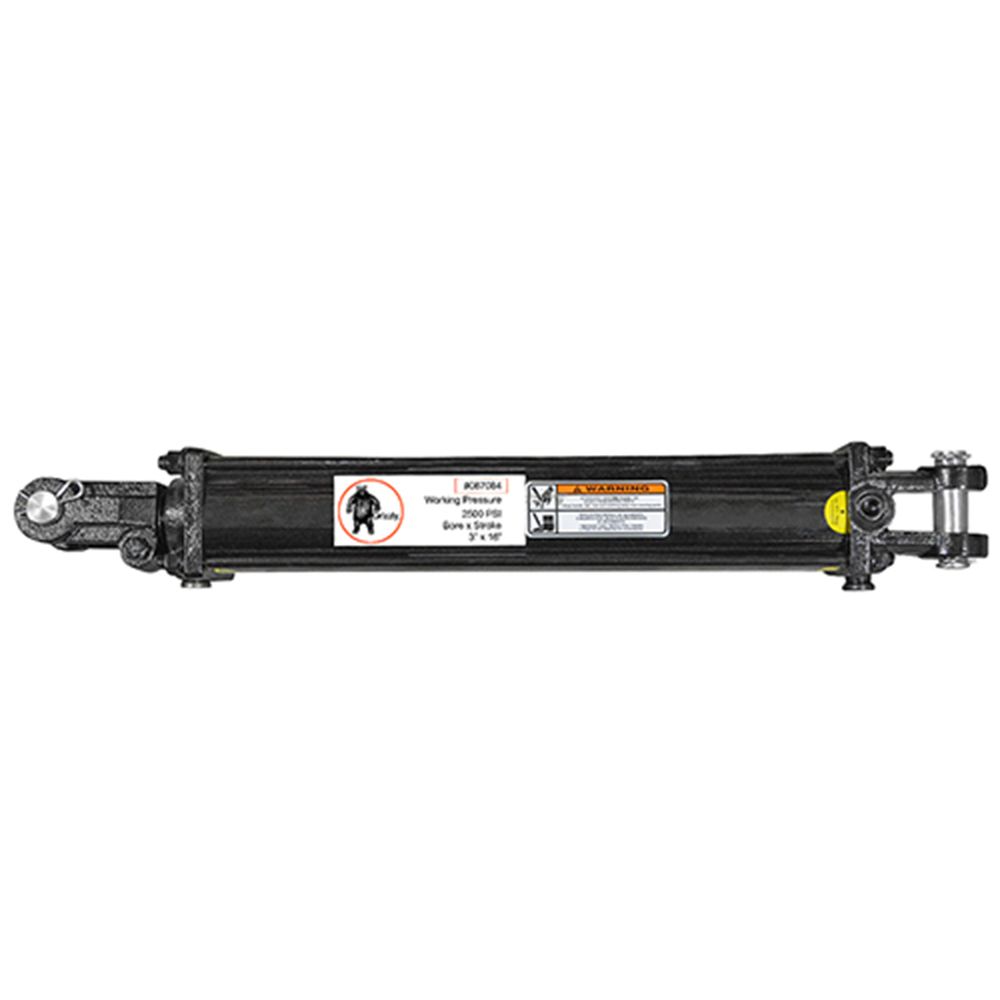

Grizzly® Hydraulic Cylinder 3 x 16

Grizzly® Hydraulic Cylinder 3 x 16

Item #87084A
Write a Review
Use this Grizzly® hydraulic cylinder for agricultural applications with a working pressure of 2500 PSI. Designed for high quality performance, this cylinder has a 3 in. bore and an 16 in. stroke with a retracted length of 26-1/4 in.
100% Satisfaction Guaranteed
Product Overview

This Grizzly® hydraulic cylinder has a 3" inch bore and a 16" stroke with a retraced length of 26-1/4 inches and an extended length of 42-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for the tough conditions on the job or farm.

Specifications:

  • Grizzly® Brand (replaces #87084)
  • Bore: 3"
  • Stroke: 16"
  • Rod Diameter: 1-1/4"
  • Retracted Length: 26-1/4"
  • Extended Length: 42-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 17,671
  • Pull lbs.: 14,603
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 117381

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
