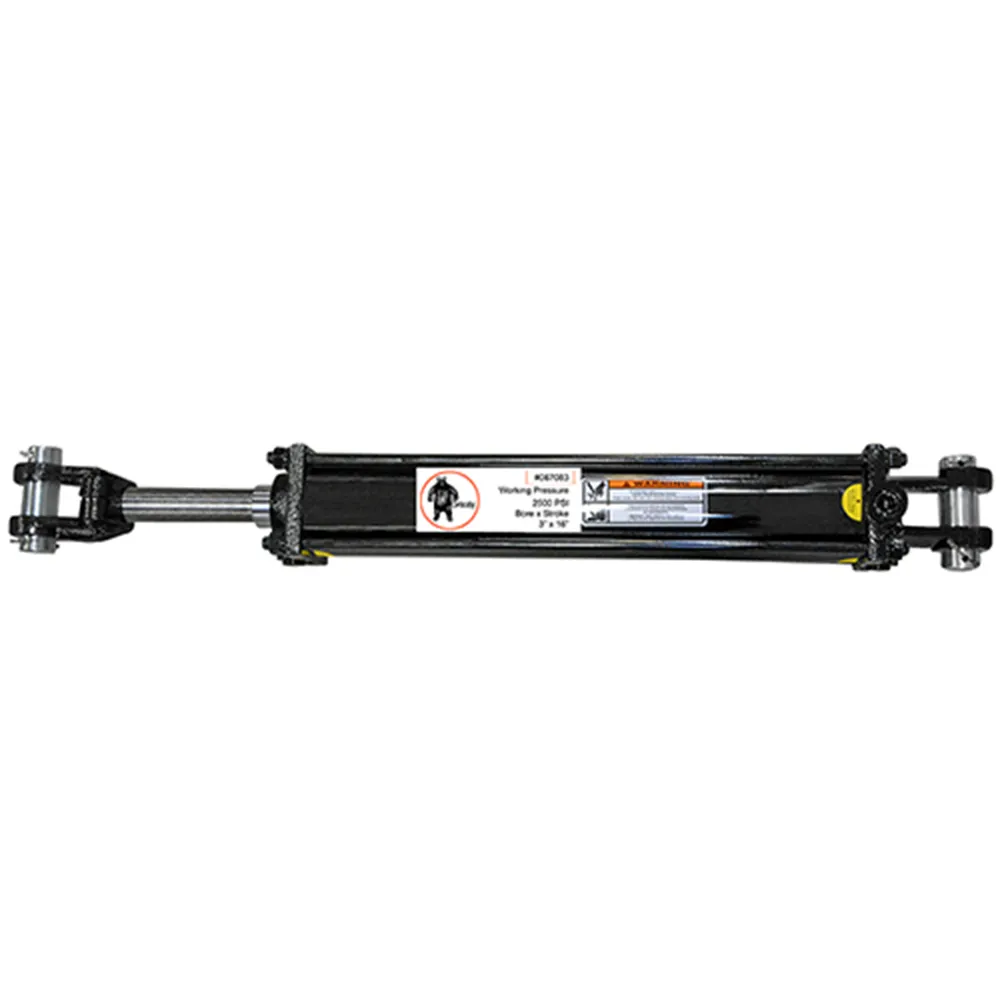

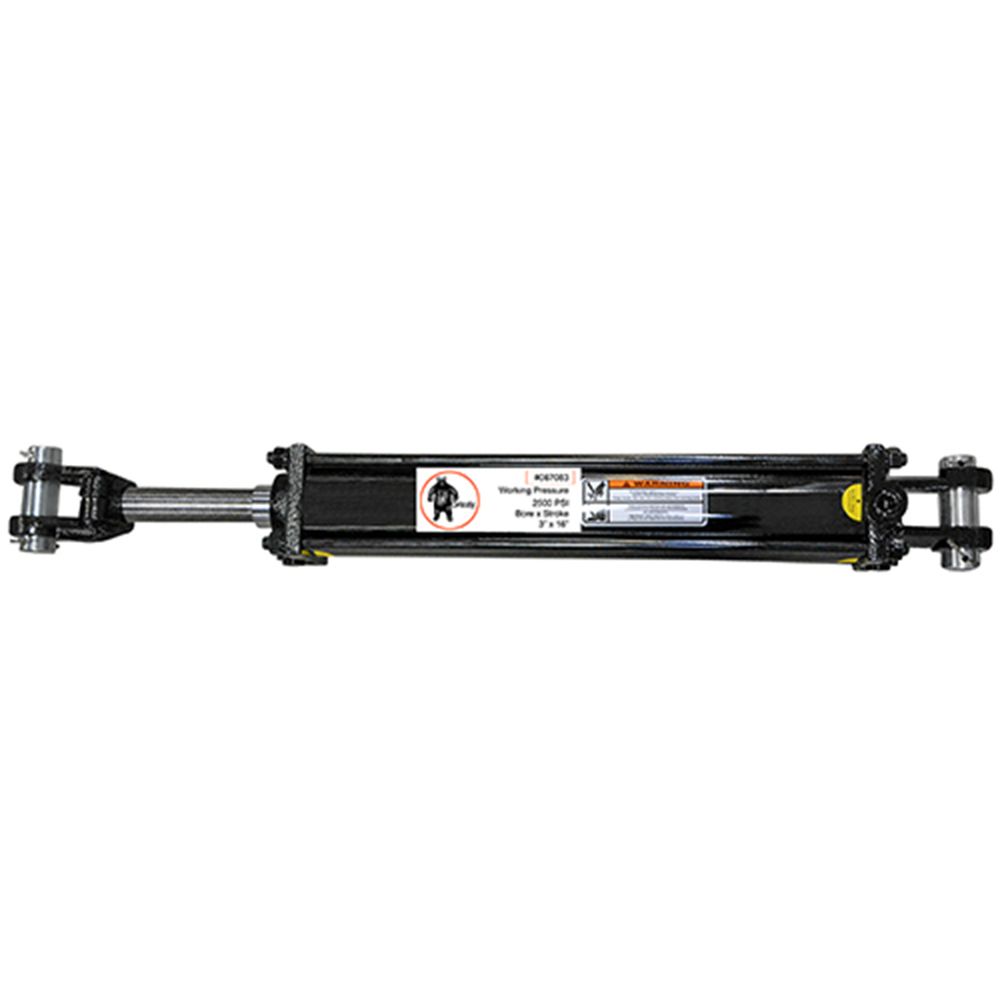

Grizzly® Hydraulic Cylinder 3 x 16 ASAE
Item #87083A
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 3 in. bore and a 16 in. stroke. The retracted length is 31-1/2 in. and the rod diameter measures 1-1/2 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
Product Overview
Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high-pressure failure. This cylinder features a 3" inch bore with a 16" inch stroke and has a 1-1/4" inch pin.
Specifications:
- Grizzly® Brand
- Bore: 3"
- Stroke: 16"
- Rod Diameter: 1-1/2"
- Retracted Length: 31-1/2"
- Extended Length: 47-1/2"
- Pin Diameter: 1"
- Port Size: 1/2" NPTF
- PSI: 2500
- Push lbs.: 17,671
- Pull lbs.: 13,254
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC # 117382
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
