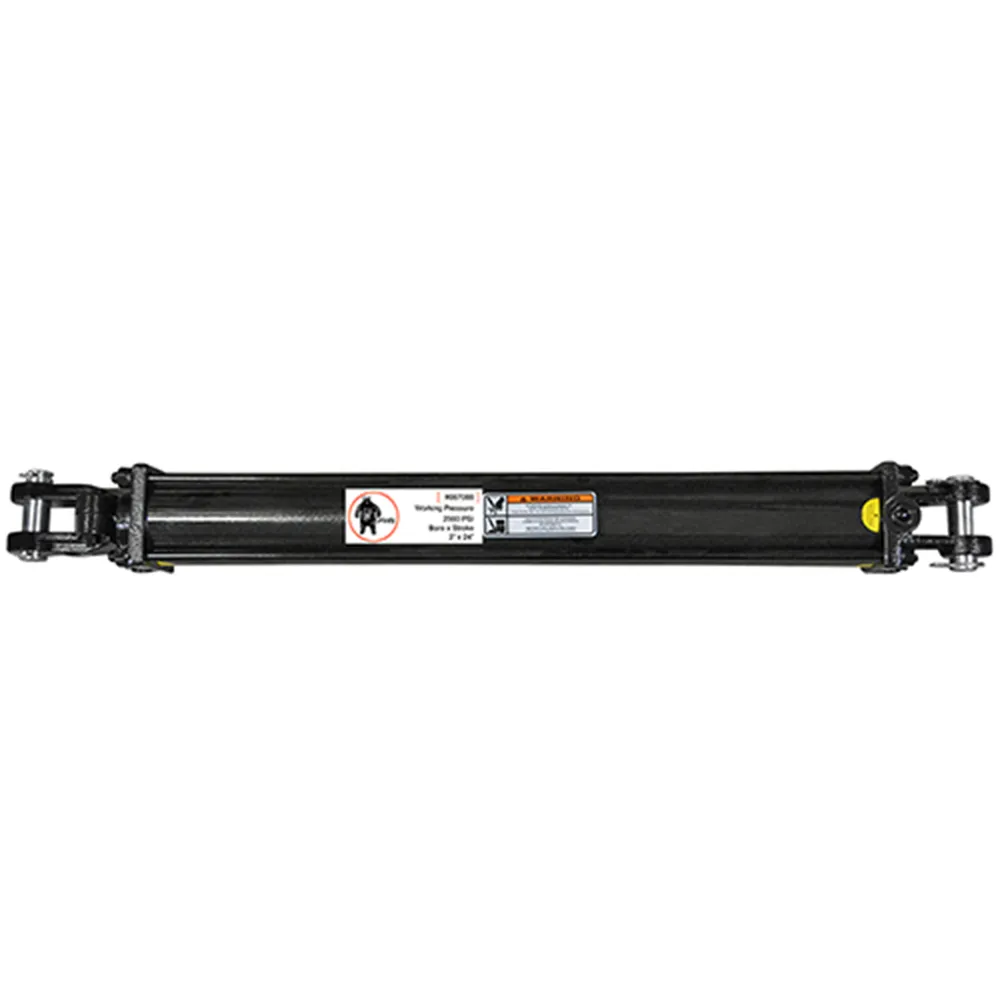

Grizzly® Hydraulic Cylinder 3 x 24

This Grizzly® hydraulic cylinder has a 3" inch bore and a 24" stroke with a retraced length of 34-1/4 inches and an extended length of 58-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for tough conditions on the job or farm.

Specifications:

• Grizzly Brand
• Bore: 3"
• Stroke: 24"
• Rod Diameter: 1-1/2"
• Retracted Length: 34-1/4"
• Extended Length: 58-1/4"
• Pin Diameter: 1"
• Port Size: 1/2" NPTF
• PSI: 2500
• Push lbs.: 17,671
• Pull lbs.: 13,254
• Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
• For the seal kit use ASC # 117382

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
