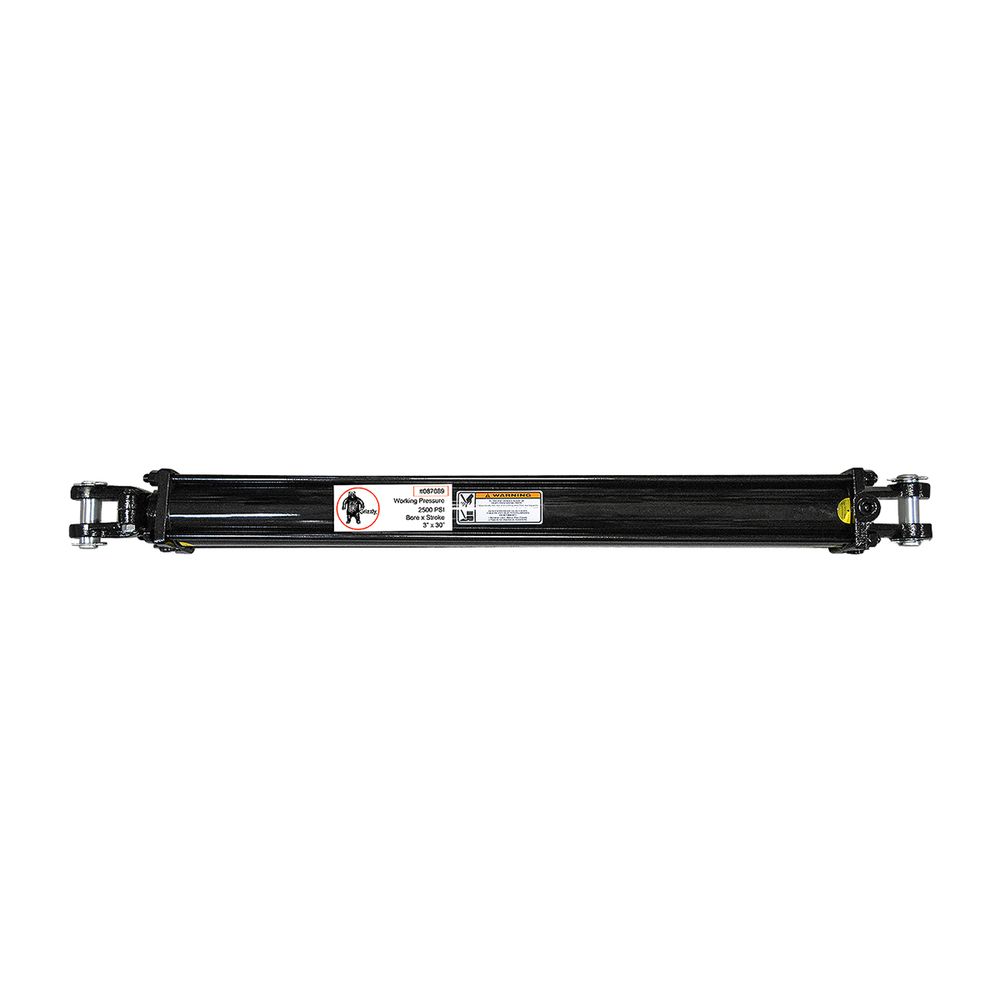

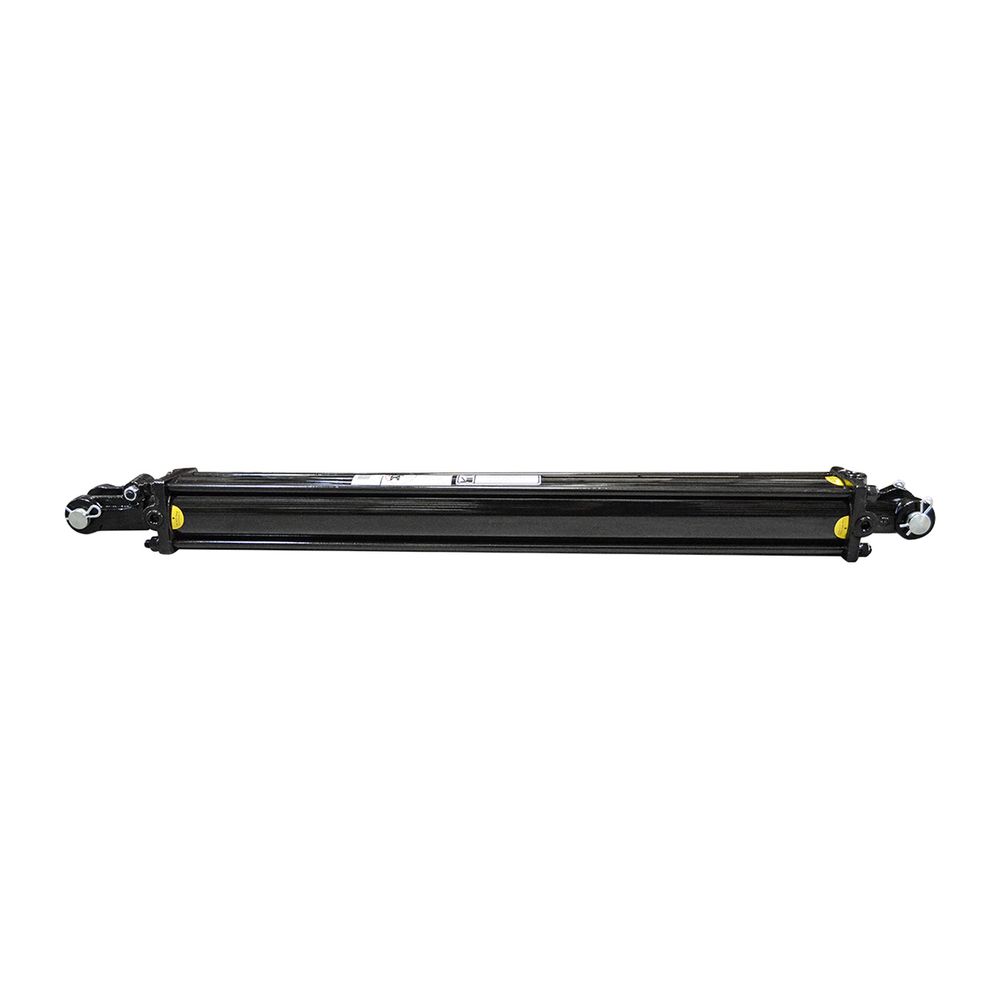

Grizzly® Hydraulic Cylinder 3 x 30
Grizzly® Hydraulic Cylinder 3 x 30

Grizzly® Hydraulic Cylinder 3 x 30

Item #87089A
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 3 in. bore and a 30 in. stroke. The retracted length is 40-1/4 in. and the rod diameter measures 1-1/2 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
100% Satisfaction Guaranteed
Product Overview

Replace hydraulic cylinders to keep your equipment running. This 3" x 30" cylinder has a rod diameter of 1-1/2" and is constructed of high strength steel and includes tie rods to prevent high pressure failure.

Specifications:

  • Grizzly® Brand
  • Bore: 3"
  • Stroke: 30"
  • Rod Diameter: 1-1/2"
  • Retracted Length: 40-1/4"
  • Extended Length: 70-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 17,671
  • Pull lbs.: 13,254
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASc # 117382

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
