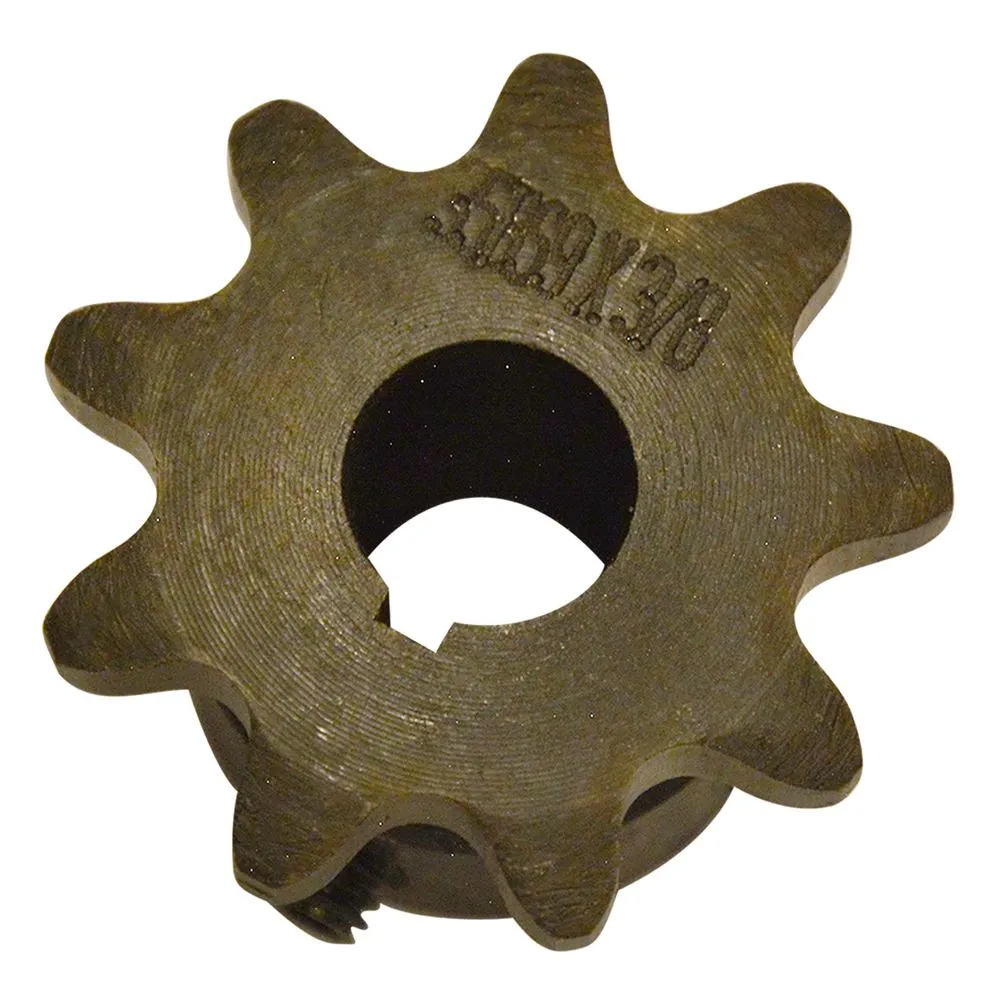

Roller Chain Sprocket with Keyway, 9 Teeth, 35 Lbs.

Maintain chain driven machinery with the help of a new roller sprocket. This steel constructed sprocket wheel has 9 teeth and may use a size 35 roller chain. The sprocket wheel has an outside diameter of 1-1/4 inches, with a central round bore running through the sprocket wheel. The bore measures 3/8 inches W and 3/4 inches L. For an easy installation, there are 2 screw holes located at 90 degrees and has a set screw size of 1/4- 20 x 1/4. There are a variety of other sized chain sprockets available.

• Sprocket
• Construction: Steel
• Induction hardened teeth: 9
• Round bore
• Keyway: 1/8 in., x 1/16 in.,
• Bore: 3/8 inches
• Bore length: 3/4 inches
• Outside diameter: 1 -1/4 inches
• Chain size: 35
• Screw location: 2 holes at 90 degrees
• Set screw size: 1/4- 20 x 1/4
