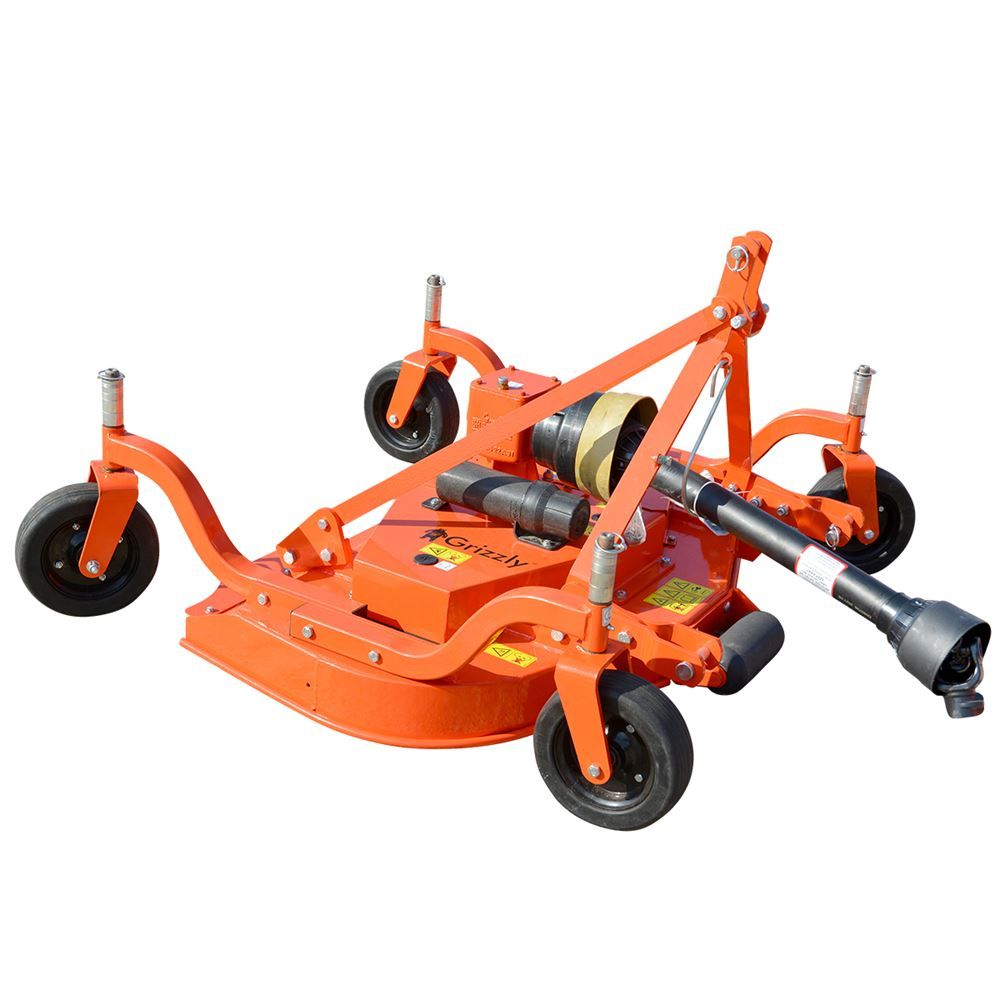

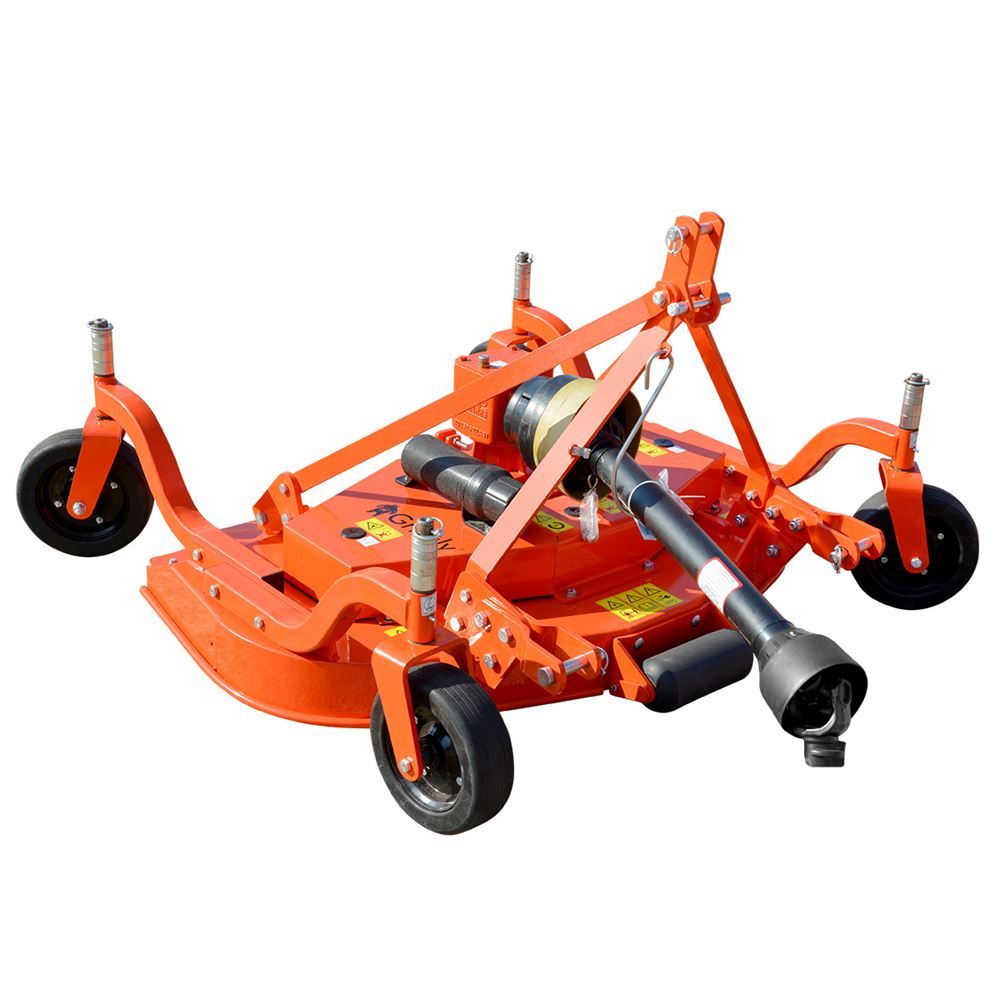

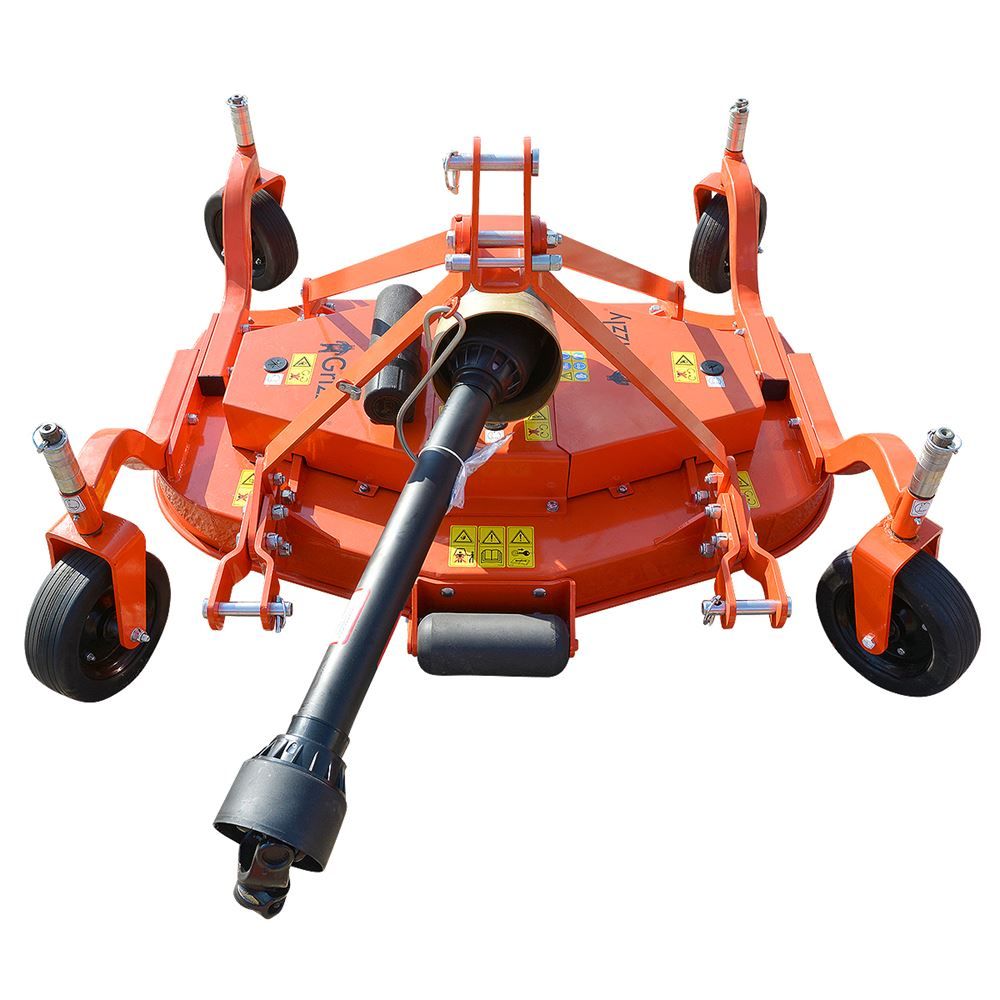

Grizzly® 4' Rear Discharge Estate Mower

Specifications:

• Model Number: SGM-48
• Cutting width: 4'
• Weight: 448 lbs.
• Input RPM: 540
• Hitch: Category 1
• Tractor HP: 20-50
• Cutting height: 3/4" - 4 1/3"
• Cutting height is adjusted with spacers on the wheel forks
• Deck Thickness: 3/16"
• Number of Blades: 3
• Blade overlap: 1"
• Blade tip speed: 13,681 feet per minute
• Front anti-scalping roller standard
• Utilizes 2 belts
• Three-point hitch can be configured to be free floating or fixed
• Blade spindles are greasable
• Wheels: 10"x3.25" solid rubber
• For replacement blades use ASC # 124888
• For replacement Top Hitch Support LH use ASC # 133663
• For replacement Top Hitch Support RH use ASC # 133673
• For replacement Top Hitch RH use ASC # 133668
• For Front Roller Bracket use ASC # 133669
• For Front Roller Rod Axle use ASC # 133670
• For Square Neck Bolt M10 x 1.5 x 30 use ASC # 133671
• For Nylock Nut use ASC # 133672
• For Gearbox Assembly Gasket #18 use ASC # 134320
• For replacement belts, use qty 1 of 126958 - 60 inch Belt (Set of 2)
• For the replacement spindle assembly use ASC # 124894
• For replacement wheel fork, use ASC# 124901
• For models made before 4-27-24, use this breakdown
