Grizzly® Hydraulic Cylinder 4 x 12
Grizzly® Hydraulic Cylinder 4 x 12

Grizzly® Hydraulic Cylinder 4 x 12

Item #87103A
Write a Review

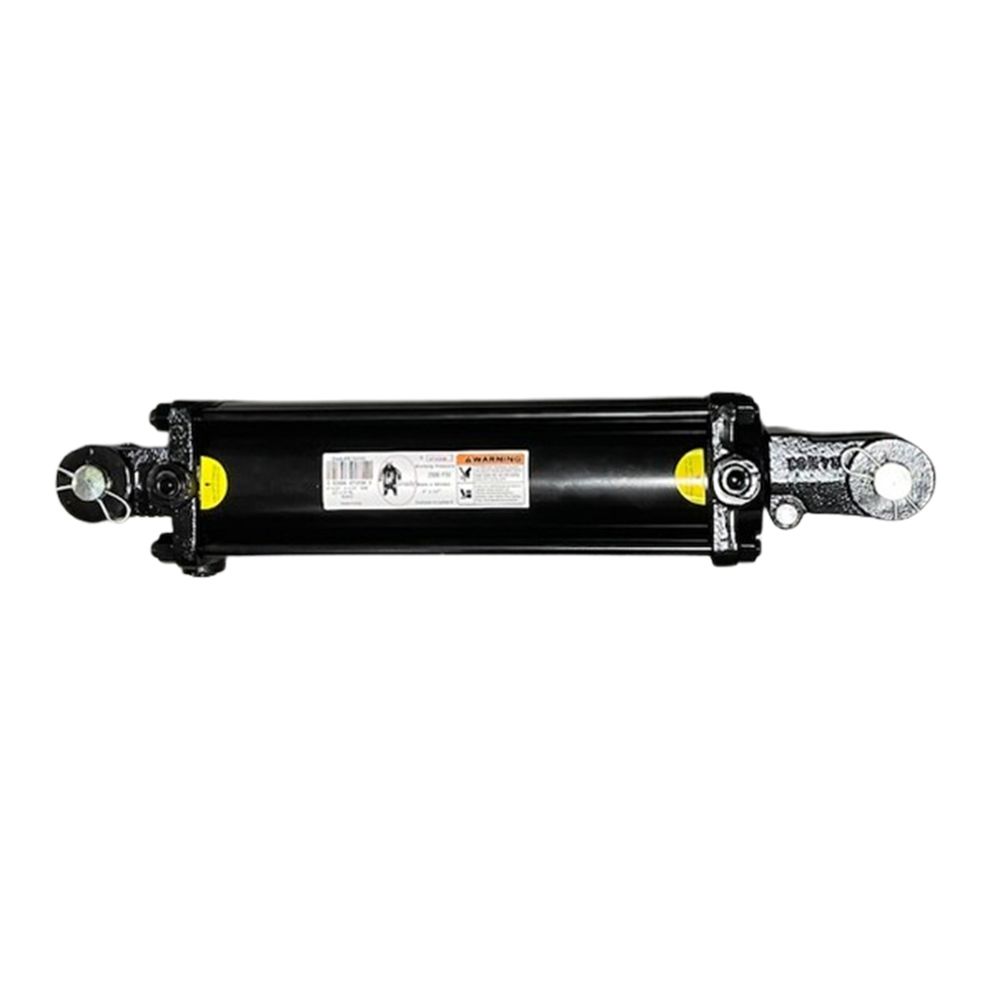

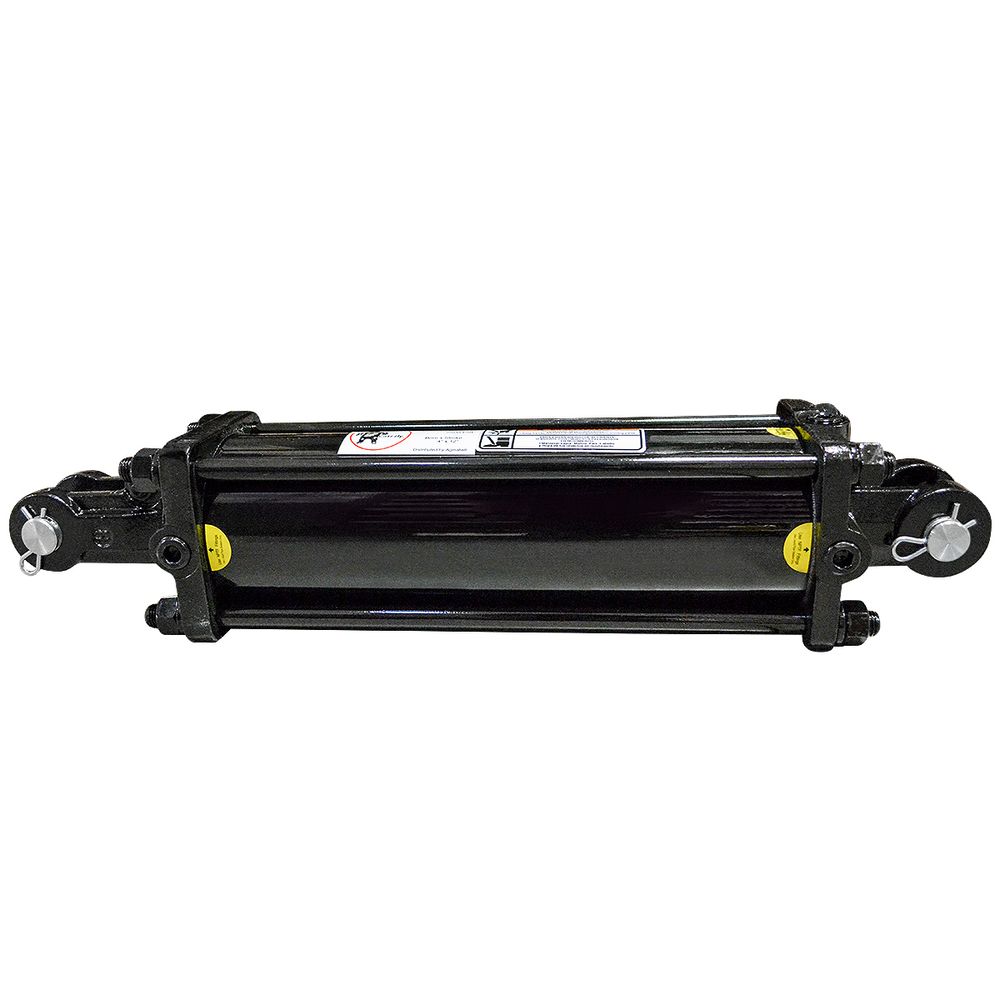

Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 4 in. bore and an 12 in. stroke. The retracted length is 22-1/4 in. and the rod diameter measures 1-1/2 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
100% Satisfaction Guaranteed
Product Overview

This Grizzly® hydraulic cylinder has a 4-inch bore and a 12 stroke with a retraced length of 22-1/4 inches and an extended length of 34-1/4 inches. Grizzly cylinders are constructed from high-strength steel and zinc plated for tough conditions on the job or farm.

Specifications

  • Grizzly® Brand
  • Model number: T25401212
  • Bore: 4"
  • Stroke: 12"
  • Rod Diameter: 1-1/2"
  • Retracted Length: 22-1/4"
  • Extended Length: 34-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 31,416
  • Pull lbs.: 26,998
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
  • For the seal kit use ASC # 117385

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
