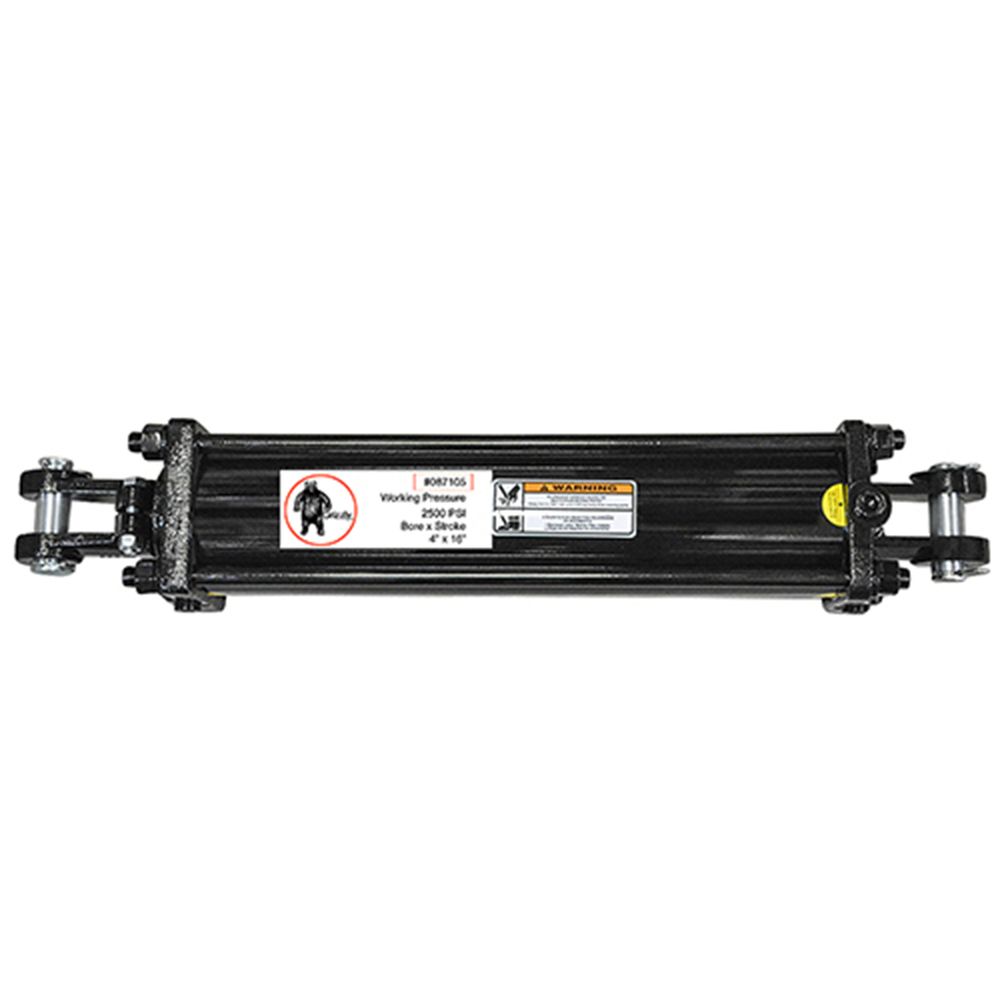

Grizzly® Hydraulic Cylinder 4 x 16

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 4" inch bore with a 16" inch stroke, 1" inch pin, and a retracted length of 26-1/4 in.

Specifications:

• Grizzly Brand®
• Model number: T25401612
• Bore: 4"
• Stroke: 16"
• Rod Diameter: 1-1/2"
• Retracted Length: 26-1/4"
• Extended Length: 42-1/4"
• Pin Diameter: 1"
• Port Size: 1/2" NPTF
• PSI: 2500
• Push lbs.: 31,416
• Pull lbs.: 26,998
• Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
• For the seal kit use ASC # 117385
