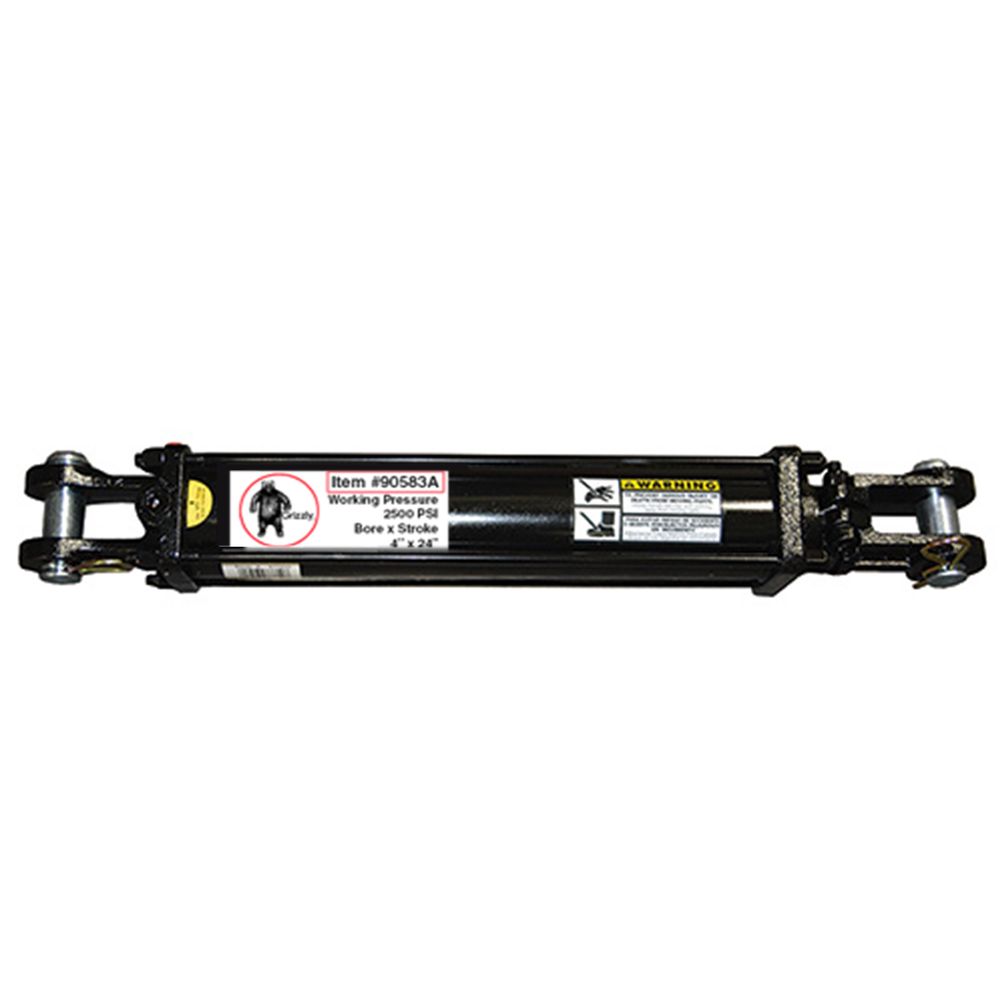

Hydraulic Cylinder, 4 In. Bore, 24 In. Stroke
Item #90583A
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 4 in. bore and a 24 in. stroke. The retracted length is 34-1/4 in. and the rod diameter measures 1-1/2 in.
Product Overview
Specifications
- Hydraulic Cylinder
- Model number: 90583A
- Bore x Stroke: 4 in. x 24 in.
- Rod Diameter: 1-1/2 in.
- Retracted Length: 34-1/4 in.
- Pin: 1 in.
- Port: 1/2 in.
- PSI: 2500
- Color: Black
- Push lbs.: 31,416
- Pull lbs.: 26,998
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
