Hydraulic Cylinder 4 x 48 with 2 Rod

Hydraulic Cylinder 4" x 48" with 2" Rod

Item #87109A
Write a Review

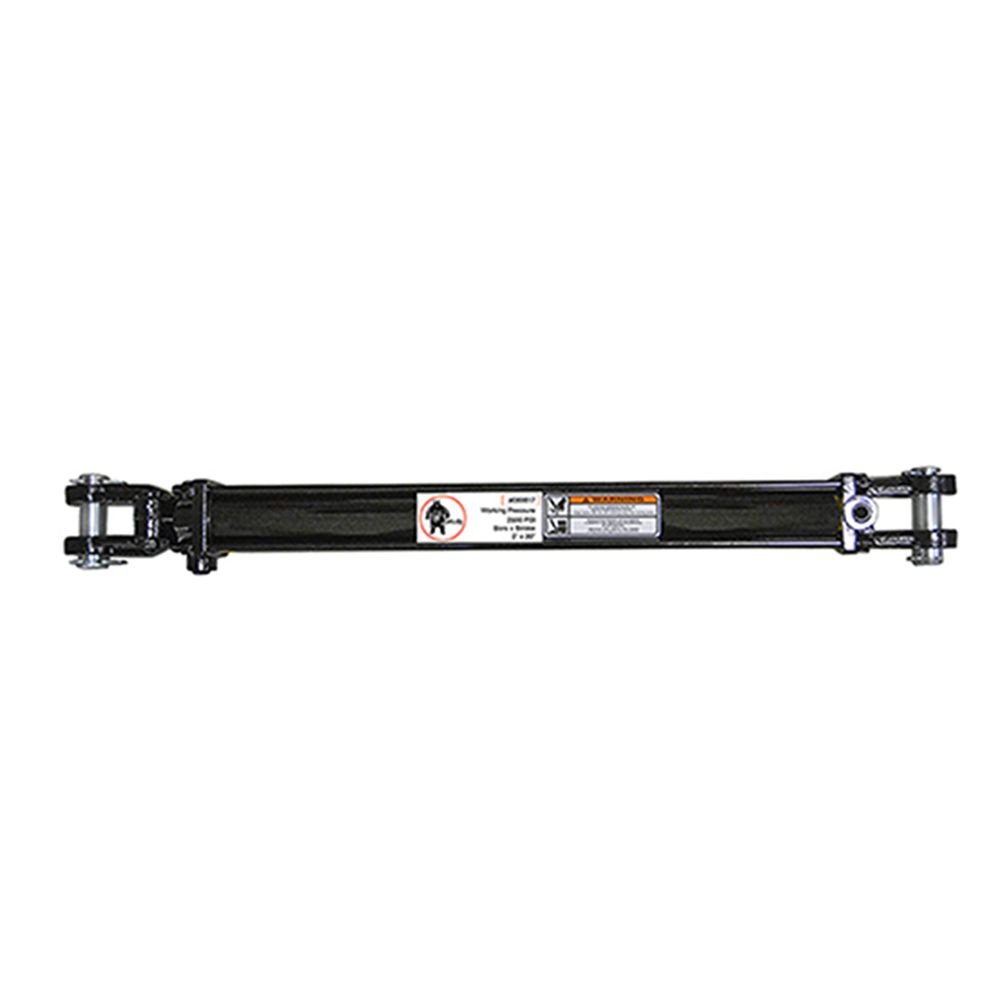

Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 4 in. bore and an 48 in. stroke. The retracted length is 58-1/4 in. and the rod diameter measures 2 in.
Due to product size and/or weight, this product ships via Motor Freight Truck only.
100% Satisfaction Guaranteed
Product Overview

Hydraulic cylinders are constructed of high-strength steel and include tie rods to prevent high-pressure failure. This cylinder features a 4-inch bore with a 24-inch stroke and has a 1-inch pin.

Specifications

  • Hydraulic Cylinder
  • Model number: 87109A
  • Bore: 4"
  • Stroke: 48"
  • Rod Diameter: 2"
  • Retracted Length: 58-1/4"
  • Extended Length: 106-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 31,416
  • Pull lbs.: 23,562
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
