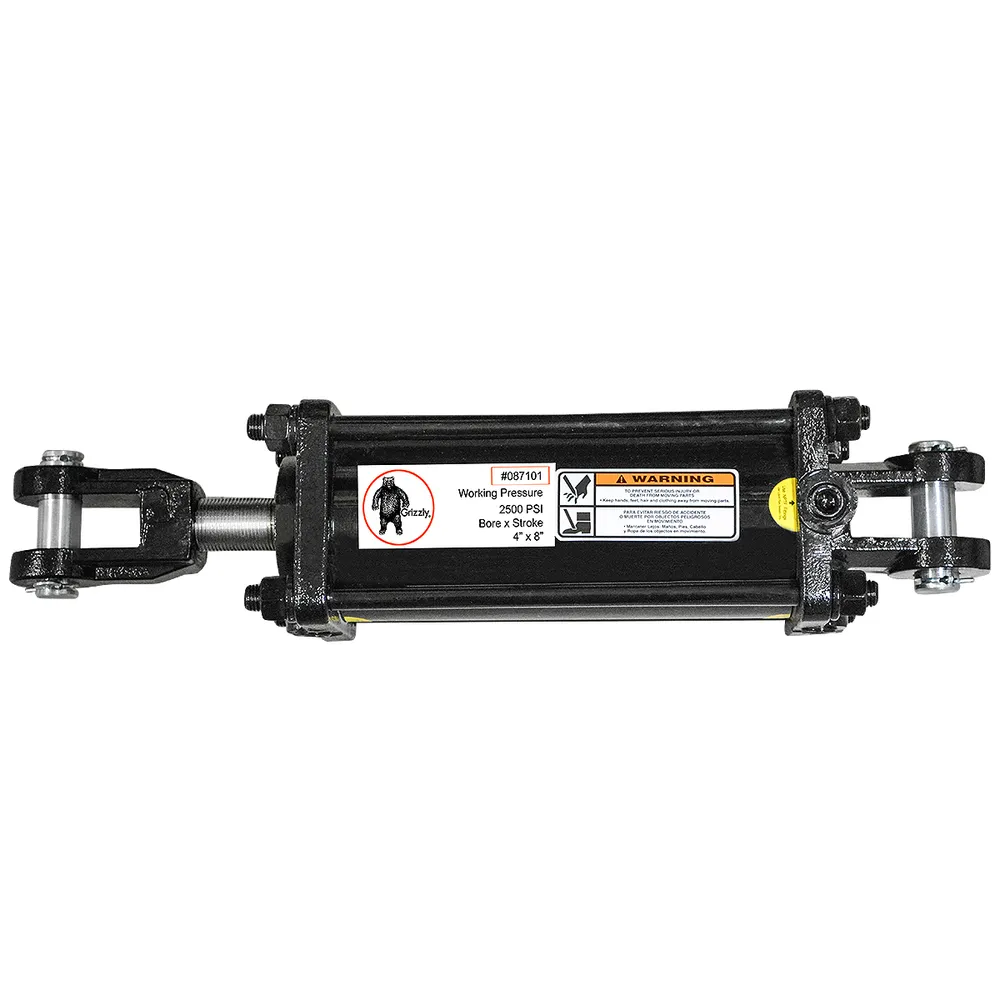

Grizzly® Hydraulic Cylinder 4 x 8

This Grizzly® hydraulic cylinder has 4 inch bore and a 8" stroke with a retracted length of 20-1/4 inches and an extended length of 28-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for the tough conditions on the job or farm.

Specifications

• Grizzly® Brand
• Bore: 4"
• Stroke: 8"
• Rod Diameter: 1-1/4"
• Retracted Length: 20-1/4"
• Extended Length: 28-1/4"
• Pin Diameter: 1"
• Port Size: 1/2" NPTF
• PSI: 2,500
• Push lbs.: 31,416
• Pull lbs.: 28,348
• C95-4008
• Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
• To fit: KBH Liquid Applicator & many other agricultural implements
• For the seal kit use ASC # 117384

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
