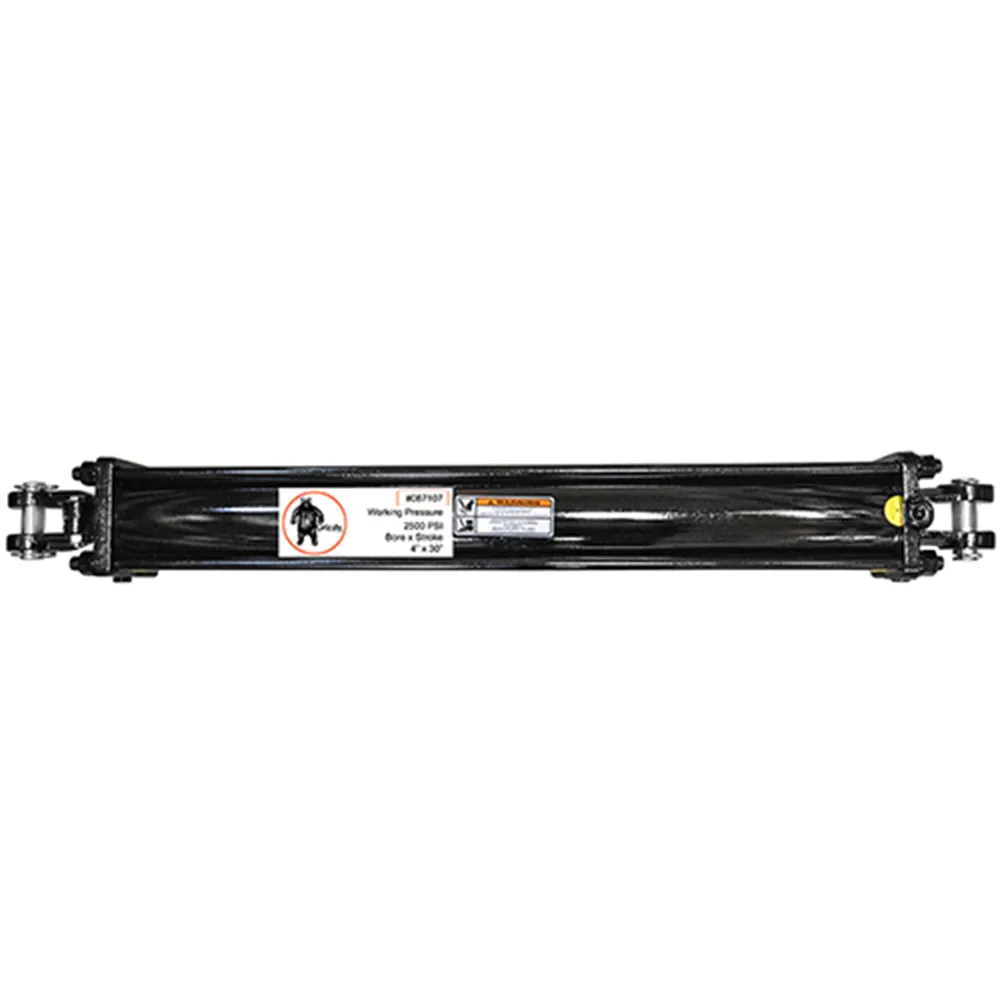

Grizzly® Hydraulic Cylinder 4 x 30
Item #87107A
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 4 in. bore and a 30 in. stroke. The retracted length is 40-1/4 in. and the rod diameter measures 2 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
Product Overview
This Grizzly® hydraulic cylinder has a 4" inch bore and a 30" stroke with a retraced length of 40-1/4 inches and an extended length of 70-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for tough conditions on the job or farm.
Specifications:
- Grizzly® Brand
- Bore: 4"
- Stroke: 30"
- Rod Diameter: 2"
- Retracted Length: 40-1/4"
- Extended Length: 70-1/4"
- Pin Diameter: 1"
- Port Size: 1/2" NPTF
- PSI: 2500
- Push lbs.: 31,416
- Pull lbs.: 23,562
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC # 123742
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
