Roller Chain Sprocket, 18 Teeth, 40 Lbs.

Item #108105
Write a Review
For farm machinery or utility equipment that is chain driven. Be sure to replace worn out chain sprockets to keep the motion running smoothly. This chain sprocket is constructed from steel with 18 teeth and requires a size 40 roller chain.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

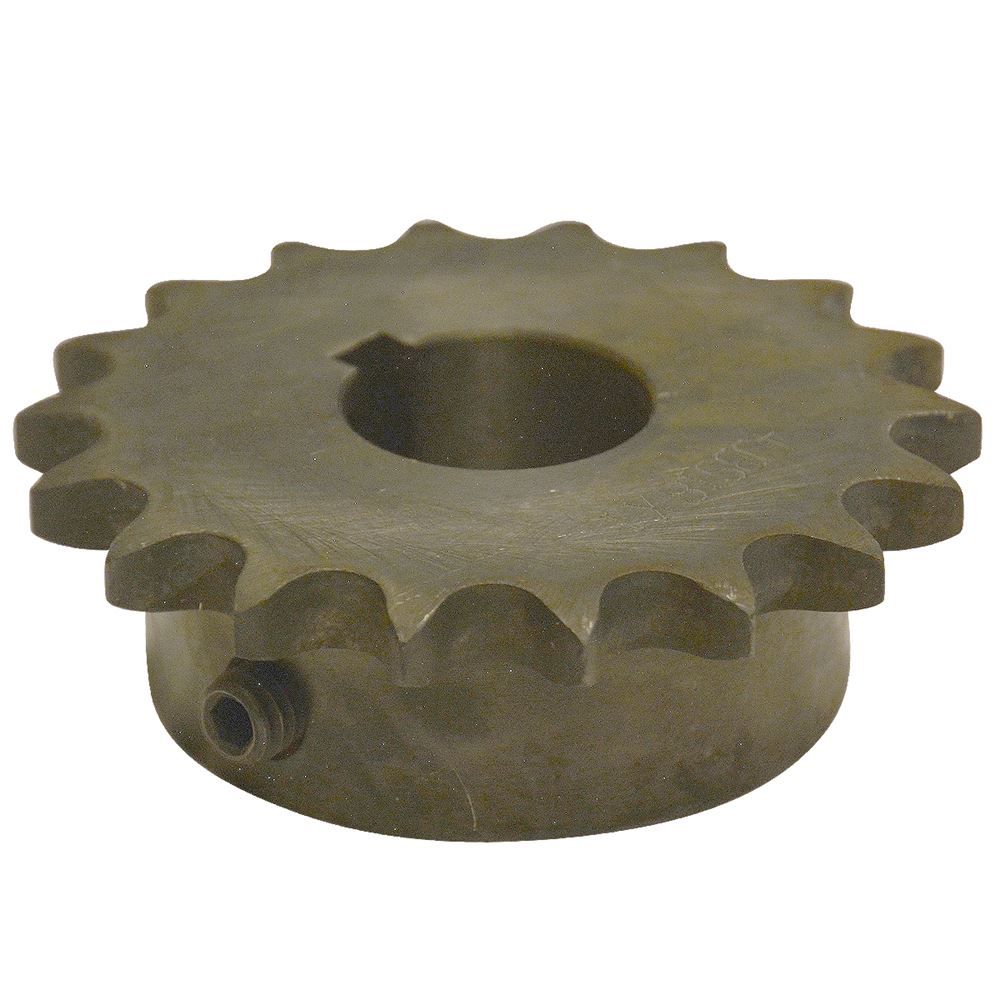

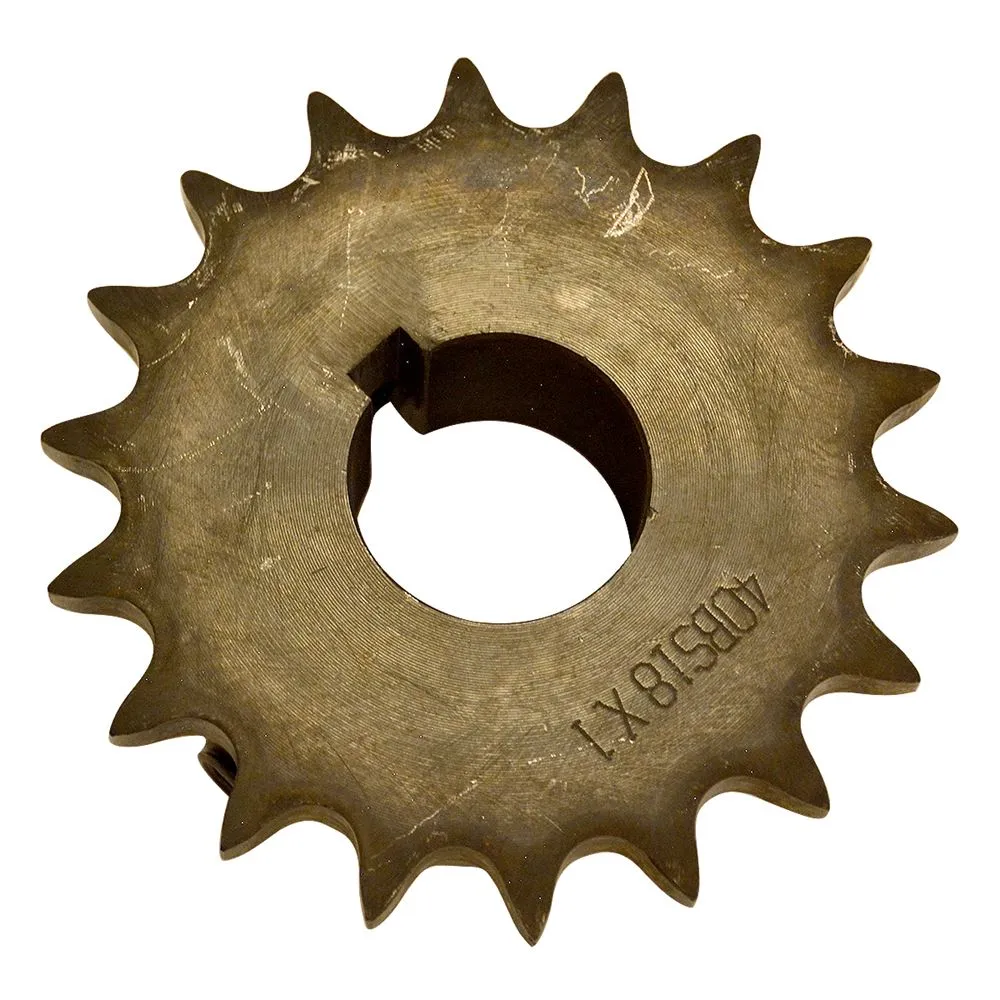

Maintain chain driven machinery with the help of a new roller sprocket. This steel constructed sprocket wheel has 18 teeth and may use a size 40 roller chain. The sprocket wheel has an outside diameter of 3-7/50 in., with a central round bore running through the sprocket wheel. The bore measures 1 in., W and 1 in., L. For easy installation, there are 2 screw holes with 1 located over Kw and the other at 90 degrees, with a set screw size of 1/4- 20 x 1/4. There are a variety of different sized chain sprockets available.

Specifications
  • Sprocket
  • Construction: Steel
  • Induction hardened teeth: 18
  • Round bore
  • Keyway: 1/4 in., x 1/8 in.,
  • Bore: 1 in.,
  • Bore length: 1 in.,
  • Outside diameter: 3-7/50 in.,
  • Chain size: 40
  • Screw location: 2 holes, 1 over Kw, 1 at 90 degrees
  • Set screw size: 1/4- 20 x 1/4
View our selection of Sprockets offered here at Agri Supply®
