40 Lbs. 33 x 1 Chain Sprocket

Roller Chain Sprocket, 33 Teeth, 40 Lbs.

Item #108112
Write a Review

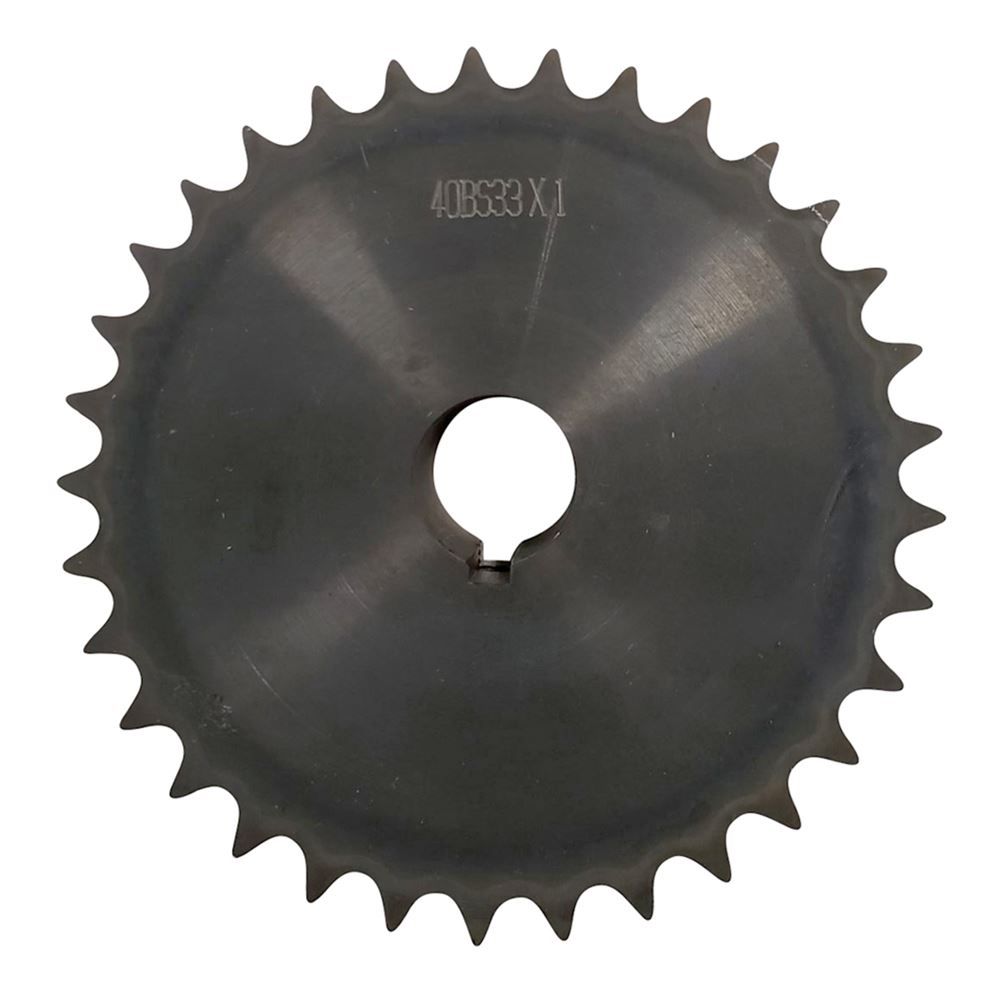

The roller chain sprocket has 33 teeth and is made for farm machinery or utility equipment that is chain driven. To get the best out of this farm equipment, it is recommended to replace worn or damaged chain sockets. Replacing worn out chain sprockets will prevent any complications occurring with the motion of the device. This chain sprocket is constructed from steel with 33 teeth and requires a size 40 roller chain.
100% Satisfaction Guaranteed
Product Overview

Maintain chain driven machinery with the help of a new roller sprocket. This steel constructed sprocket wheel has 33 teeth and may use a size 40 roller chain. The sprocket wheel has an outside diameter of 5-27/50 in., with a central round bore running through the sprocket wheel. The bore measures 1 in. W and 1 in. L. For an easy installation, there are 2 screw holes with 1 located over Kw and the other at 90 degrees, with a set screw size of 1/4- 20 x 1/4. There are a variety of other sized chain sprockets available.

Specifications
  • Sprocket
  • Construction: Steel
  • Induction hardened teeth: 33
  • Round bore
  • Keyway: 1/4 in., x 1/8 in.,
  • Bore: 1 in.,
  • Bore length: 1 in.,
  • Outside diameter: 5-27/50 in.,
  • Chain size: 40
  • Screw location: 2 holes, 1 over Kw, 1 at 90 degrees
  • Set screw size: 1/4- 20 x 1/4
