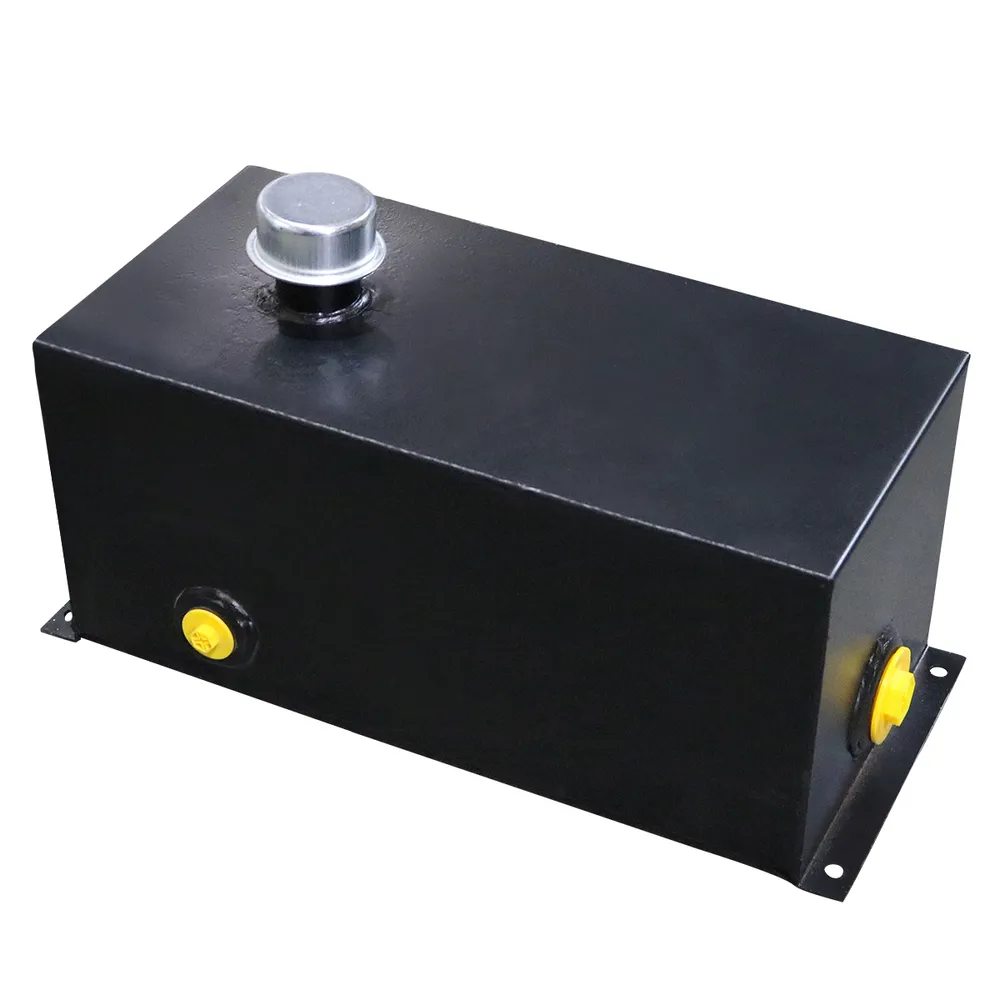

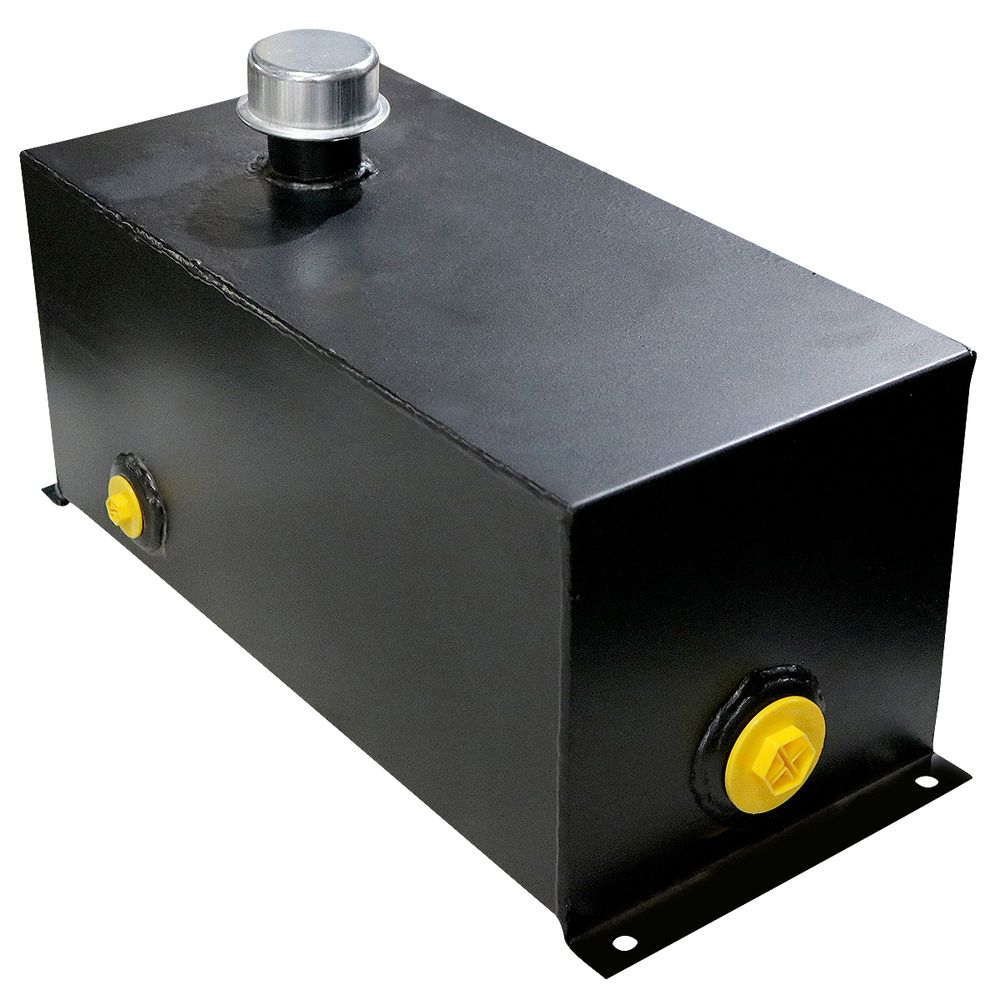

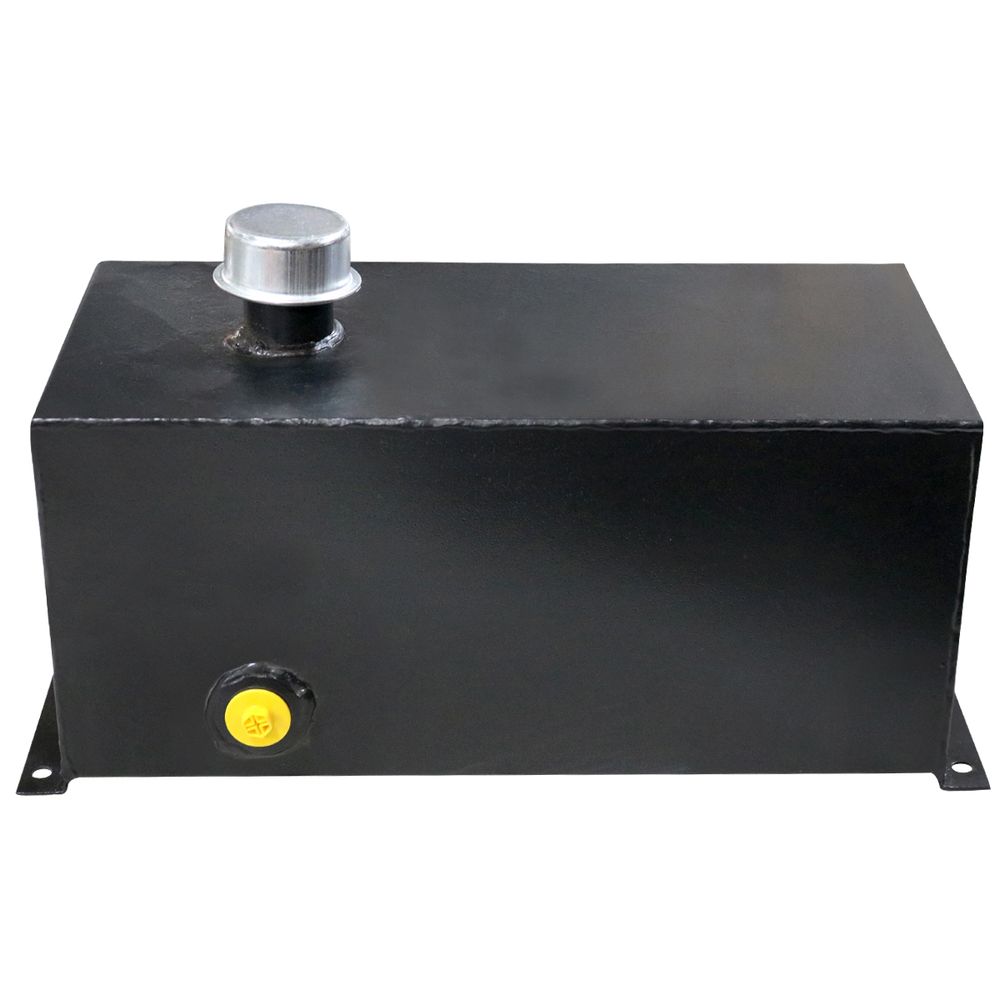

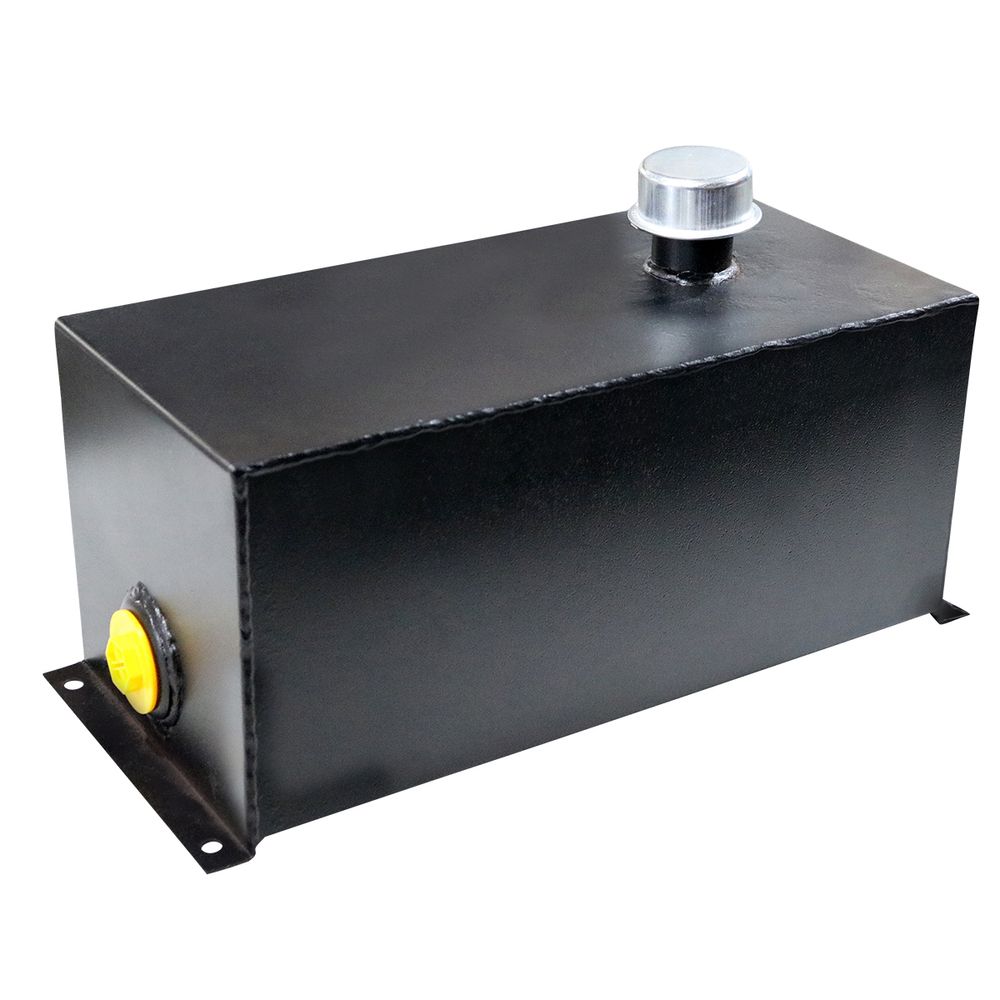

5 Gallon Hydraulic Reservoir Tank

This 5 gallon hydraulic reservoir is constructed of sturdy 12 gauge steel that is black powder coated for protection. This tank has 1-1/8" wide mounting flanges with (4) 3/8" mounting holes to secure in your location. This item includes a clip-on style breather cap as well as 3/4" NPT return port and a 1-1/2" NPT suction port.

Specifications

• 5 gallon hydraulic reservoir tank
• Includes clip-on style breather cap
• Measurements of tank not including flanges or height with breather cap
• Height: 8-3/8"
• Length: 17-5/8"
• Width: 8-3/4"
• Measurements do include flanges & breather cap
• Height from bottom to top of breather cap: 11"
• Length: 19-7/8"
• Width: 8-3/4"
• Sturdy 12 gauge steel welded construction with black powder finish
• 1-1/2" NPT suction port and 3/4" NPT return port
• 3/8" diameter mounting flange holes measure 19" x 7-1/4" center to center
• Color: black
• For replacement cap, use #104249A
