AJ80107#16389 Aj8 (55ol) 1-3/8-21 Spl X
AJ8 (55OL) 1-3/8 21-Spline x 1-3/8 21-Spline with Conical Bolt

AJ8 (55"OL) 1-3/8" 21-Spline x 1-3/8" 21-Spline with Conical Bolt

Item #109800A
Write a Review

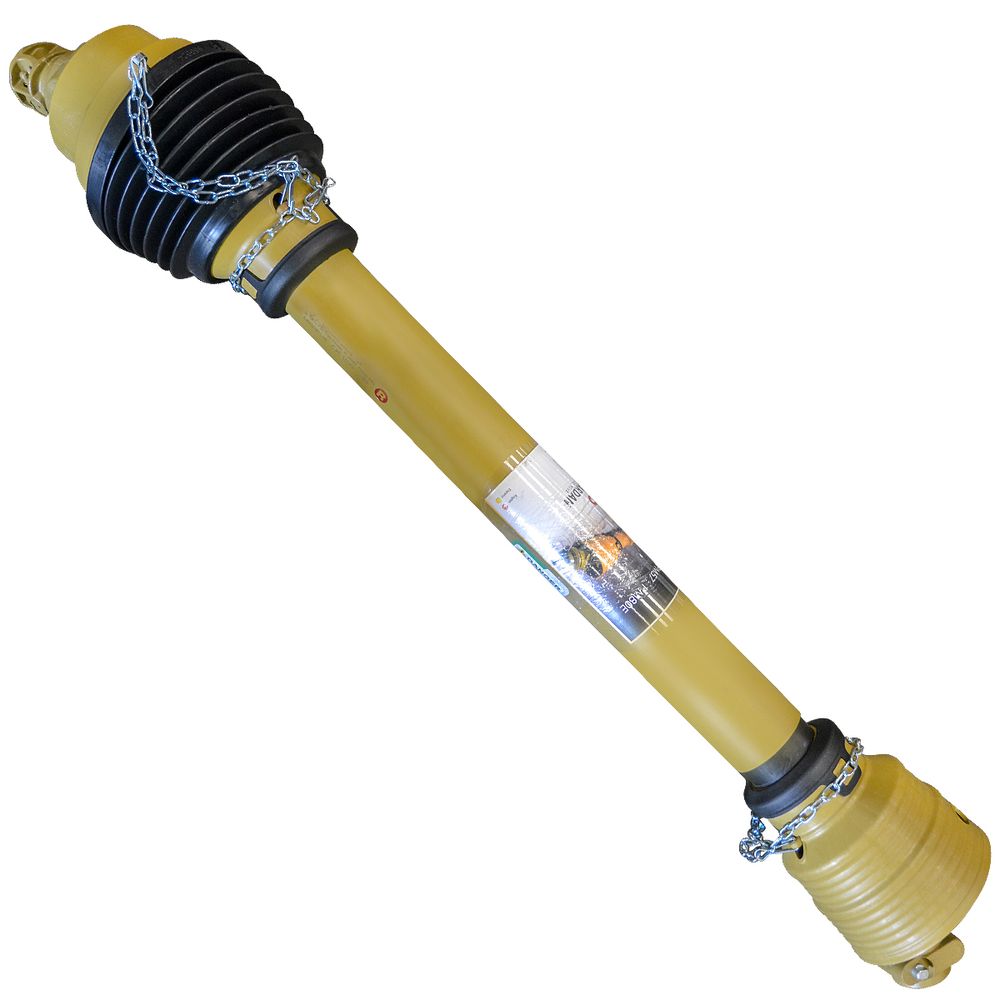

This Eurocardan PTO shaft measures 1-3/8-inch 21 spline x 1-3/8-inch 21 spline and is 55-inch overall closed length.
Due to product size and/or weight, this product ships via Motor Freight Truck only. Liftgate service may not be available. Please be prepared to remove large items from the truck.
100% Satisfaction Guaranteed
Product Overview

Specifications

  • Eurocardan
  • CV8 1-3/8" 21 Spline x 1-3/8" 21 Spline PTO Shaft
  • Part Number: AJ80107#16389
  • 55" overall collapsed length
  • 91 HP at 540 RPM
  • 145 HP at 1000 RPM
  • Series 8

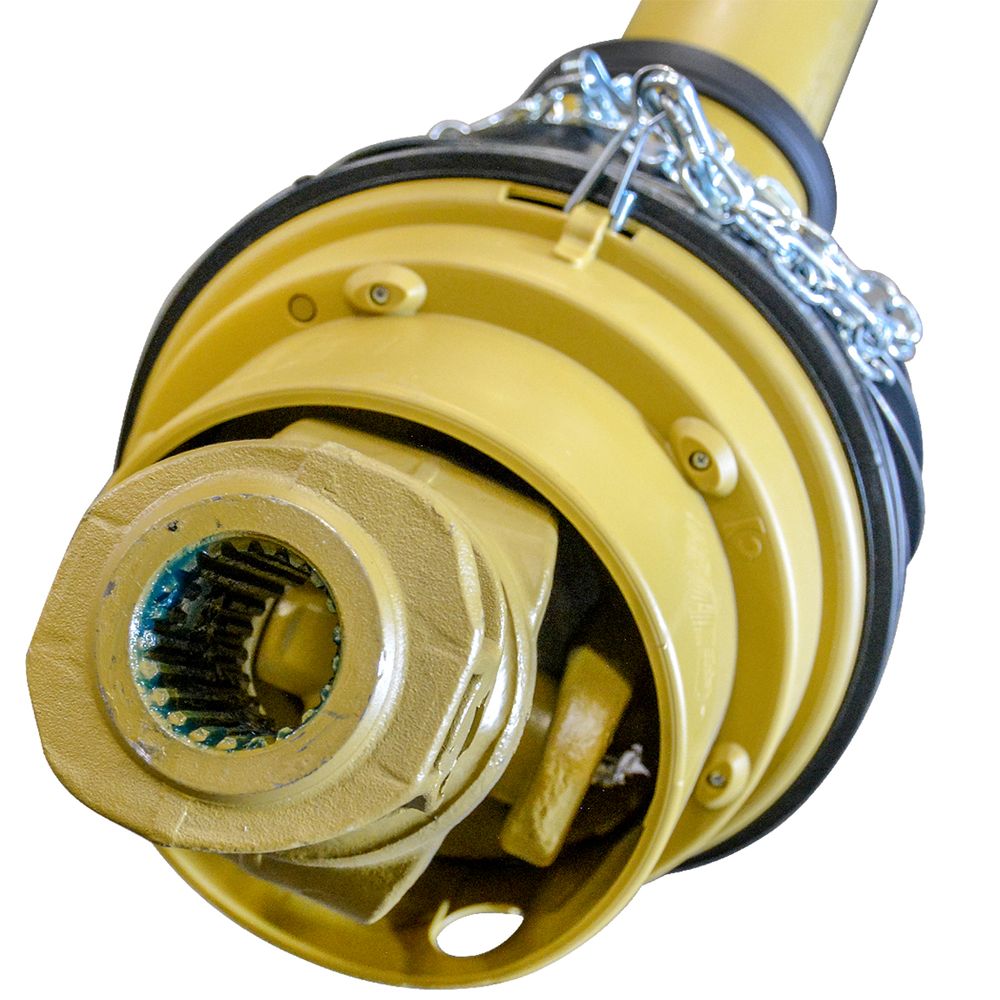

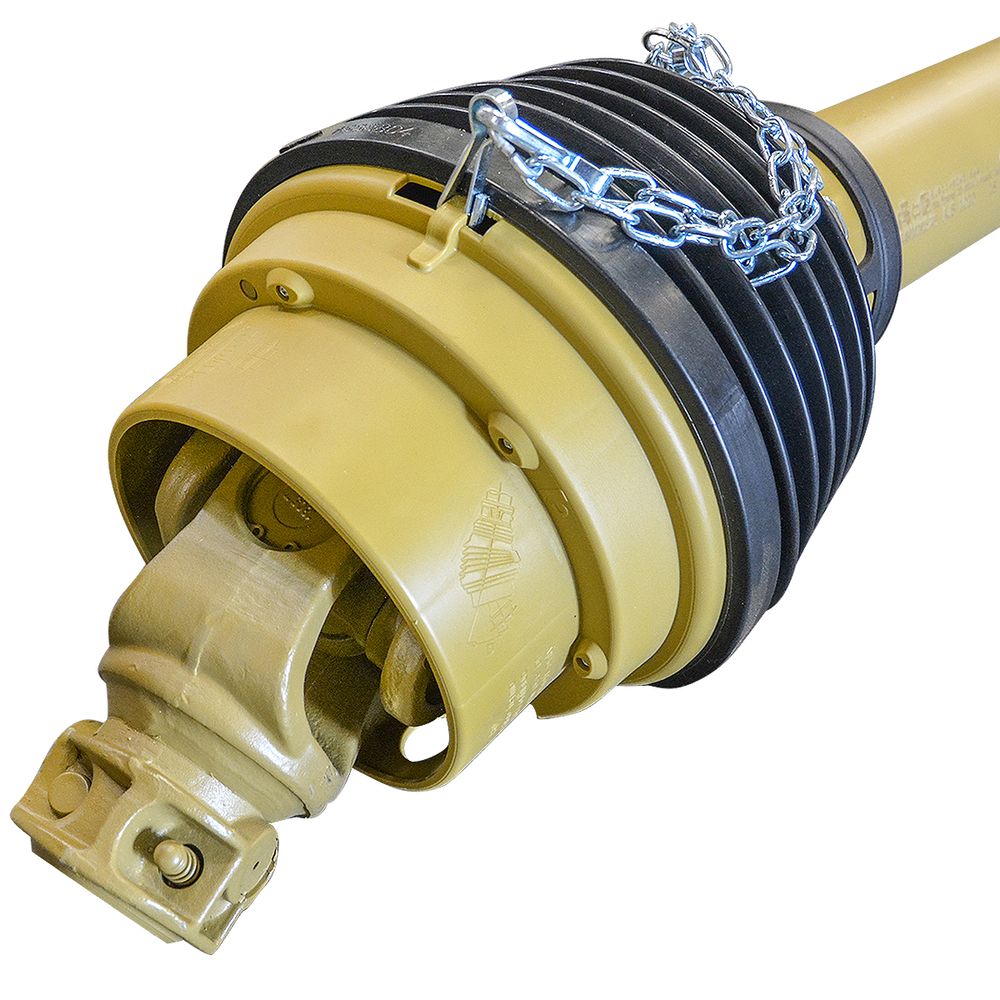

  • Tractor end: 80° CV with 1-3/8" 21 spline MPC
  • Implement end: 1-3/8" 21 spline conical bolt
  • Type: ME81020CV-SPL
  • Safe extended length: 75.5"
  • HP to RPM ratio (540 RPM): 92
  • HP to RPM ratio (1000 RPM): 140
  • For push pin use ASC # 31375

Check out our selection of PTO Shaft Assemblies

Slip Clutch Implement End Yoke

Assembly DescriptionSeries SizeLength OverallI.E. = Implement End T.E. = Tractor End
AJ8855" 1 3/8-21 / 1 3/8-21
