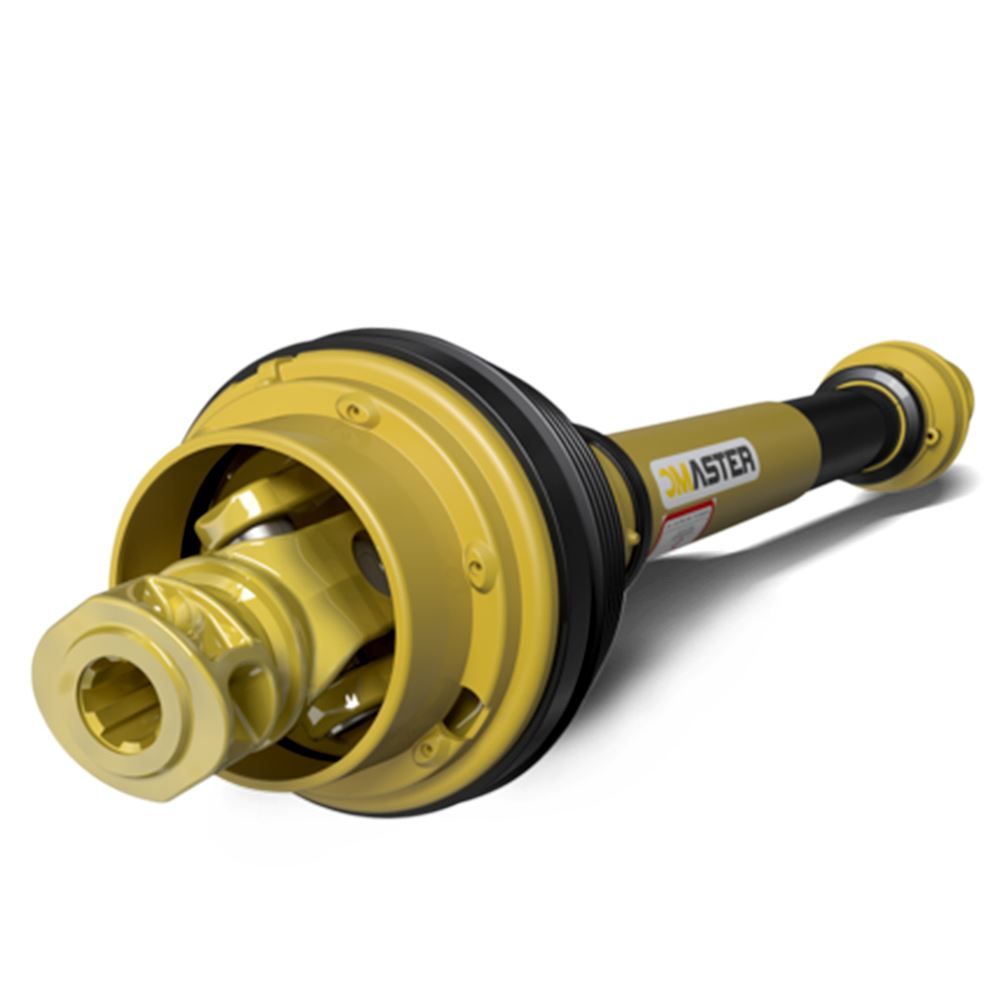

AJ8 (55"OL) 1-3/8" 21-Spline x 1-3/4" 20-Spline PTO Shaft

Specifications

• Eurocardan
• CV8 1-3/8 in. 21 Spline x 1-3/4 in. 20 Spline PTO Shaft
• 55 in. overall collapsed length
• 91 HP at 540 RPM
• 145 HP at 1000 RPM
• Series 8
• Tractor end: 80° CV with 1-3/8 in. 21 spline MPC
• Implement end: 1-3/4" 20 spline interfering bolt
• Type: ME81020CV-SPL
• Safe extended length: 75.51 in.
• HP to RPM ratio (540 RPM): 92
• HP to RPM ratio (1000 RPM): 140
• For a replacement cross on the tractor end of the shaft, use #112298
• For a replacement cross on the implement end of the shaft, use #32194
• For wide-angle protection use ASC 56666
• For the shield use ASC 65773
• For push pin use ASC # 31375
