AJ8 55" OAL 1-3/8" 6 spline X 1-3/8" 21 spline W/ Conical Bolt

Item #135420
Write a Review

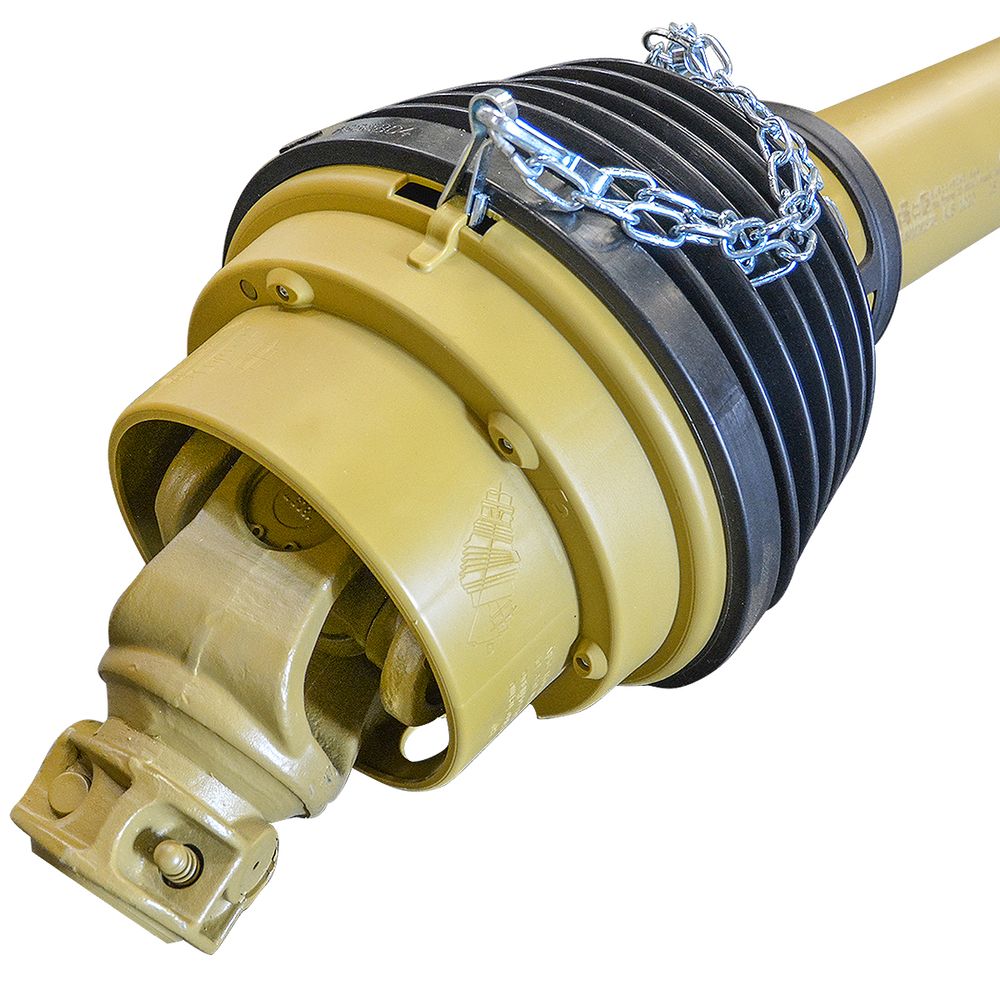

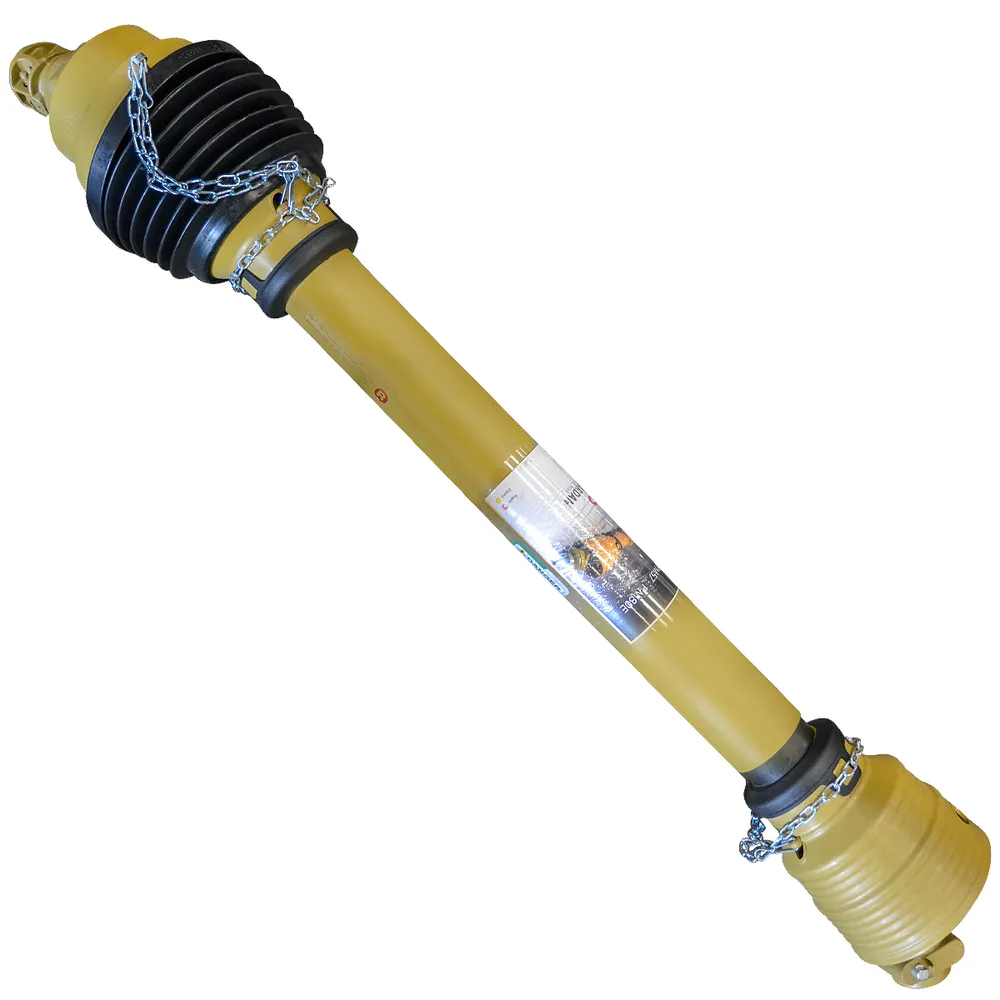

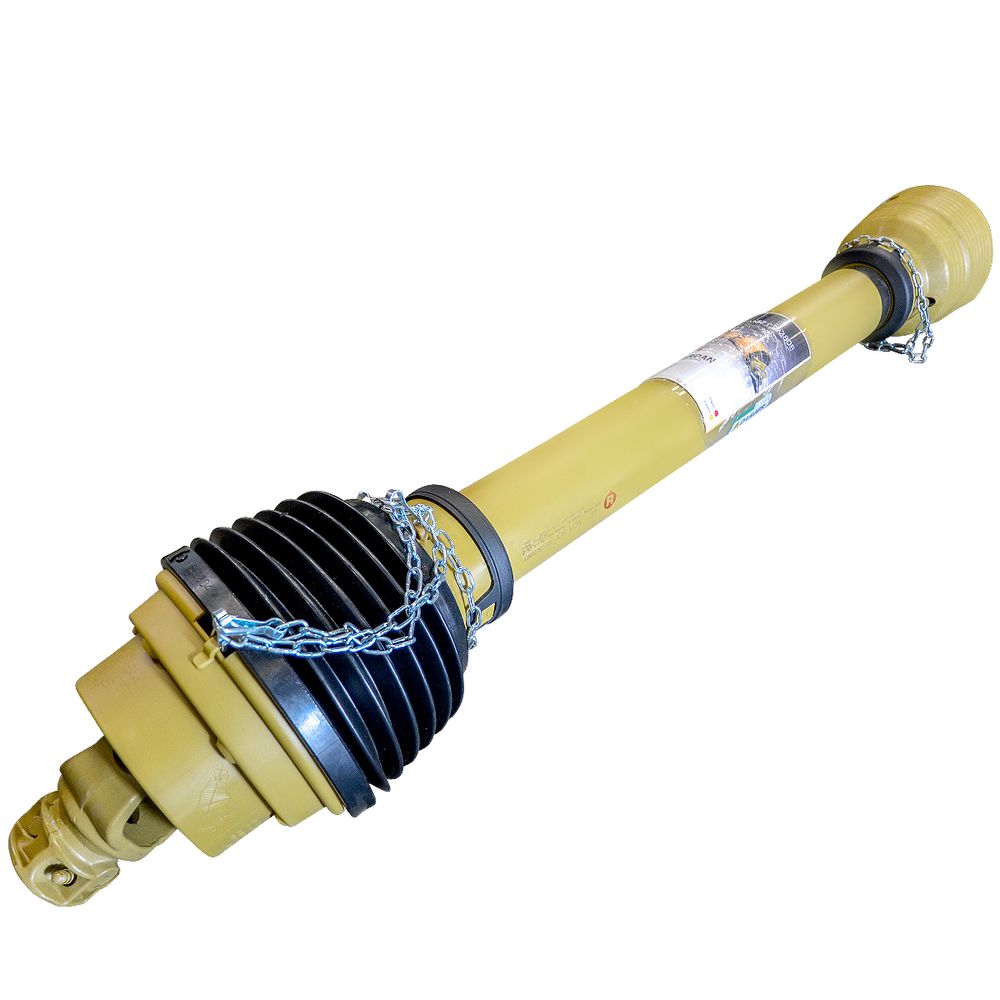

This Eurocardan PTO shaft measures 1-3/8" 6 spline x 1-3/8" 21 spline and is 55" overall closed length.
Due to product size and/or weight, this product ships via Motor Freight Truck only.
100% Satisfaction Guaranteed
Product Overview

Specifications:

  • Eurocardan
  • CV8 1-3/8" 6 Spline x 1-3/8" 21 Spline PTO Shaft
  • Part Number: AJ80101#115189
  • 55" overall collapsed length
  • 91 HP at 540 RPM
  • 145 HP at 1000 RPM
  • Series 8
  • Tractor end: 80° CV with 1-3/8" 6 spline MPC
  • Implement end: 1-3/8" 21 spline conical bolt
  • Type: ME81020CV-SPL
  • Safe extended length: 75.5"
  • HP to RPM ratio (540 RPM): 92
  • HP to RPM ratio (1000 RPM): 140
  • For push pin use ASC # 31375
