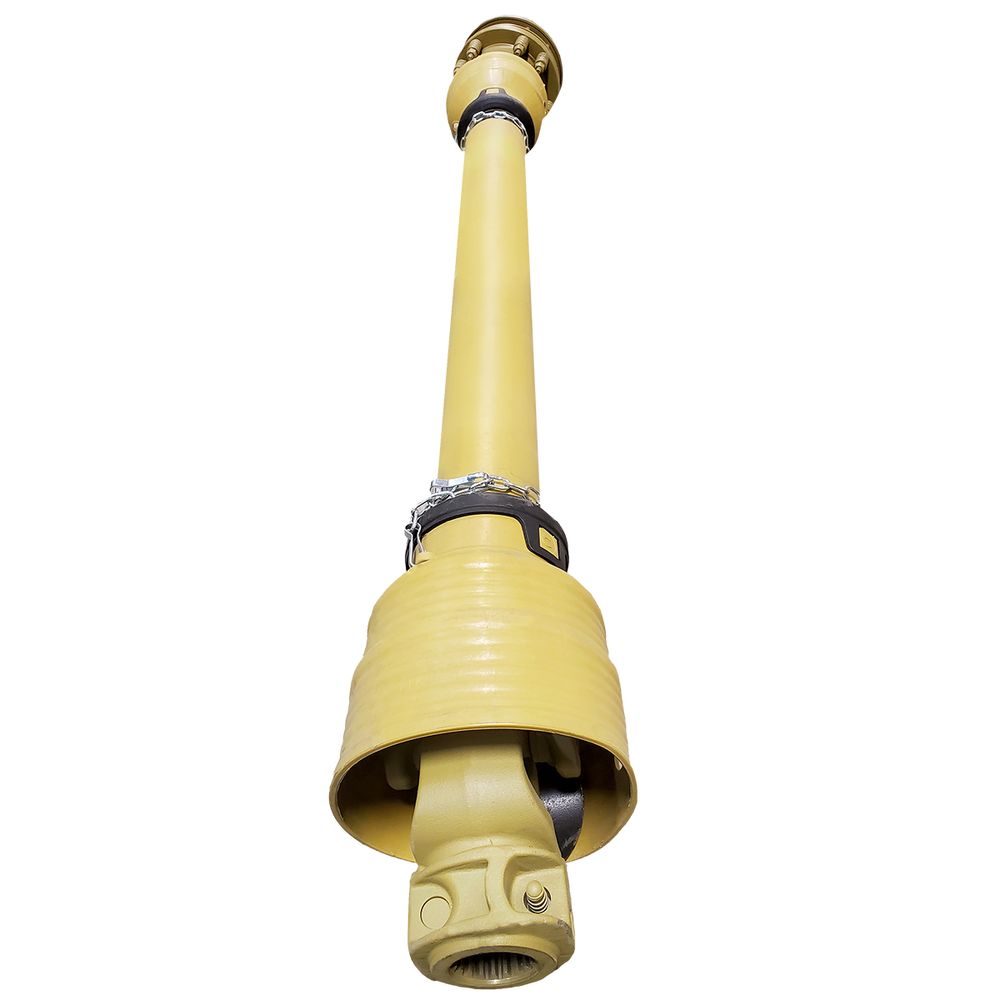

AX8-1210 W/ FD4 Slip Clutch 8212831 PTO Shaft by Eurocardan
Item #47286
This number 8 series PTO shaft fits different ag applications, including a Dondi Ditcher.
Product Overview
Specifications
- To fit Dondi Ditcher and other applications
- Part Number: AX81210FD4
- Made by Eurocardan
- AX series 8 pto shaft - 60" overall length

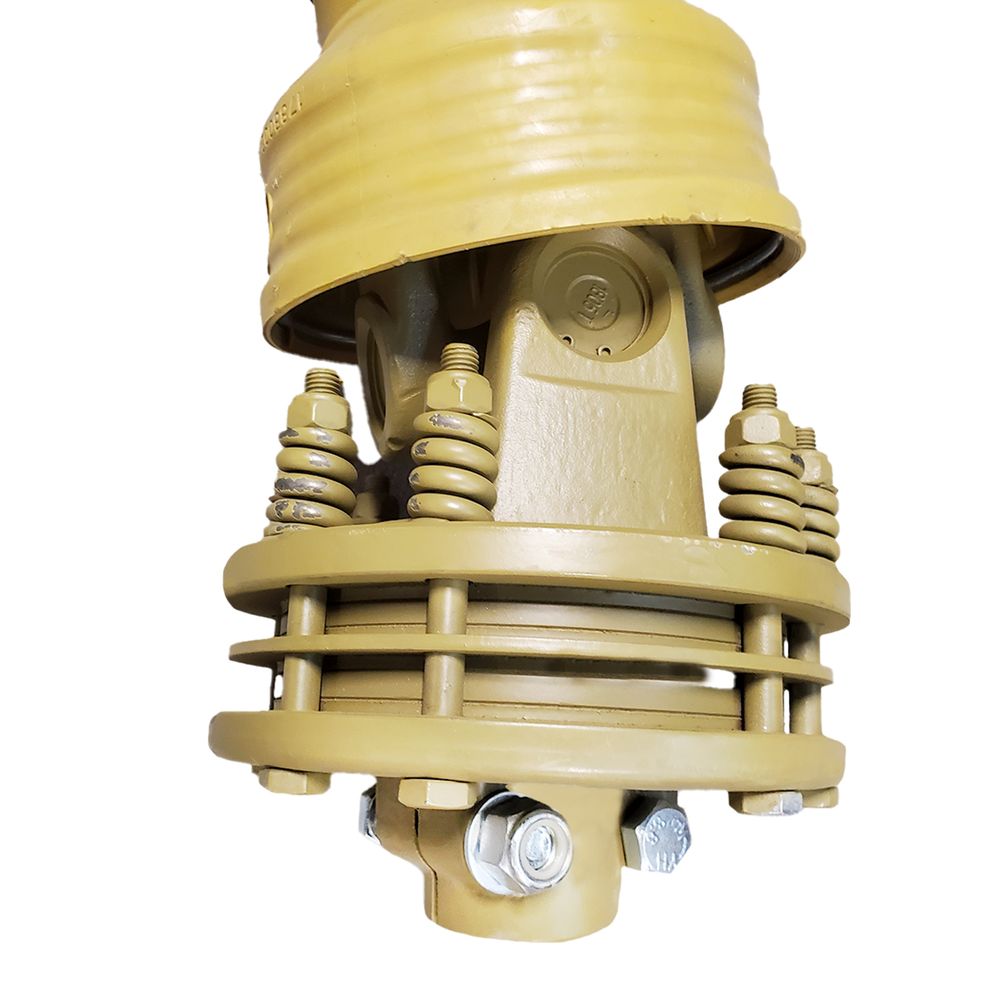

- Has FD4 slip clutch on the implement end
- 60" OL closed max working length 85"
- 1 3/4" x 6 spline on the implement end & 1 3/4" x 20 spline on the tractor end - push button style

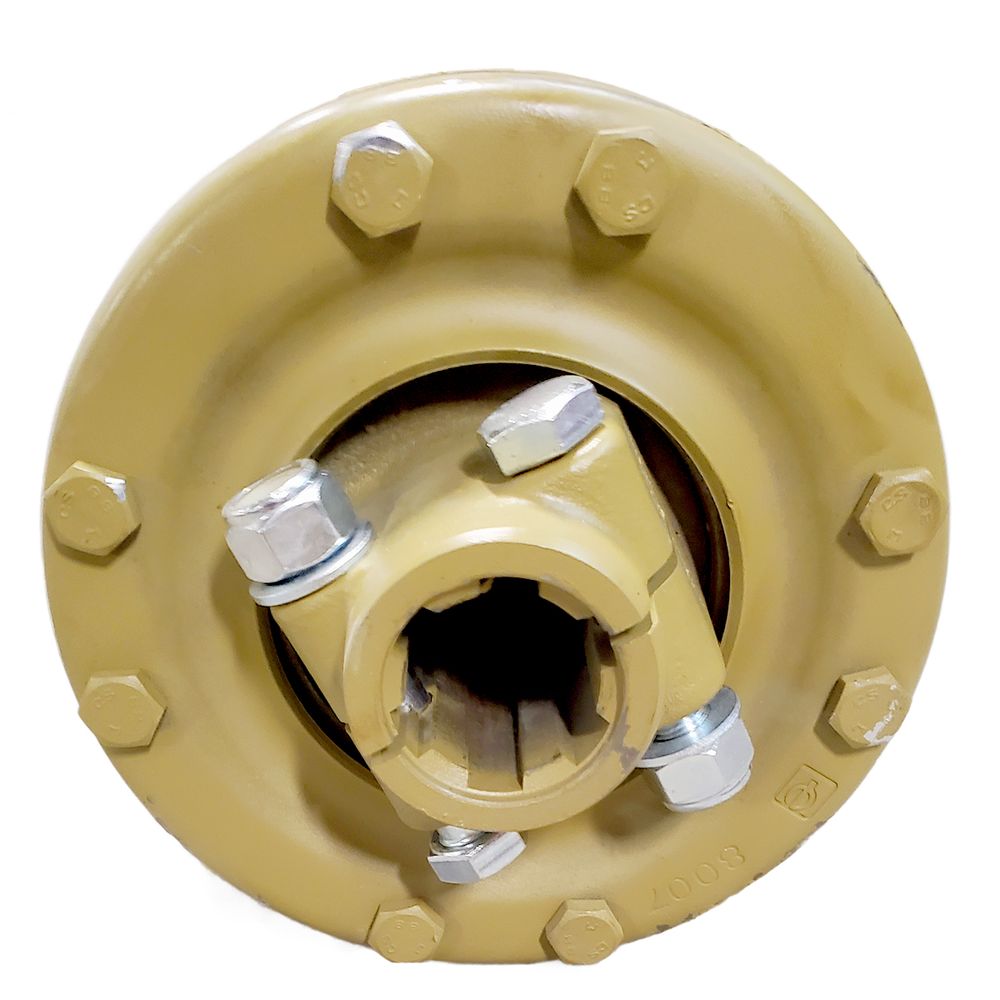

Slip Clutch Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX81210FD4 | 8 | 60" | FD4 slip clutch 1 3/4-6 I.E. / 1 3/4-20 QD T.E. |
