8254174 AX4 480MM/19
Item #34241

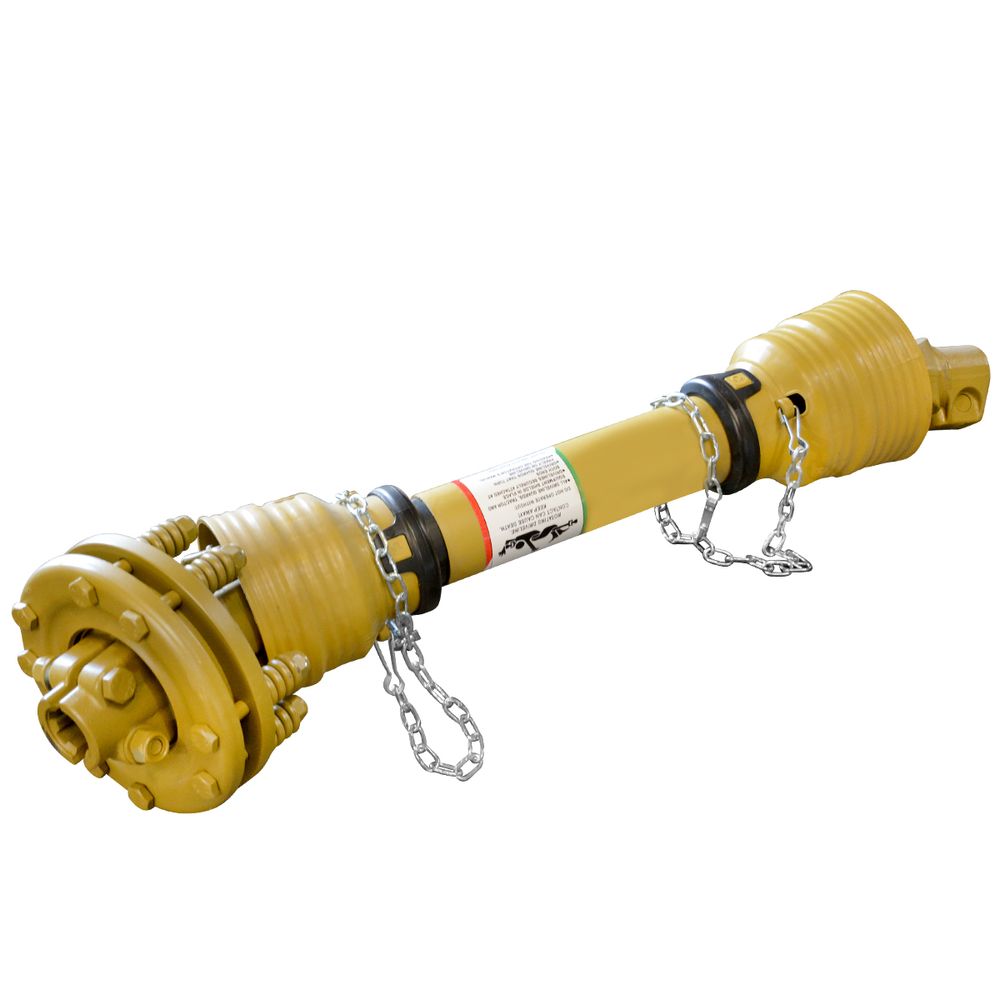

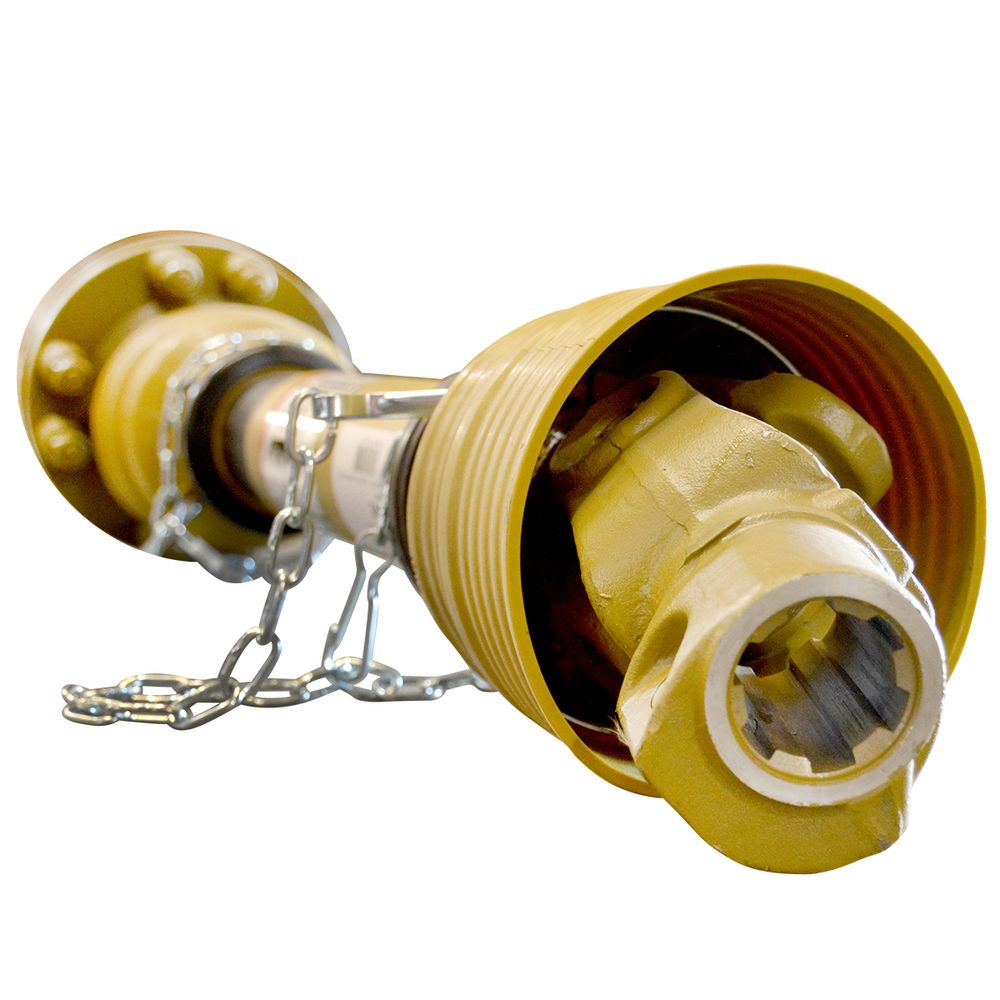

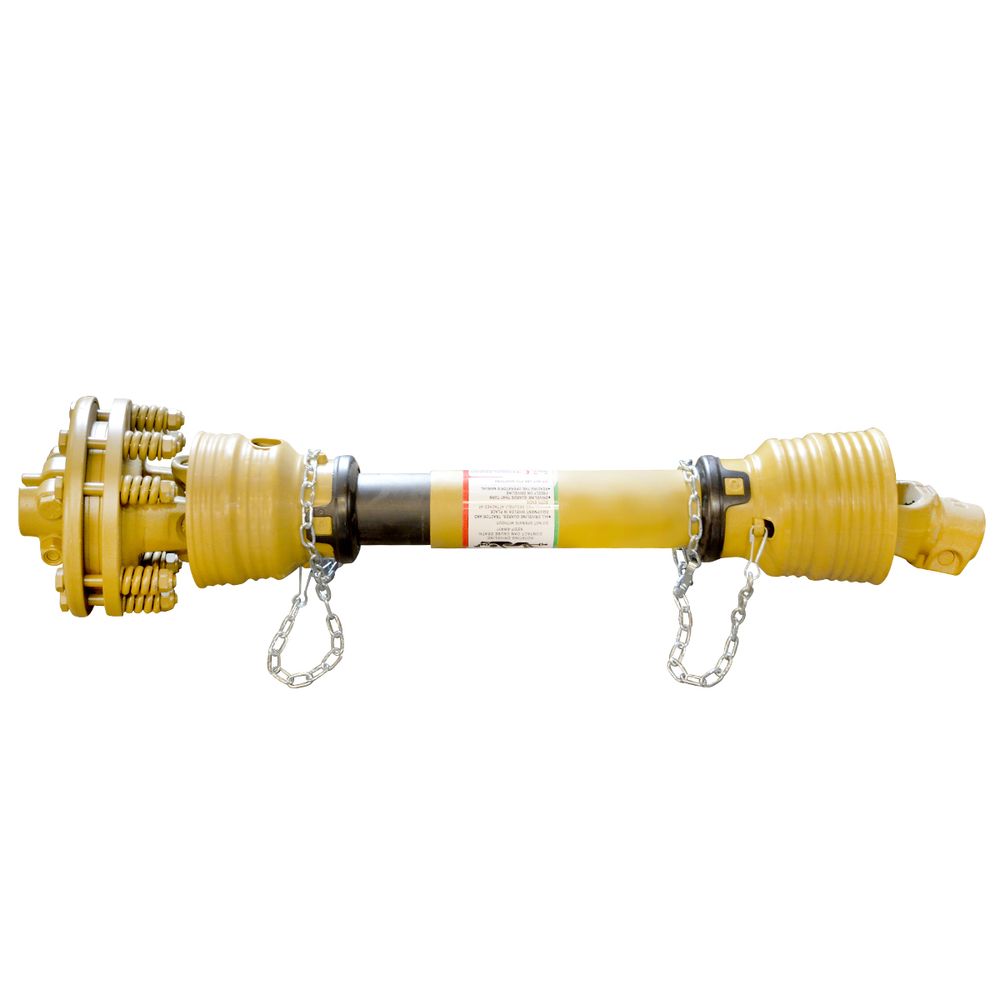

8254174 AX4 480MM/19" 1 3/8 QRSPL X 1 3
Product Overview
Specifications- Made by Eurocardan
- PTO Shaft Series 4
- PTO Shaft can be used on Small Tillers

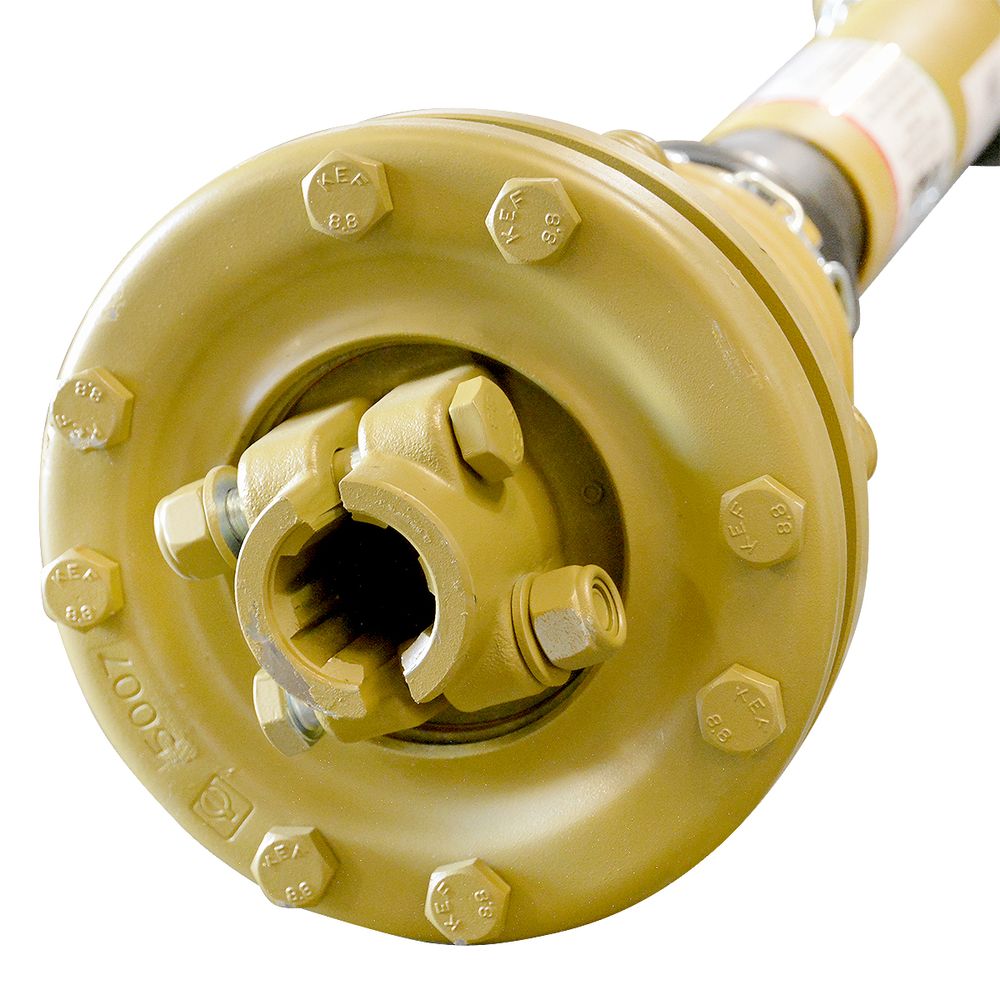

- Implement End: FD1 Slip Clutch w/1-3/8"-6 Spline
- Tractor End: 1-3/8"-6 Spline
- 20.7" Cross-to-Cross measurement closed
- Closed length: 28.7"
- 35 HP at 540 RPM
- 54 HP at 1000 RPM
- Safe extended length: 34.6"
Slip Clutch Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX4480FD1A-SC/QR | 4 | 28.7" | FD1 slip clutch 1 3/8-6 I.E. / 1 3/8-6 QR yoke T.E. |
