Ax1 (28ol) 1-3/8-6 Spl X 5/8

AX1 (28"OL) 1-3/8"-6 SPL X 5/8"

Item #51442A

AX1 (28"OL) 1-3/8"-6 SPL X 5/8"

Product Overview

Specifications

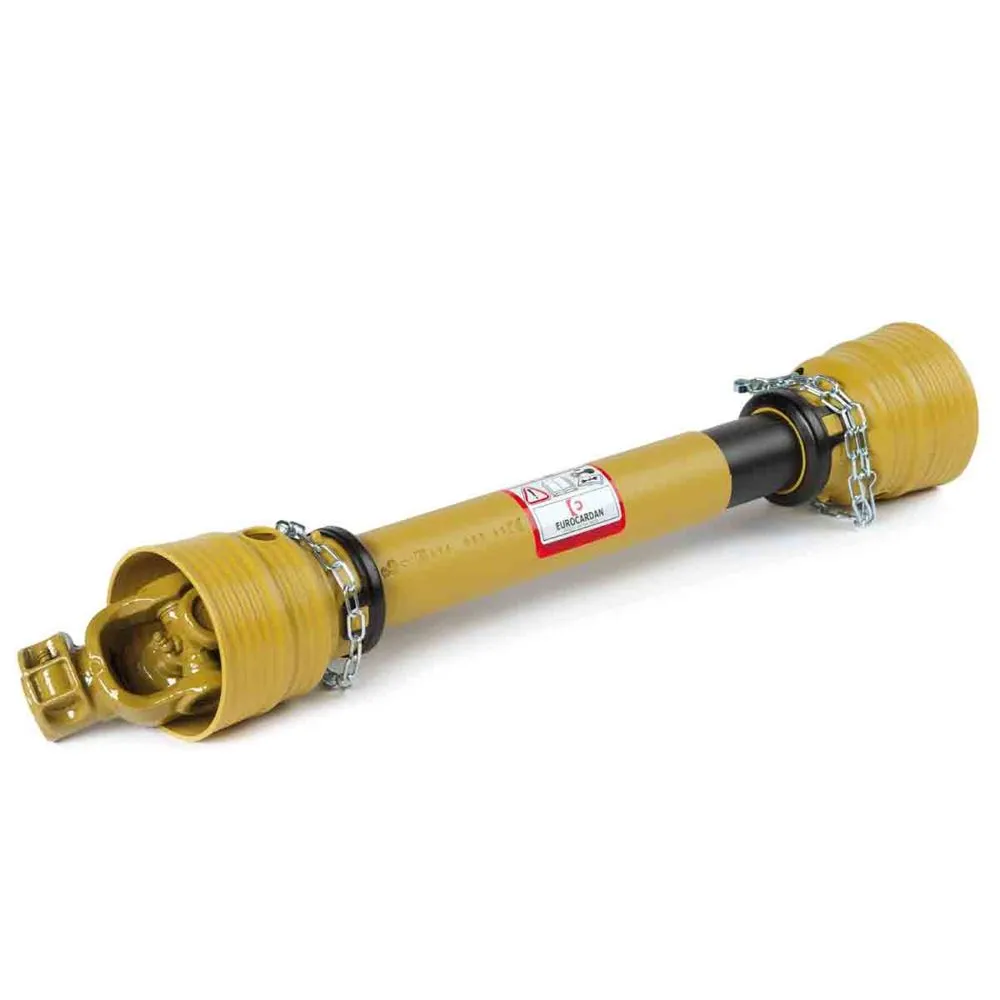

PTO Shaft
Part Number: AX15000-0077
Made by Eurocardan
TX1 series - 1 3/8" x 6 spline push button style tractor end yoke w/a 5/8" smooth bore w/keyway and set screw implement end
Safe extended length: 37.9"
27.8" overall length closed up
16 HP at 540 RPM
24 HP at 1000 RPM

Smooth Bore & Shear Pin Implement End Yoke

Assembly Description	Series Size	Length Overall	Description I.E. = Implement End T.E. = Tractor End
AX15000-0077 (5/8")	1	28"	5/8" smooth bore w/keyway / set screw / 1 3/8-6 T.E.
