Ax4 (35.8ol) 1-3/8-6 Spl X

AX4 (35.8"OL) 1-3/8"-6 SPL X 1-3/8 Smooth

Item #35732A
Write a Review

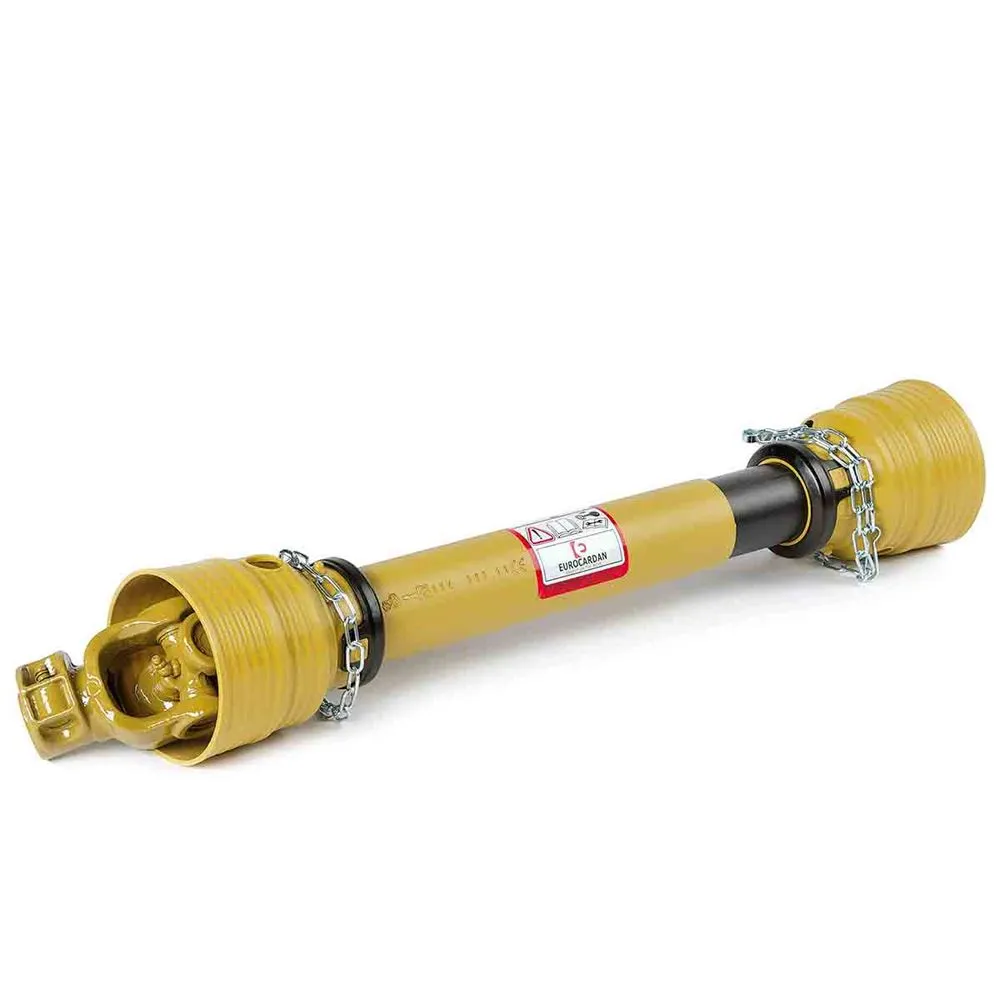

This Eurocardan series 4 PTO shaft is made to fit a 5-foot lift cutter and has a safe extended length of 49.6 inches and a collapsed length of 35.8 inches.
100% Satisfaction Guaranteed
Product Overview

Specifications

  • Eurocardan
  • This item is an alternate to #89803 - Series 4 PTO Shaft
  • Part Number: AX45000-0182
  • "To Fit" 5' Lift Cutter
  • Series 4
  • 1-3/8 Spl x 1-3/8 Smooth W/1/2" Shear Pin
  • Extended length: 49.6"
  • Collapsed length: 35.8"
  • 35 HP at 540 RPM
  • 54 HP at 1000 RPM
  • Max HP 540/1000 - 47/74
  • To fit some J-Bar Rotary Mowers

Smooth Bore & Shear Pin Implement End Yoke

Assembly DescriptionSeries SizeLength OverallDescription I.E. = Implement End T.E. = Tractor End
AX4435.8"1 3/8" smooth yoke w/ 1/2" shear pin hole / 1 3/8-6 T.E.
