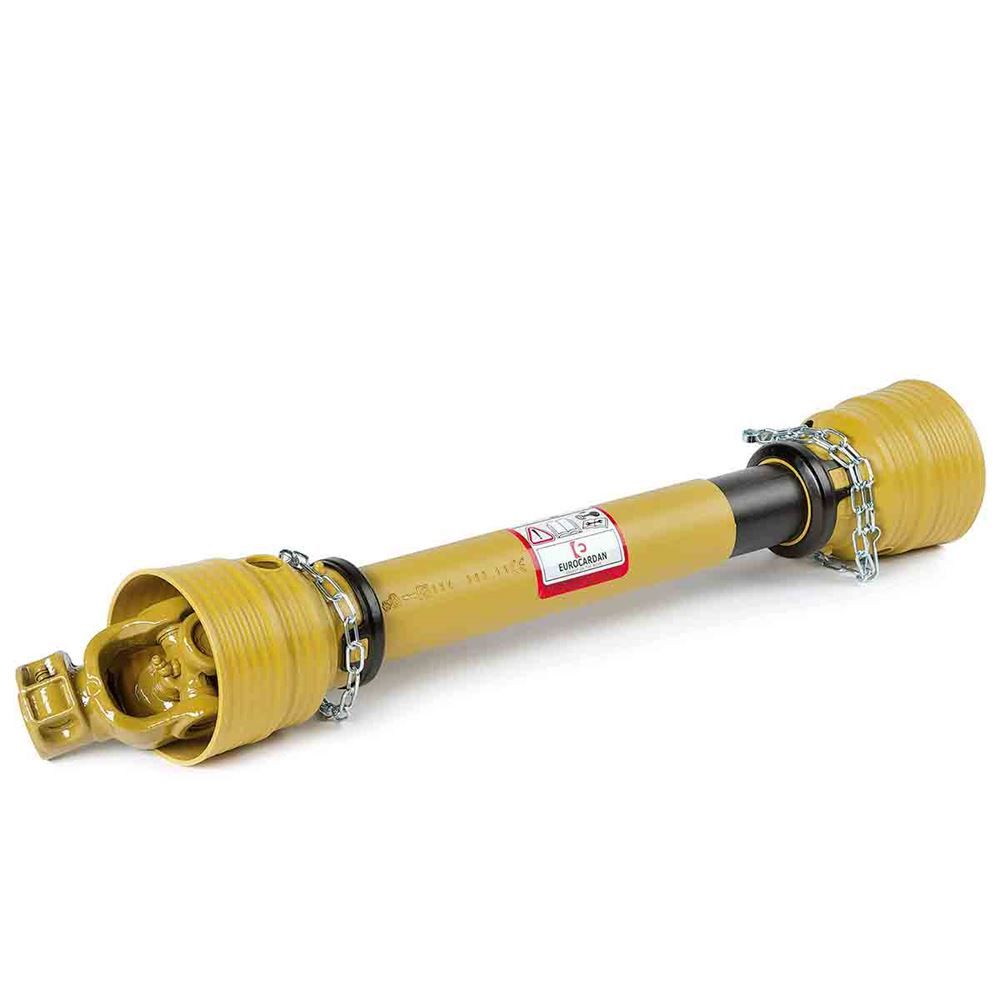

AX4 (38"OL) 1-3/8"-6 SPL X 1-1/8" Round PTO Shaft

Item #54717A
AX4 (38"OL) 1-3/8"-6 SPL X 1-1/8" Round
Product Overview

Specifications

  • Made by Eurocardan
  • AX4 series PTO shaft w/1 1/8" round bore implement end yoke & 1 3/8" x 6 spline tractor end yoke
  • Extended length: 53"
  • Collapsed length: 38"
  • 35 HP at 540 RPM
  • 54 HP at 1000 RPM
  • Use ASC # 69285 for replacement implement end yoke

Smooth Bore & Shear Pin Implement End Yoke

Assembly DescriptionSeries SizeLength OverallDescription I.E. = Implement End T.E. = Tractor End
AX4438"1 1/8" smooth bore w/keyway / set screws / 1 3/8-6 T.E.
