AX4 (42.5"OL) 1-3/8"-6 SPL X 1-3/8" Smooth
Item #35735A

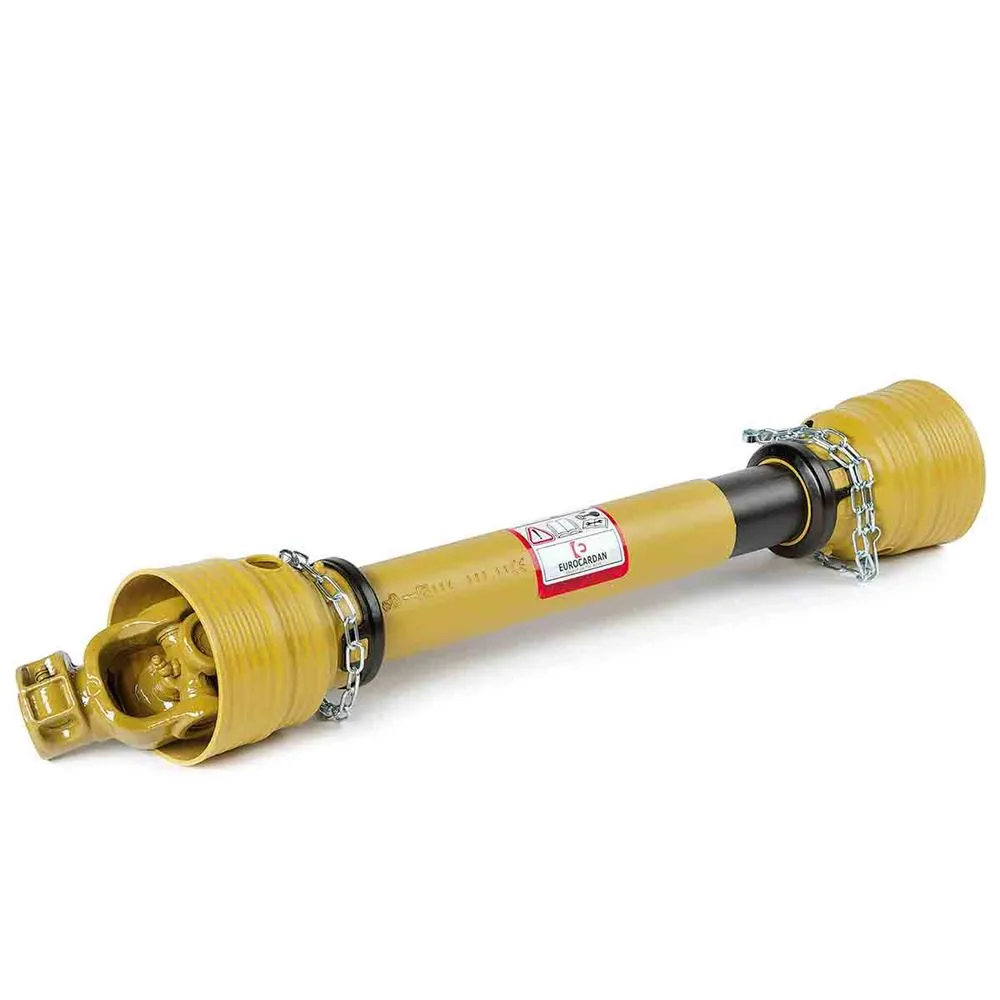

This series 4 PTO shaft by Eurocardan ® is made to fit a 6 ft. lift mower. The power take-off shaft is 1-3/8 in. 6-spline on the tractor end and 1-3/8 in. smooth on the implement end.
Product Overview
This Series 4 PTO shaft has a 1-3/8" 6-spline tractor end and 1-3/8" smooth round yoke. The PTO shaft or driveline shaft is 42.5" fully collapsed from end yoke to end yoke. Max safe extend length is 60.6". This PTO shaft has a rating of 35 HP at 540 RPM and 55 HP at 1000 RPM for series 4. Made by Eurocardan, a world class leader in PTOs, the power take-off shaft is made to fit a 6 ft. lift cutter.
Specifications
- Eurocardan Series 4 PTO
- Part Number: AX45000-0185
- 1-3/8" 6-spline tractor end by 1-3/8" smooth round yoke end
- Shear pin hole: 1/2"
- Shear pin yoke held on by snap rings
- Fully collapsed Length: 42.5" from end yoke to end yoke
- Safe extended length: 60.6"
- 35 HP at 540 RPM
- 55 HP at 1000 RPM for series 4
- 1/2" x 3-1/2" grade 2 bolt with lock nut to be used for shear bolt
- Protective covering
- To fit 6 ft. lift mower
Not what you are looking for? Check out the full line of PTO shafts that we carry at Agri Supply ®.
Smooth Bore & Shear Pin Implement End Yoke
| Assembly Description | Series Size | Length Overall | Description I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX4 | 4 | 42.5" | 1 3/8" smooth yoke w/ 1/2" shear pin hole / 1 3/8-6 T.E. |
