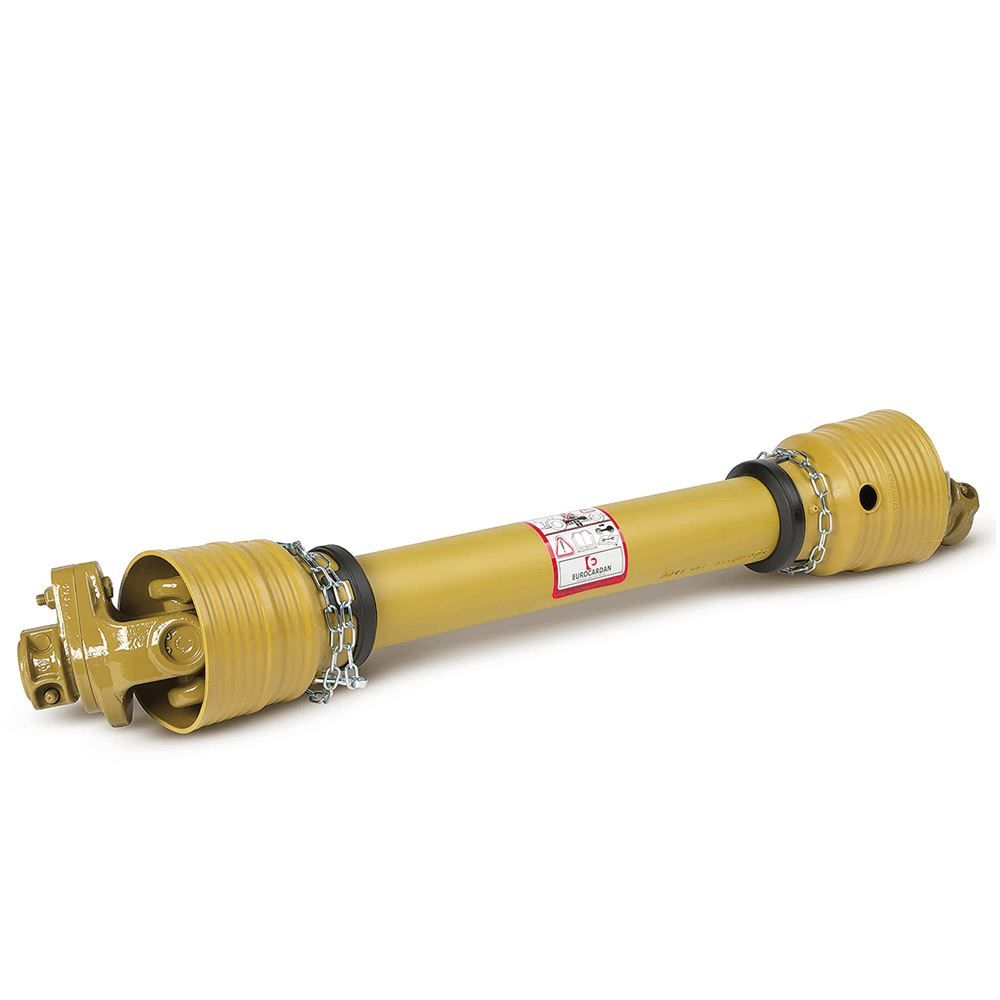

Eurocardan PTO Shaft 1-3/86 SPL X 1-3/8 6-Spline AX4

AX4 (44"OL) 1-3/8"6 SPL X 1-3/8 6-Spline

Item #35836A
Write a Review
This Eurocardan PTO shaft can safely extend 63.7 inches fits a series 4 and has a closed-up length of 44 inches.
100% Satisfaction Guaranteed
Product Overview

Specifications

  • Eurocardan
  • PTO Shaft
  • Part Number: AX46091#16399
  • TX4 910mm PTO shaft - series 4 - 44" long closed up from the center of the universal joint to the center of the other universal joint
  • Safe extended length: 63.7 inches.
  • 35 HP at 540 RPM
  • 54 HP at 1000 RPM
  • has 1 3/8" x 6 spline quick detach (button style) tractor end w/ a series 4 shear pin flange w/1 3/8" x 6 spline implement end

4', 5', 6', 7' Rotary Cutters With Shielding

Assembly DescriptionSeries SizeLength OverallUsed OnI.E. = Implement End T.E. = Tractor End
AX4444"6' Lift CutterShear pin flange 1 3/8-6 SPL / 1 3/8-6 SPL
